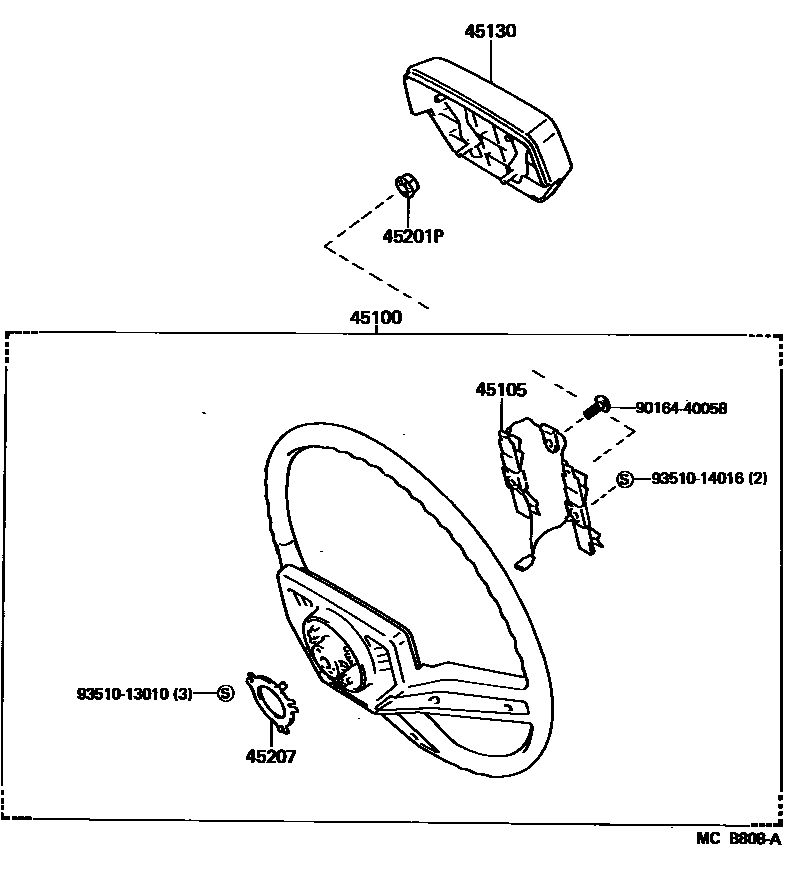

Toyota LAND CRUISER — STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-60120-03iBJ7#,LJ7#,RJ7#..STD,VM198411-199001

3SPOKE,POLYPROPYLENE,GRAY,SHADOW GRAY

sub45100-60120¥28,000

main45100-60120-06iBJ7#,LJ7#,RJ7#..STD,VM198411-199001

3SPOKE,POLYPROPYLENE,BROWN,SEPIA BROWN

sub45100-60120¥28,000

main45100-60130-03iBJ7#,LJ7#,RJ7#..HT198411-199001

2-SPOKE,URETHANE,GRAY,URETHANE,SHADOW GRAY

sub45100-60130¥39,400

main45100-60130-06iBJ7#,LJ7#,RJ7#..HT198411-199001

2-SPOKE,URETHANE,BROWN,URETHANE,SEPIA BROWN

sub45100-60130¥39,400

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-60030iBJ7#,LJ7#,RJ7#..STD,VM¥3,150198411-199001

main45105-60040iBJ7#,LJ7#,RJ7#..HT¥2,100198411-199001

URETHANE

45130BUTTON ASSY, HORN

main45130-60070-03iBJ7#,LJ7#,RJ7#..STD,VM198411-199001

GRAY,SHADOW GRAY

sub45130-60070¥6,100

main45130-60070-06iBJ7#,LJ7#,RJ7#..STD,VM198411-199001

BROWN,SEPIA BROWN

sub45130-60070¥6,100

main45130-60080-03iBJ7#,LJ7#,RJ7#..HT198411-199001

GRAY,URETHANE,SHADOW GRAY

sub45130-60080¥6,100

main45130-60080-06iBJ7#,LJ7#,RJ7#..HT198411-199001

BROWN,URETHANE,SEPIA BROWN

sub45130-60080¥6,100

45201PNUT, STEERING WHEEL SET

main90179-12086iBJ7#,LJ7#,RJ7#¥300198411-199001

45207RING, HORN CONTACT

main45176-20030iBJ7#,LJ7#,RJ7#..STD,VM¥620198411-199001

9016440058

main90164-40058¥120

9351013010

main93510-13010¥110

9351014016

main93510-14016¥170

8 parts on this diagram · 2 diagrams in section
