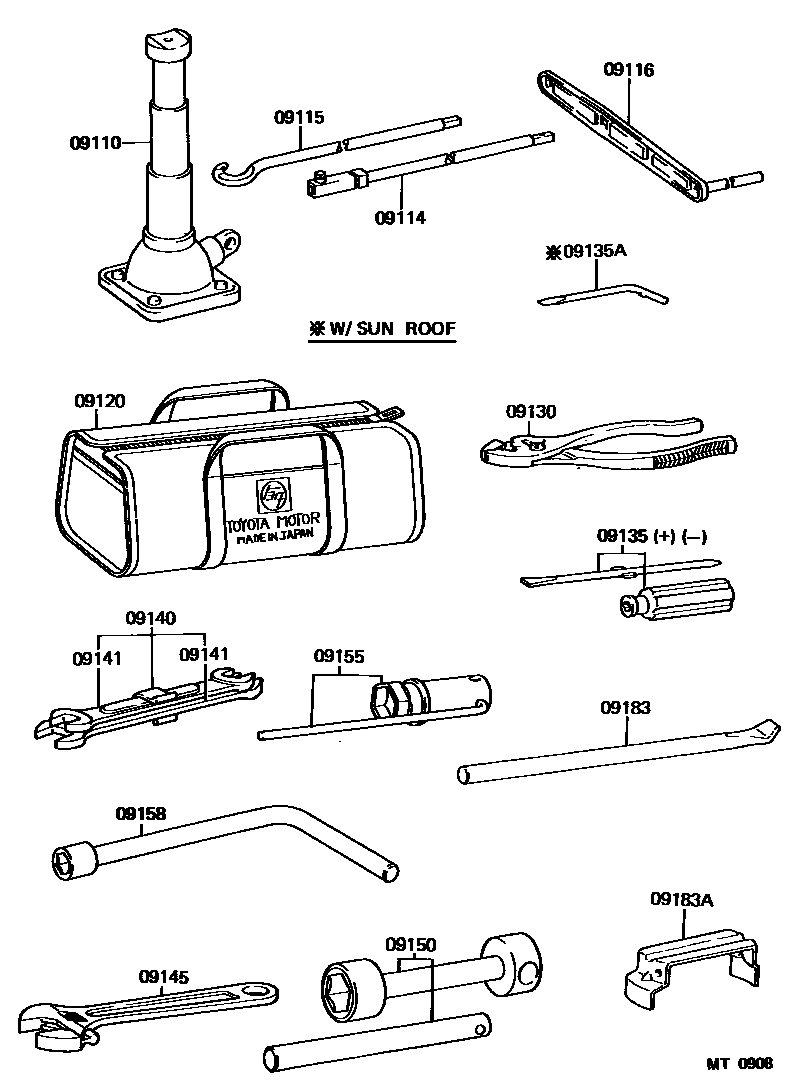

Toyota LAND CRUISER — STANDARD TOOL

09110JACK ASSY

main09111-60050iBJ7#,LJ7#,RJ7#¥5,800198411-199001

sub09110-60060¥5,800

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60030iBJ75¥770198411-199001

sub09114-60032¥810

main09114-60040iBJ70,73,LJ70,RJ70¥450198411-198510

sub09114-60050¥450

main09114-60050iBJ70,71,73,LJ7#,RJ7#¥450198510-199001

sub09114-28010¥450

09115ROD SUB-ASSY, JACK HANDLE

main09115-35040iBJ75¥980198411-199001

main09115-60030iBJ70,71,73,LJ7#,RJ7#¥480198411-199001

09116LEVER, JACK HANDLE

main09116-35041iBJ7#,LJ7#,RJ7#¥500198411-199001

09120BAG, TOOL

main09120-60050iBJ7#,LJ7#,RJ7#¥1,700198411-198703

sub09120-60100¥900

main09120-60100iBJ7#,LJ7#,RJ70¥900198703-199001

sub09120-60102¥1,390

09130PLIERS

main99913-11500iBJ7#,LJ7#,RJ70¥400198703-199001

main99913-12000iBJ7#,LJ7#,RJ7#¥570198411-198703

09135DRIVER, SCREW

main99915-10700iBJ7#,LJ7#,RJ7#¥460198411-199001

09135ABIT, SCREW DRIVER

main09135-00012iBJ70,71,LJ70,RJ70..HT¥240198411-199001

W/SUN ROOF

09140SPANNER SET

main09140-27010iBJ7#,LJ7#,RJ7#198411-198608

09141SPANNER

main99914-10810iBJ7#,LJ7#,RJ70¥240198703-199001

8 X 10,8X10

main99914-11012iBJ7#,LJ7#,RJ7#¥360198411-198703

10 X 12,10X12

main99914-11214iBJ7#,LJ7#,RJ70¥400198703-199001

12 X 14,12X14

main99914-11417iBJ7#,LJ7#,RJ7#¥460198411-198703

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10250iBJ7#,LJ7#,RJ7#¥1,690198411-198608

sub99911-20250¥1,690

main99911-11200iBJ7#,LJ7#,RJ70¥2,100198703-199001

main99911-20250iBJ7#,LJ7#,RJ70¥1,690198608-198703

sub09029-10250

09150WRENCH, HUB NUT BOX

main09150-60010iBJ7#,LJ7#,RJ7#¥1,650198411-199001

09155WRENCH, SPARK PLUG

main09155-26010iRJ7#¥470198411-199001

09158WRENCH, DOOR FRAME

main09158-60020iBJ73,RJ73;LJ70..SOT¥600198411-199001

09183WRENCH, WHEEL CAP

main09183-00030iBJ70,71,73,LJ7#,RJ7#¥600198411-199001

W/FREE WHEEL HUB

09183AREPLACER, WHEEL CAP

main09183-60010iBJ70,71,73,LJ7#,RJ7#¥330198411-199001

W/FREE WHEEL HUB

16 parts on this diagram · 1 diagram in section
