Toyota LAND CRUISER — SHORT BLOCK ASSEMBLY

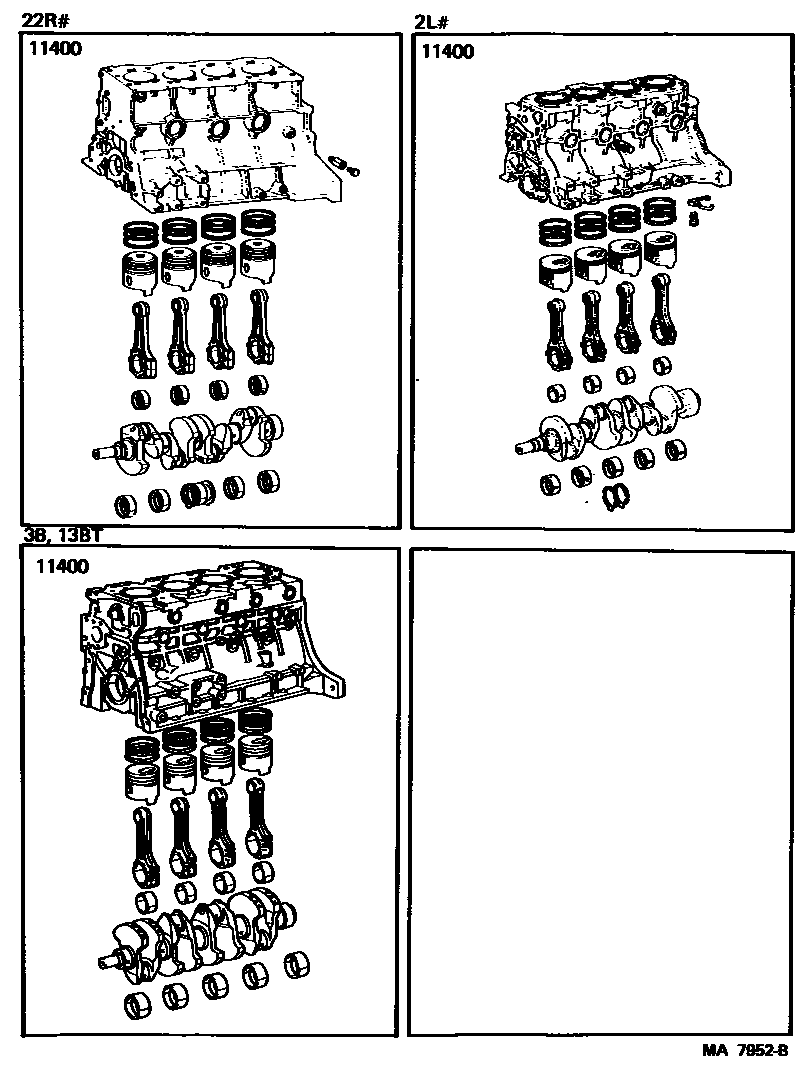

Parts diagram

11400BLOCK ASSY, SHORT

main11400-35040i¥367,000198411-198602

sub11400-35041¥364,000

main11400-35041i¥364,000198602-198608

sub11400-35042¥365,000

main11400-35042i¥365,000198608-198801

sub11400-35043¥365,000

main11400-35043i¥365,000198801-198808

main11400-35090i¥365,000198812-199001

main11400-35100i¥364,000198808-199001

main11400-54042i¥429,000198510-198805

sub11400-54H01¥429,000

sub16027-54021¥6,700

sub16268-54011¥4,270

sub16269-54011¥780

sub11400-54H00¥429,000

sub11400-54H02¥429,000

main11400-54043i¥429,000198805-198807

sub16027-54021¥6,700

sub16268-54011¥4,270

sub16269-54011¥780

sub11400-54044¥430,000

main11400-54044i¥430,000198807-199001

main11400-54061i¥454,000198411-198510

sub11400-54H03¥429,000

sub11400-54H04¥429,000

sub11400-54H05¥429,000

sub31349-26020¥2,210

main11400-58030i¥519,000198510-198808

sub11400-58031¥519,000

sub15403-56050¥4,140

sub15605-56010¥2,470

sub90401-20009¥410

sub90430-18012¥140

sub90430-20018¥90

main11400-58040i¥543,000198411-198808

sub11400-58041¥512,000

sub15403-56050¥4,140

sub15605-56010¥2,470

sub90401-20009¥410

sub90430-18012¥140

sub90430-20018¥90

main11400-58050i¥523,000198808

sub11400-58051¥517,000

main11400-58070i¥511,000198808-199001

1 parts on this diagram · 1 diagram in section
