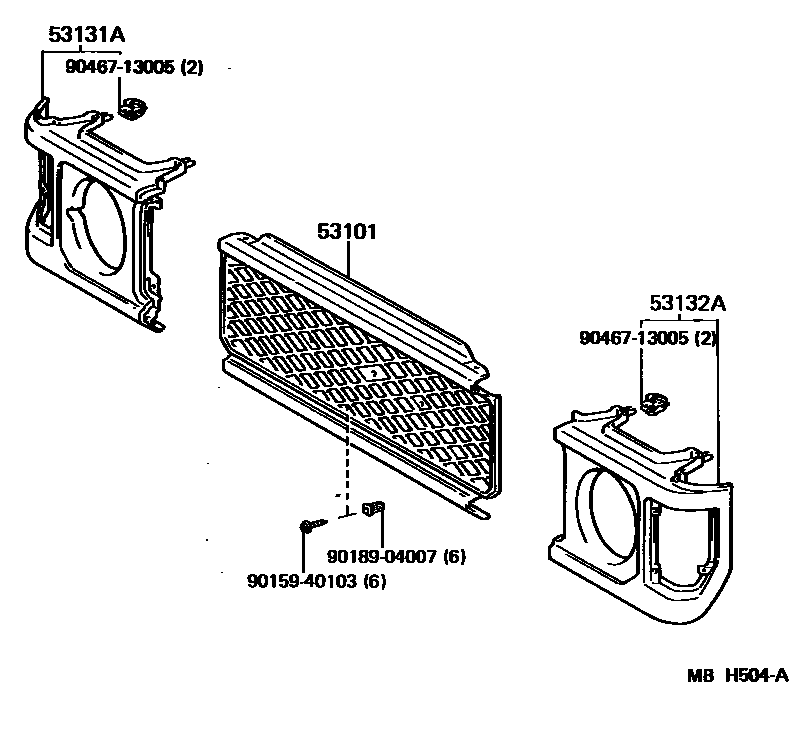

Toyota LAND CRUISER — RADIATOR GRILLE

0001 1 0002 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-90K00iBJ7#¥13,300198411-199001

sub53101-90K01¥15,800

main53101-90K01iBJ7#¥15,800198411-199001

CHROME PLATED

main53101-90K02iLJ7#,RJ7#..LX,STD¥9,900198411-199001

main53101-90K03iLJ7#,RJ7#¥11,800198411-199001

CHROME PLATED

53131ADOOR, HEADLAMP, RH

main53031-90K00iLJ7#,RJ7#..LX,STD¥7,400198411-199001

main53031-90K01iLJ7#,RJ7#¥8,900198411-199001

CHROME PLATED

53132ADOOR, HEADLAMP, LH

main53032-90K00iLJ70..LHD..VX¥7,400198411-199001

main53032-90K01iLJ7#,RJ7#¥8,900198411-199001

CHROME PLATED

9015940103

main90159-40103¥120

9018904007

main90189-04007¥250

9046713005

main90467-13005¥180

6 parts on this diagram · 2 diagrams in section
