Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

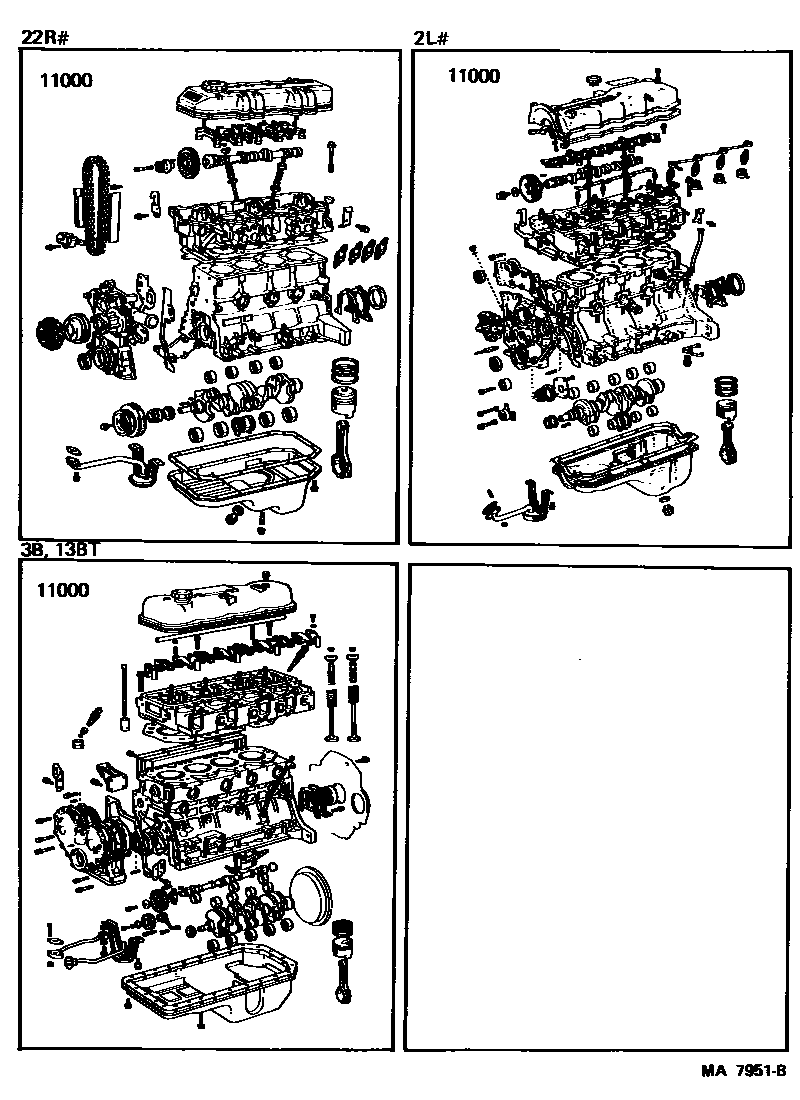

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-35350i¥585,000198411-198602
sub19000-35351¥586,000
main19000-35351i¥586,000198602-198808
sub19000-35600
main19000-35600i198808-199001
main19000-35620i¥585,000198812-199001
main19000-54460i¥685,000198510-198704
sub19000-54461¥685,000
main19000-54461i¥685,000198704-198805
sub13405-54060¥30,400
sub13450-54011¥112,000
sub90105-12094¥330
sub90105-12109¥260
sub19000-54462¥612,000
main19000-54462i¥612,000198805-198807
sub19000-54463
main19000-54463i198807-199001
main19000-54500i¥685,000198411-198510
sub13405-54011¥30,400
sub13405-54060¥30,400
sub90105-12109¥260
sub19000-54501¥612,000
main19000-58340i¥871,000198501-198808
sub19000-58370¥827,000
main19000-58350i¥823,000198411-198501
sub19000-58340¥871,000
main19000-58370i¥827,000198608-198808
SWITZERLAND SPEC
main19000-58370i¥827,000198411-198501
SWITZERLAND
main19000-58420i198510-198808
main19000-58421i¥836,000198808
main19000-58500i¥823,000198808-198910
sub19000-58501¥830,000
sub12129-56010¥1,930
sub93385-16014¥80
main19000-58501i¥830,000198910-199001
sub19000-58511¥957,000
main19000-58510i¥823,000198808-198910
sub19000-58511¥957,000
sub12129-56010¥1,930
sub93385-16014¥80
main19000-58511i¥957,000198910-199001

1 parts on this diagram · 1 diagram in section
