Toyota LAND CRUISER — PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-60060-03iBJ7#,LJ7#,RJ7#198411-199001

GRAY,SHADOW GRAY

sub46210-60061¥3,050

main46210-60060-06iBJ7#,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub46210-60061¥3,050

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-33iBJ7#,LJ7#,RJ7#198411-198801

GRAY,GRAY

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-56iBJ7#,LJ7#,RJ7#198411-198801

BROWN,BROWN

sub46217-10020¥240

sub46217-20020¥300

main46217-20020-06iBJ7#,LJ7#,RJ7#198801

BROWN,SEPIA BROWN

sub46217-20020¥300

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iBJ7#,LJ7#,RJ7#¥160198411-199001

46243COVER, PARKING BRAKE LEVER

main46243-60060-01iBJ7#,LJ7#,RJ7#198411-199001

BLACK,BLACK

sub46243-60060¥2,190

main46243-60060-06iBJ7#,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub46243-60060¥2,190

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iBJ7#,LJ7#,RJ7#¥630198411-199001

46341EQUALIZER, PARKING BRAKE

main46341-35030iBJ7#,LJ7#,RJ7#¥410198411-199001

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60210iBJ70..RHD¥4,360198608-198708

SEMI FLOATING RR AXLE

sub46410-60220¥4,390

main46410-60220iBJ70..RHD¥4,390198608-198708

FULL FLOATING RR AXLE

main46410-60230iBJ70,71..LHD¥4,360198411-198708

SEMI FLOATING RR AXLE

sub46410-60240¥4,390

main46410-60240iBJ70,71..LHD¥4,390198411-198708

FULL FLOATING RR AXLE

main46410-60240iBJ70,71..LHD¥4,390198708-199001

main46410-60270iBJ73..LX,STD¥4,810198411-198708

SEMI FLOATING RR AXLE

sub46410-60280¥4,830

main46410-60280iBJ73¥4,830198411-198708

FULL FLOATING RR AXLE

main46410-60280iBJ73¥4,830198708-199001

main46410-60310iBJ75¥5,500198411-198708

SEMI FLOATING RR AXLE

sub46410-60320¥5,500

main46410-60320iBJ75¥5,500198411-198708

FULL FLOATING RR AXLE

main46410-60320iBJ75¥5,500198708-199001

main46410-60350iLJ70..RHD¥4,390198608-199001

main46410-60360iRJ70¥4,540198411-199001

main46410-60370iLJ73,RJ73¥7,300198510-199001

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-17158iBJ70,71,73,LJ7#,RJ7#¥140198411-199001

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main90949-01177iBJ75¥310198411-199001

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08042iBJ7#,LJ7#,RJ7#¥240198411-199001

46443CAP, CABLE ADJUSTING

main46443-12020iBJ7#,LJ7#,RJ7#¥140198411-199001

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-60060iLJ70..SOT¥1,330198411-199001

main46451-60070iBJ70,71,73,LJ7#,RJ7#..HT¥1,330198411-199001

main46451-60080iBJ75..HT¥1,330198411-199001

main46451-60090iBJ75..PIC¥1,330198411-199001

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-60040iBJ75¥2,010198411-198807

sub46452-60041¥2,000

main46452-60041iBJ75¥2,000198807-199001

46458RETAINER, CABLE

main46458-30020iBJ70,71,73,LJ7#,RJ7#¥280198411-199001

46469LEVER, CABLE GUIDE SUPPORT

main46469-60020iBJ7#,LJ7#,RJ7#¥700198411-199001

8401

9010908102

main90109-08102¥250

9011908146

main90119-08146¥200

9011908703

main90119-08703¥100

9017908141

main90179-08141¥120

9017908146

main90179-08146¥180

9046803006

main90468-03006¥110

9046814004

main90468-14004¥80

9161160816

main91611-60816¥230

9161160818

main91611-60818¥140

9161160820

main91611-60820¥200

9165140814

main91651-40814¥180

9331514014

main93315-14014¥70

9411040800

main94110-40800¥120

9412040600

main94120-40600¥170

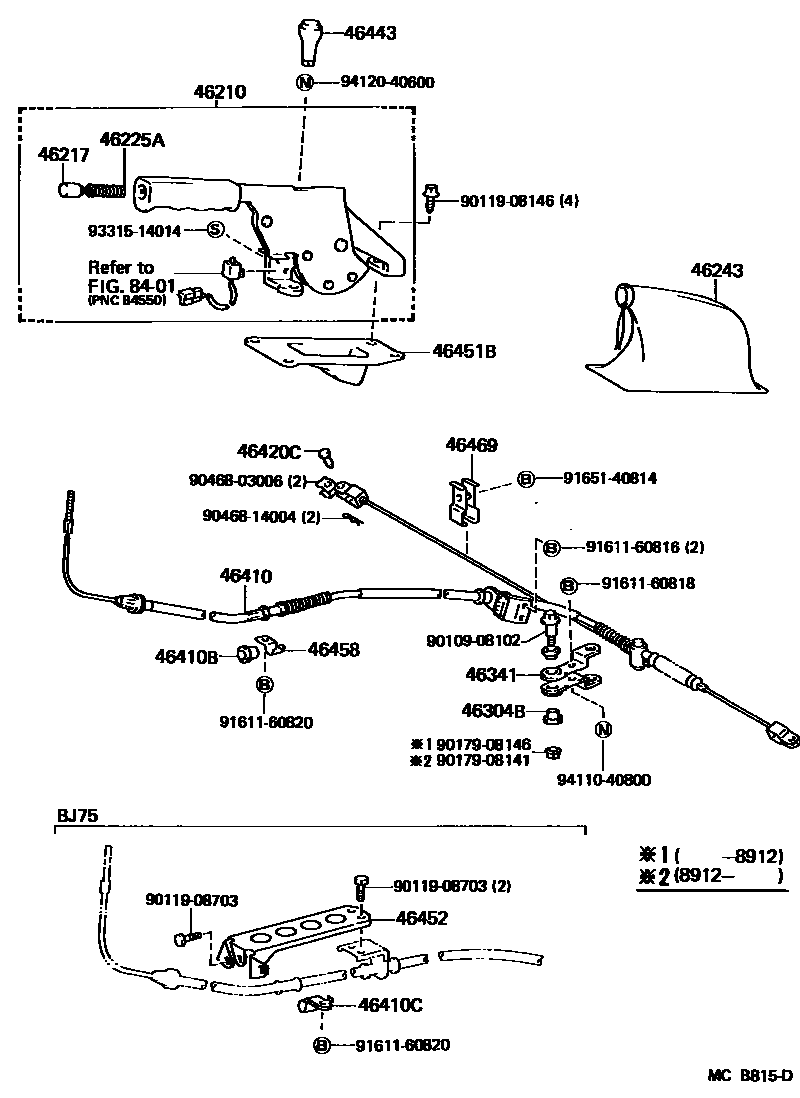

30 parts on this diagram · 1 diagram in section
