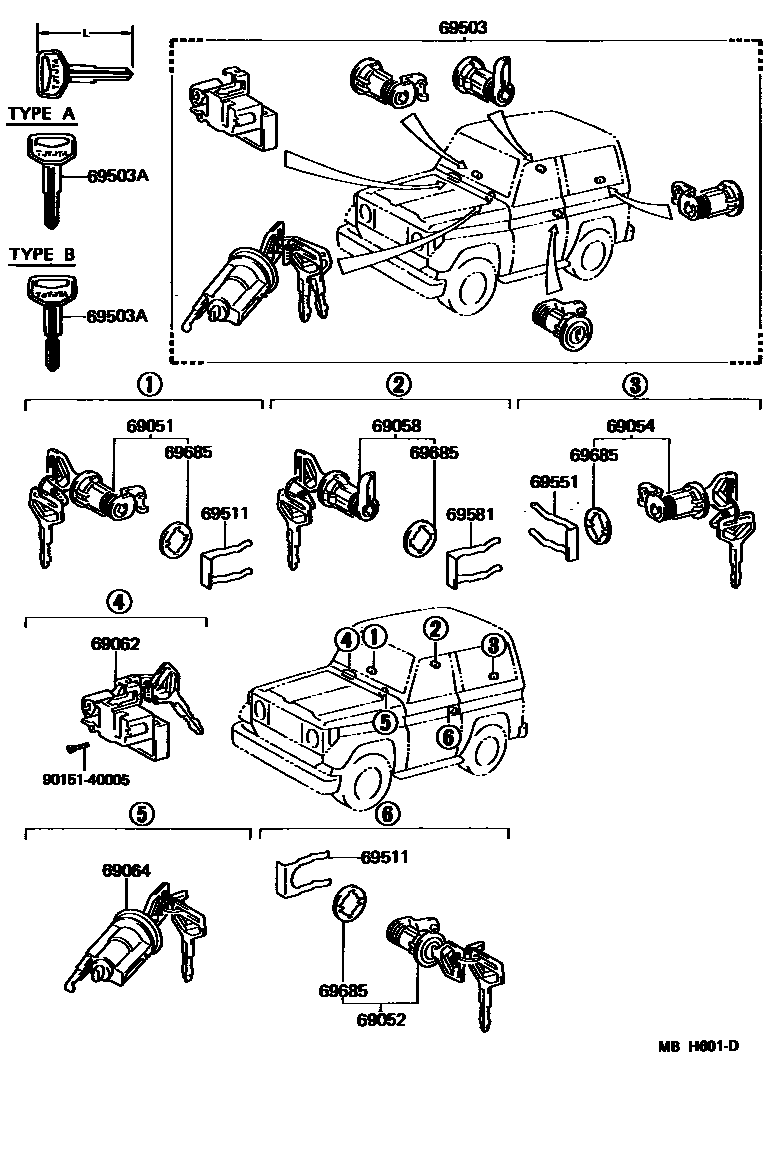

Toyota LAND CRUISER — LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-10170iBJ7#,LJ7#,RJ7#198708-199001

sub69051-60090¥3,990

main69051-32020iBJ7#,LJ7#,RJ7#..HT,SOT¥3,150198411-198708

main69051-90K01iBJ75..PIC¥3,540198411-198608

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-10170iBJ7#,LJ7#,RJ7#198708-199001

sub69052-60090¥3,990

main69052-32020iBJ7#,LJ7#,RJ70¥3,170198411-198708

main69052-90K01iBJ75..PIC¥3,540198411-198608

sub69052-32020¥3,170

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69052-32020iBJ7#,LJ7#,RJ7#..HT,SOT¥3,170198411-199001

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16060iBJ7#,LJ7#,RJ7#..HT,SOT¥3,990198411-199001

sub69058-60090¥3,990

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-90K01-01iBJ75..PIC198411-198608

BLACK,BLACK

sub69056-60050¥6,700

main69056-90K05-01iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

BLACK,BLACK

sub69056-60050¥6,700

sub69056-90K05¥5,100

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-90K00iBJ7#,LJ7#,RJ7#..HT..STD¥7,000198411-198608

sub69057-90K07¥7,000

main69057-90K01iBJ75..PIC¥7,000198411-198608

sub69057-90K07¥7,000

main69057-90K07iBJ73,LJ73,RJ73..STD¥7,000198411-198608

*DTY DOOR FRAME

main69057-90K07iLJ70..SOT¥7,000198411-198608

main69057-90K08iBJ73..VM198510-198512

main69057-90K13iBJ7#,LJ7#,RJ70..(HT,PIC)..(LX,STD,VX)¥7,100198608-199001

sub69057-60120¥7,100

main69057-90K14iLJ70..SOT¥7,100198608-199001

*DTY DOOR FRAME

sub69057-60130¥7,100

69503CYLINDER SET, LOCK

main69005-90K02-01iBJ73,LJ73,RJ73198411-198608

*DTY FRAME,W/GLOVE KEY,BLACK,BLACK

main69005-90K02-01iLJ70..SOT198411-198608

BLACK,BLACK

main69005-90K05iBJ7#,LJ7#,RJ7#..HT..STD¥20,100198411-198608

main69005-90K14-01iBJ7#,LJ7#,RJ7#..HT..STD198411-198608

W/GLOVE BOX KEY,BLACK,BLACK

main69005-90K17iBJ73,LJ73,RJ73..STD¥20,100198411-198608

*DTY DOOR FRAME

main69005-90K22iBJ75..PIC¥22,100198411-198608

main69005-90K43-01iBJ75..PIC198411-198608

W/GLOVE BOX KEY,BLACK,BLACK

main69005-90K45iBJ73..VM198510-198512

main69005-90K46-01iBJ73..VM198510-198512

W/GLOVE BOX KEY,BLACK,BLACK

main69005-90L55iBJ7#,LJ7#,RJ7#..HT..(LX,STD)¥16,800198608-199001

sub69005-60371¥18,700

main69005-90L56-01iBJ75..PIC198608-199001

W/GLOVE BOX KEY,BLACK,BLACK

sub69005-6A230¥22,600

sub69005-90L56¥23,700

main69005-90L57-01iLJ70..SOT198608-199001

*DTY FRAME,W/GLOVE KEY,BLACK,BLACK

sub69005-6A200¥23,800

sub69005-90L57¥24,100

main69005-90L57-01iBJ73,LJ73,RJ73198608-199001

BLACK,BLACK

sub69005-6A200¥23,800

sub69005-90L57¥24,100

main69005-90L61-01iBJ7#,LJ7#,RJ7#..HT..(LX,STD)198608-199001

W/GLOVEBOXKEY,BLACK,BLACK

sub69005-6A220¥23,800

sub69005-90L61¥24,100

main69005-90L61-01iLJ70..VX198708-199001

BLACK,BLACK

sub69005-6A220¥23,800

sub69005-90L61¥24,100

main69005-90L62iBJ73,LJ73,RJ73¥16,800198608-199001

*DTY DOOR FRAME

sub69005-6A210¥18,700

main69005-90L63iBJ75..PIC¥17,600198608-199001

sub69005-6A240¥17,600

69503AKEY, BLANK

main90999-00084iBJ7#,LJ7#,RJ7#..HT,SOT¥2,070198411-198608

MASTER KEY,W(*68),TYPE A

sub90999-00214¥2,570

main90999-00086iBJ75..PIC¥1,550198411-198608

MASTER KEY,TYPE A

main90999-00091iBJ75..PIC¥1,550198411-198608

MASTER KEY,W(*70),TYPE B

sub90999-00086¥1,550

main90999-00092iBJ7#,LJ7#,RJ7#..HT,SOT¥2,060198411-198608

MSTER KEY,W(*69),TYPE B

sub90999-00084¥2,070

main90999-00125iBJ7#,LJ7#,RJ7#¥2,060198608-199001

MASTER KEY,W(*68),TYPE A,L=69

sub90999-00214¥2,570

main90999-00126iBJ7#,LJ7#,RJ7#¥2,060198608-199001

TYPE B,L=69

sub90999-00125¥2,060

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iBJ7#,LJ7#,RJ7#¥160198411-199001

69551RETAINER, BACK DOOR LOCK CYLINDER

main69511-32010iBJ7#,LJ7#,RJ7#..HT,SOT¥160198411-199001

69581RETAINER, FUEL FILLER LID CYLINDER

main69512-87001iBJ7#,LJ7#,RJ7#..HT,SOT¥140198411-199001

69685PAD, LOCK CYLINDER

main69513-32010iBJ75..PIC¥120198411-199001

9015140005

main90151-40005¥90

13 parts on this diagram · 2 diagrams in section
