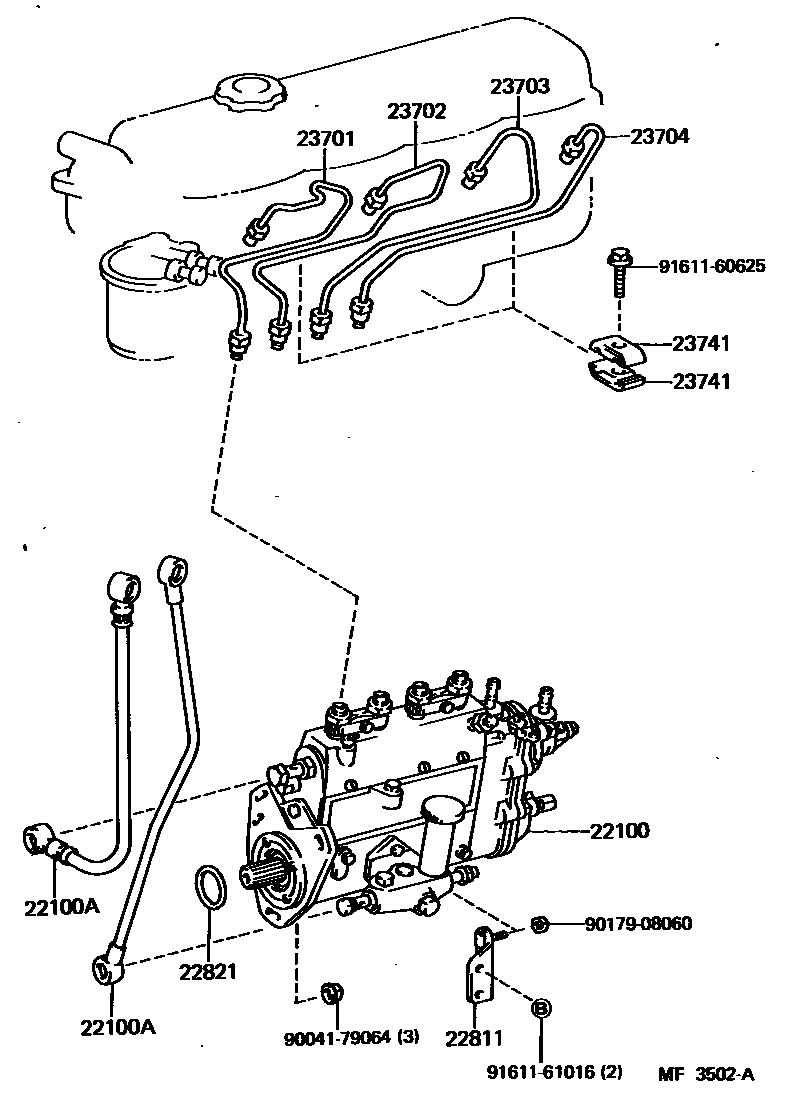

Toyota LAND CRUISER — INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54262i2LT..LJ7#¥325,000198510-198607

main22100-54263i2LT..LJ7#¥327,000198607-199001

main22100-54310i2L..LJ70¥360,000198411-198510

sub22100-54340¥325,000

main22100-54340i2L..LJ70¥325,000198411-198510

W/TACHO METER PICK UP

main22100-54660i2LT..LJ7#..LX¥365,000198810-199001

AUSTRIA SPEC

main22100-58022i3B..BJ70,73,75¥216,000198411-198808

main22100-58202i3B..BJ70,73,75¥271,000198808

sub22100-58840¥278,000

main22100-58360i13BT..BJ71¥283,000198510-199001

main22100-58750i3B..BJ73..STD¥271,000198808

PORTUGAL SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56060i13BT,3B..BJ7#¥3,510198411-198808

PIPE L=300

main23801-56060i13BT..BJ71¥3,510198808-199001

PIPE L=300

main23802-56040i13BT,3B..BJ7#¥3,520198411-198808

HOSE L=210

main23802-56040i13BT..BJ71¥3,520198808-199001

HOSE L=210

main90447-14028i2L#..LJ7#¥1,850198411-199001

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L#..LJ7#¥880198411-198808

sub22811-54041¥860

main22811-54041i2LT..LJ7#¥860198808-199001

sub22811-54042¥530

main22811-56011i3B..BJ70,73,75¥940198411-198808

main22811-56040i13BT..BJ71¥1,620198510-199001

main22811-56050i3B..BJ70,73,75¥1,400198808-199001

22821GASKET, INJECTION PUMP

main90301-49003i3B..BJ70,73,75¥170198808-199001

main90301-77001i3B..BJ70,73,75¥910198411-198808

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54072i2LT..LJ7#¥2,510198903-199001

main23701-54082i2L#..LJ7#¥2,550198411-198903

sub23701-54072¥2,510

main23701-56030i3B..BJ70,73,75¥2,640198411-198808

main23701-56060i13BT..BJ71¥2,510198510-199001

main23701-58010i3B..BJ70,73,75¥2,890198808-199001

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54071i2LT..LJ7#¥2,780198903-199001

main23702-54081i2L#..LJ7#¥2,550198411-198903

sub23702-54071¥2,780

main23702-56030i3B..BJ70,73,75¥2,640198411-198808

main23702-56060i13BT..BJ71¥2,510198510-199001

main23702-58010i3B..BJ70,73,75¥2,890198808-199001

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54072i2LT..LJ7#¥2,550198903-199001

main23703-54082i2L#..LJ7#¥2,530198411-198903

sub23703-54072¥2,550

main23703-56020i3B..BJ70,73,75¥2,330198411-198808

main23703-56060i13BT..BJ71¥2,510198510-199001

main23703-58010i3B..BJ70,73,75¥2,890198808-199001

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54072i2LT..LJ7#¥2,550198903-199001

main23704-54082i2L#..LJ7#¥2,530198411-198903

sub23704-54072¥2,550

main23704-56020i3B..BJ70,73,75¥2,420198411-198808

main23704-56060i13BT..BJ71¥2,510198510-199001

main23704-58010i3B..BJ70,73,75¥2,890198808-199001

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2L#..LJ7#¥450198411-199001

9004179064

main90041-79064¥180

9017908060

main90179-08060¥140

9161160625

main91611-60625¥130

9161161016

main91611-61016¥270

13 parts on this diagram · 4 diagrams in section
