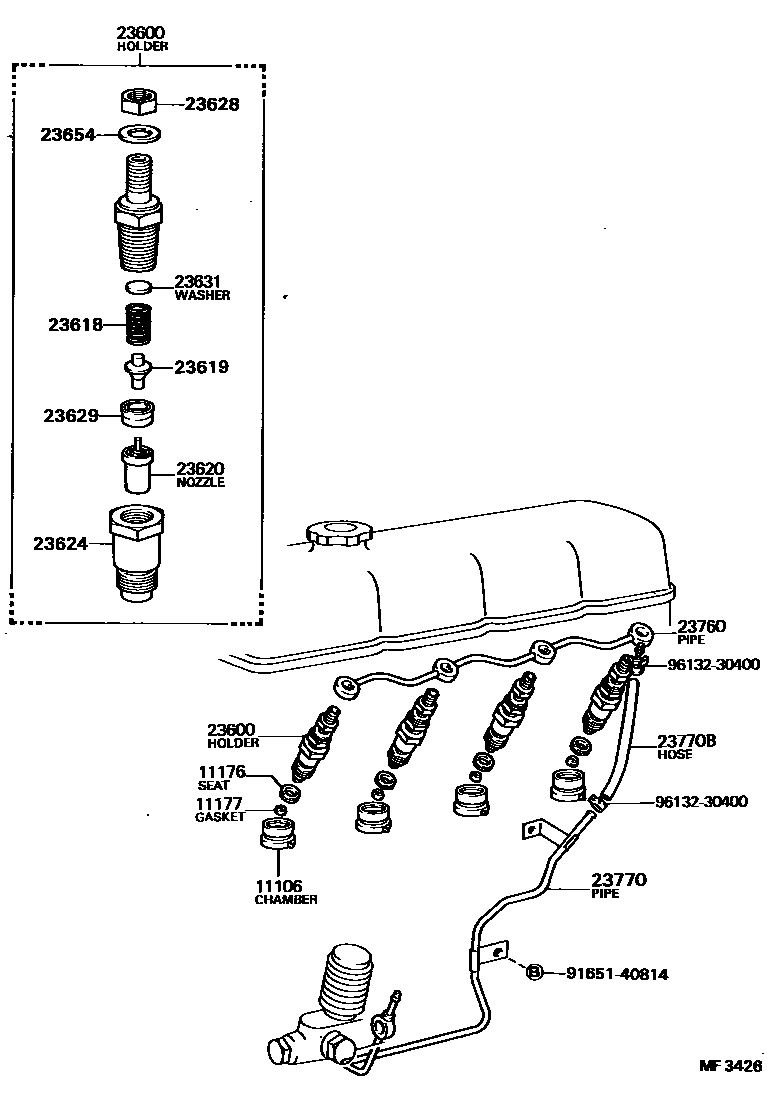

Toyota LAND CRUISER — INJECTION NOZZLE
11106CHAMBER SUB-ASSY, COMBUSTION
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.050
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.275
T=1.325
T=1.375
T=1.100
T=1.425
T=1.475
T=0.950
T=0.700
T=0.750
T=0.800
T=0.850
T=0.900
T=0.975
T=1.025
T=1.150
T=1.075
T=1.125
T=1.175
T=1.225
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770BHOSE, FUEL
L=200(*H,L=110)
L=150
L=200(*H,L=120)
9165140814
9613230400
17 parts on this diagram · 4 diagrams in section
