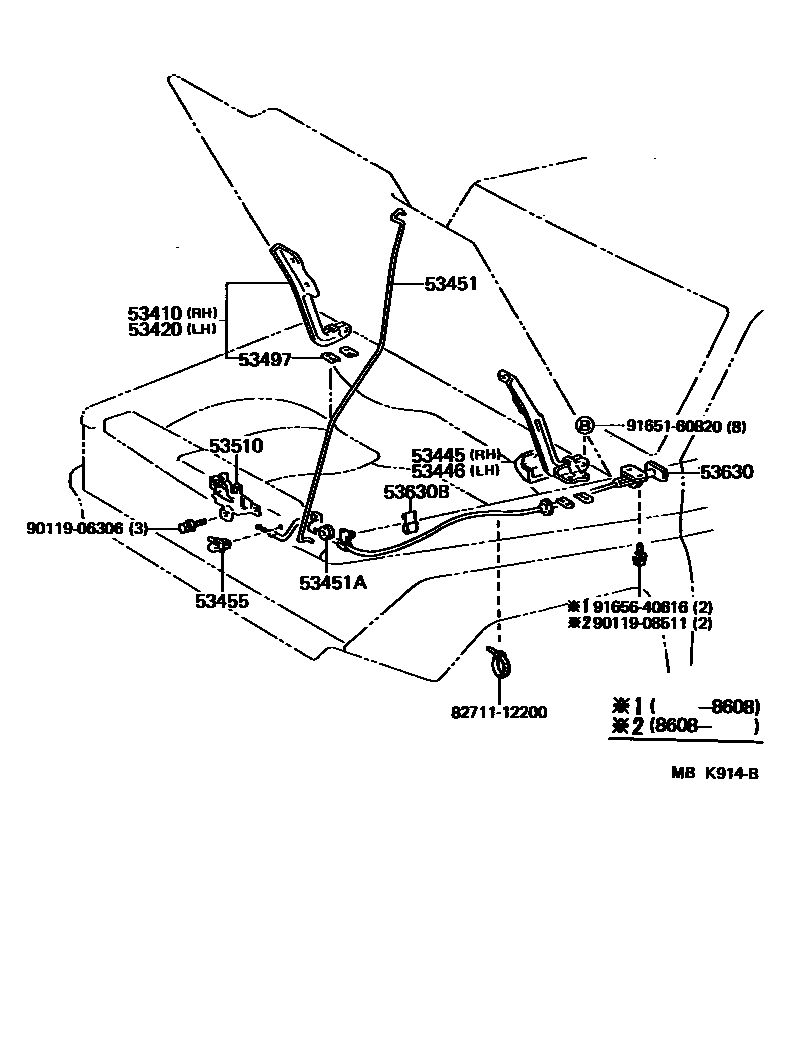

Toyota LAND CRUISER — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-90K00iBJ7#,LJ7#,RJ7#¥2,380198411-198902

sub53410-90K01¥2,350

main53410-90K01iBJ7#,LJ7#,RJ7#¥2,350198902-199001

sub53410-60100¥1,730

53420HINGE ASSY, HOOD, LH

main53420-90K00iBJ7#,LJ7#,RJ7#¥2,380198411-198902

sub53420-90K01¥2,350

main53420-90K01iBJ7#,LJ7#,RJ7#¥2,350198902-199001

sub53420-60100¥1,630

53445COVER, HOOD HINGE, RH

main53445-90K00iBJ7#,LJ70,RJ70¥280198411-198510

53446COVER, HOOD HINGE, LH

main53446-90K00iBJ7#,LJ70,RJ70¥280198411-198510

53451ROD, HOOD SUPPORT

main53451-90K00iLJ7#,RJ7#¥1,910198411-199001

main53451-90K01iBJ7#¥2,070198411-199001

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15296iBJ7#,LJ7#,RJ7#¥240198411-199001

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iBJ7#,LJ7#,RJ7#¥220198411-199001

53497PAD, HOOD HINGE, NO.1

main53497-90K00iBJ7#,LJ7#,RJ7#¥210198411-198902

T=0.5

sub53497-90K02¥200

main53497-90K02iBJ7#,LJ7#,RJ7#¥200198902-199001

T=0.5,T=0.5

sub53497-12070¥100

53510LOCK ASSY, HOOD

main53510-90K00iBJ70,LJ70..RHD¥3,240198608-199001

sub53510-60060¥3,200

main53510-90K01iBJ7#,LJ7#,RJ7#..LHD¥3,240198411-199001

sub53510-60070¥3,200

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-90K01iBJ7#,LJ7#,RJ7#¥2,710198411-198608

main53630-90K02iBJ7#,LJ7#,RJ7#¥2,500198608-199001

main53630-90K03iBJ70,71,73..LX¥2,840198708-199001

W/*DL

main53630-90K04iBJ75¥2,640198608-199001

W/*DL

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main69749-12010iBJ7#,LJ7#,RJ7#¥140198411-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

9011906306

main90119-06306¥120

9011908511

main90119-08511¥340

9165160820

main91651-60820¥130

9165640616

main91656-40616¥100

16 parts on this diagram · 1 diagram in section
