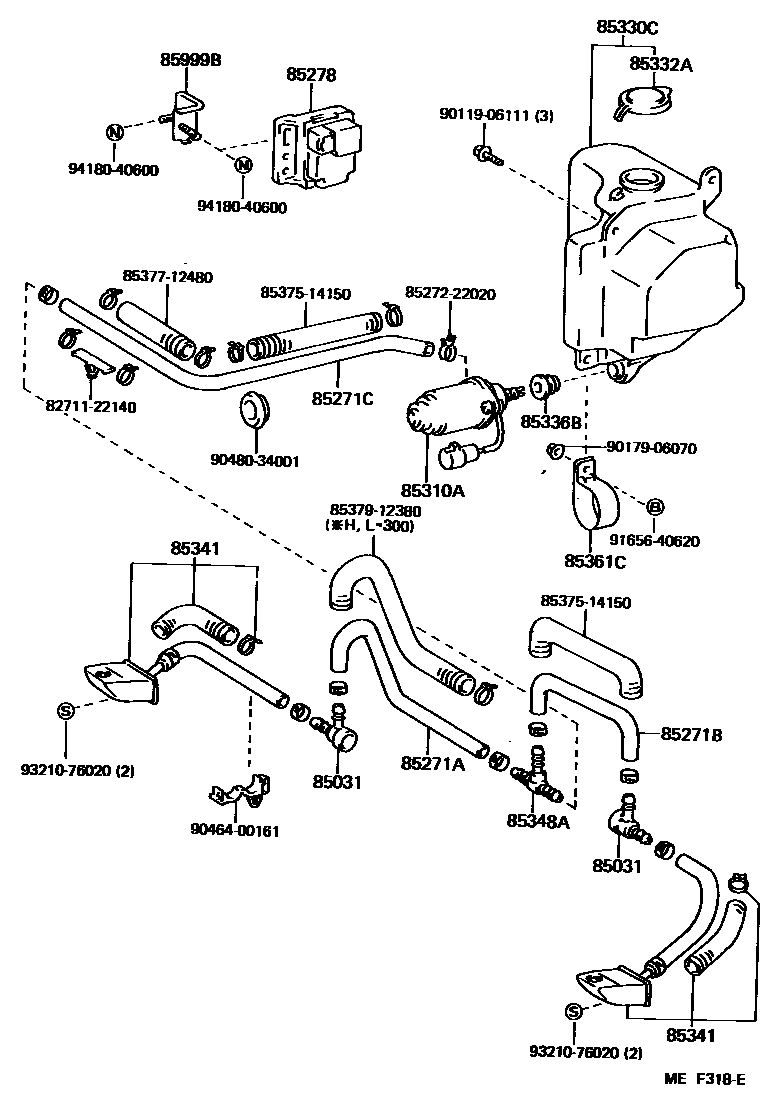

Toyota LAND CRUISER — HEADLAMP CLEANER

0001 1 0002 1

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iBJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX)¥1,950198411-199001

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-22140iRJ70¥1,330198411-198608

L=735

main85375-90K00iLJ7#..HT¥1,680198411-199001

85271AHOSE, HEADLAMP CLEANER, NO.2

main85376-12510iBJ7#..LX,STD¥1,000198411-199001

85271BHOSE, HEADLAMP CLEANER, NO.3

main85343-87702iBJ7#..LX,STD¥1,520198411-199001

85271CHOSE, HEADLAMP CLEANER, NO.4

main85271-20020iLJ70,RJ70..HT198411-198510

main85375-90K14iLJ7#,RJ7#..HT¥850198510-199001

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-22070iLJ7#,RJ7#..HT¥14,100198411-199001

main85276-90K00iBJ7#..LX,STD¥15,300198411-199001

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22070iLJ70,RJ70..HT¥25,500198411-198510

12V

main85310-22100iLJ7#,RJ7#¥13,000198510-199001

sub85310-95J02¥13,000

main85310-90K00iBJ7#..LX,STD¥23,300198411-199001

24V

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85330-90K10iLJ7#,RJ7#..HT¥7,400198411-199001

main85330-90K11iBJ7#..STD¥7,400198411-198607

sub85330-90K12¥7,400

main85330-90K12iBJ7#..LX,STD¥7,400198607-199001

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85332-90A00iBJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX)¥390198411-199001

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iBJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX)¥360198411-199001

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-90K00iBJ7#..LX,STD¥4,130198411-199001

RH

main85044-90K01iLJ7#,RJ7#..HT¥6,800198411-199001

RH

main85045-90K00iBJ7#..LX,STD¥6,500198411-199001

LH

main85045-90K01iLJ7#,RJ7#..HT¥6,600198411-199001

LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iBJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VX)¥630198411-199001

85361CBRACKET, WASHER

main85361-10070iLJ70,RJ70..HT¥730198411-198510

main85361-90K00iBJ7#..LX,STD¥750198411-199001

main85361-90K02iLJ7#,RJ7#..HT¥640198510-199001

85999BBRACKET, HEADLAMP CLEANER RELAY

main85999-90K00iBJ7#..LX,STD¥520198411-199001

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140¥300

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020¥670

8537514150HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-14150¥480

8537712480

main85377-12480¥600

8537912380JOINT

main85379-12380¥660

9011906111

main90119-06111¥170

9017906070

main90179-06070¥180

9046400161

main90464-00161¥190

9048034001

main90480-34001¥430

9165640620

main91656-40620¥120

9321076020

main93210-76020¥120

9418040600

main94180-40600¥90

26 parts on this diagram · 2 diagrams in section
