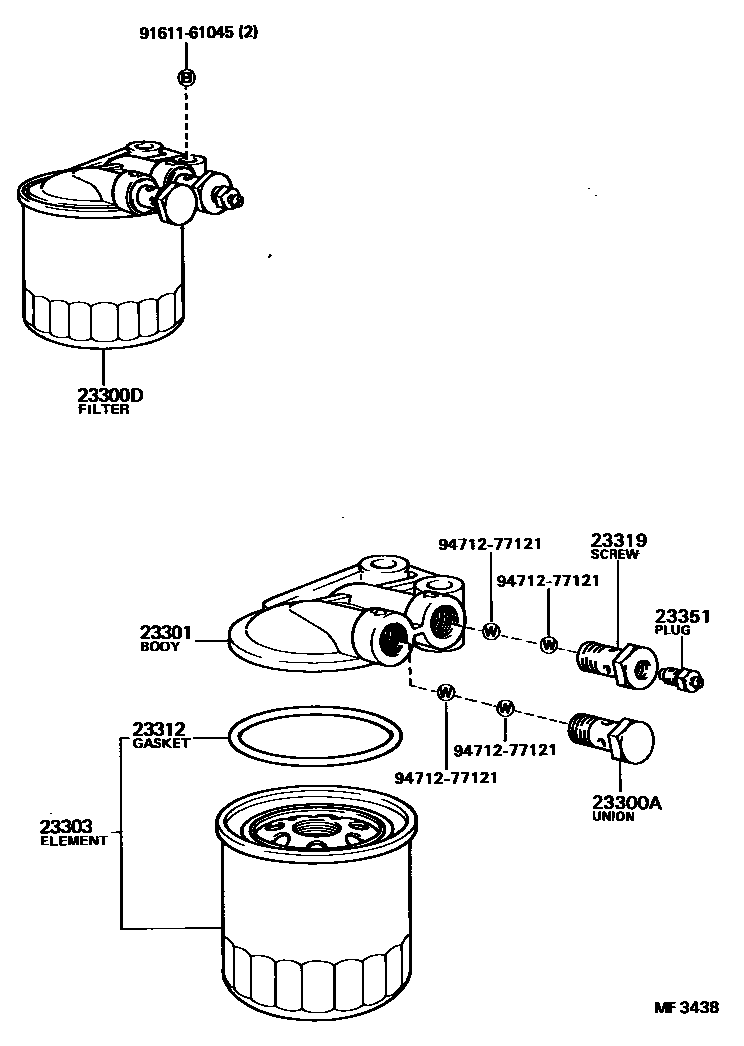

Toyota LAND CRUISER — FUEL FILTER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

23300FILTER ASSY, FUEL

main23300-35060i22R..RJ7#¥1,170198510-199001

main23300-44060i22R..RJ70¥1,180198411-198510

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23323-64010i3B..BJ73..VM¥1,530198510-198608

main90099-18010i13BT..BJ71198512-199001

main90401-14060i3B..BJ70,73,75..LX,STD¥610198411-199001

sub90099-18010

main90401-14060i13BT..BJ71¥610198510-198512

sub90099-18010

main90405-08016i2L..LJ70¥1,460198411-198510

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-56040i3B..BJ70,73,75..LX,STD¥7,300198411-198808

main23300-56080i13BT..BJ71¥9,200198510-199001

main23300-58080i3B..BJ70,73,75..LX,STD¥28,200198808-199001

sub23303-64010¥6,300

sub23301-58060¥13,900

sub84461-35030

main23300-64090i3B..BJ73..VM¥28,300198510-198608

sub23300-64091¥19,500

main23300-64091i3B..BJ73..VM¥19,500198608-199001

23301BODY SUB-ASSY, FUEL FILTER

main23311-56040i3B..BJ70,73,75..LX,STD¥1,780198411-198808

main23311-56070i13BT..BJ71¥3,720198510-199001

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071i13BT..BJ71¥5,400198510-199001

sub23303-54072¥4,580

main23303-56031i3B..BJ70,73,75..LX,STD¥3,910198411-198808

main23303-64010i2L#..LJ7#¥6,300198411-199001

main23303-64010i3B..BJ73..VM¥6,300198510-198808

main23303-64010i3B..BJ70,73,75¥6,300198808-199001

23312GASKET, FILTER BOWL

main23312-56021i3B..BJ70,73,75..LX,STD¥450198411-198808

23319SCREW, FUEL PIPE FOLLOW

main23319-48010i13BT,3B..BJ7#..LX,STD¥860198411-198808

main90099-18011i3B..BJ73..VM198510-198608

main90099-18011i2L..LJ70198411-198510

23351PLUG, AIR VENT

main23323-56010i13BT,3B..BJ7#..LHD..(LX,STD)¥1,460198411-198808

W/SEDIMENTER,NO.2

main23323-56010i13BT..BJ71¥1,460198808-199001

W/SEDIMENTER,NO.2

main23351-54010i13BT..BJ71¥250198808-199001

W/SEDIMENTER,NO.1

main23351-54010i3B..BJ70..RHD¥250198608-198808

W/SEDIMENTER,NO.2

main23351-54010i13BT,3B..BJ7#..LX,STD¥250198411-198808

W/SEDIMENTER,NO.1

main47547-12030i13BT,3B..BJ7#..LX,STD¥400198411-198808

FILTER

main47547-12030i13BT..BJ71¥400198808-199001

FILTER

9161161045

main91611-61045¥180

9471277121

main94712-77121

10 parts on this diagram · 8 diagrams in section
