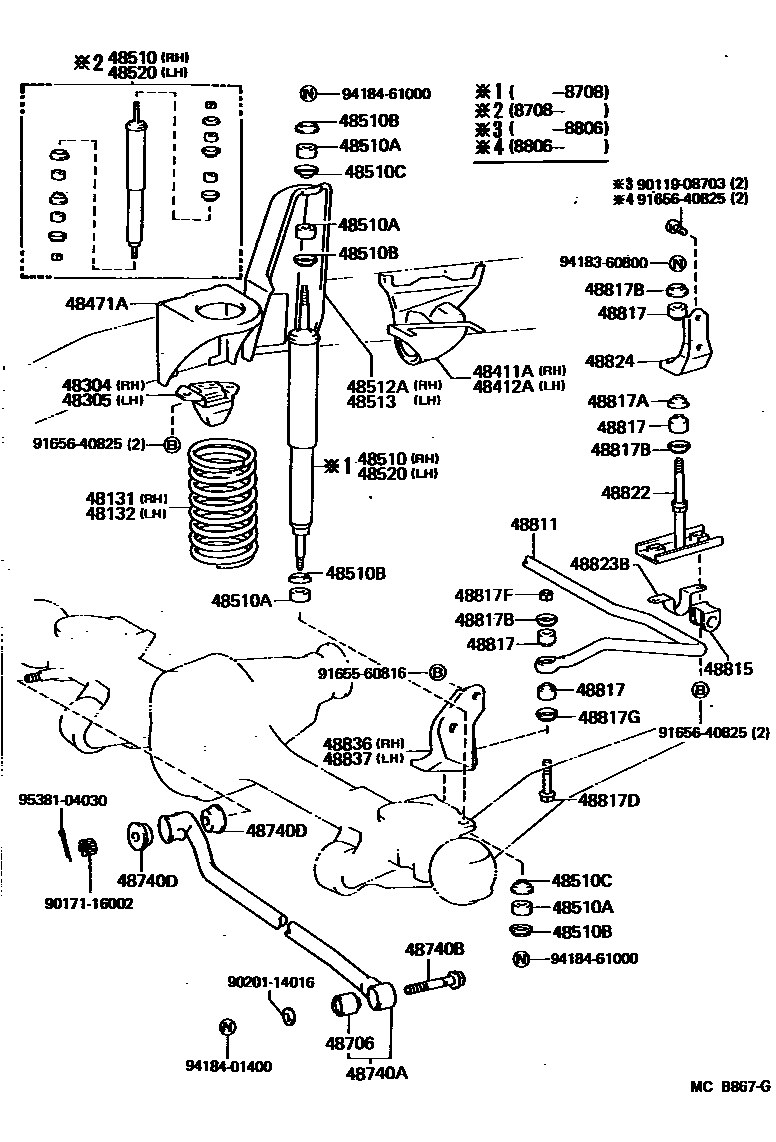

Toyota LAND CRUISER — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
W/WINCH
W/WINCH
W/WINCH
W/WINCH,DENMARK SPEC
W/WINCH,DENMARK SPEC
W/WINCH
W/WINCH
48132SPRING, FRONT COIL, LH
W/WINCH
W/WINCH
W/WINCH
W/WINCH,DENMARK SPEC
W/WINCH,DENMARK SPEC
W/WINCH
W/WINCH
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48305BUMPER SUB-ASSY, FRONT SPRING, NO.2
48411BRACKET, FRONT SPRING(FOR FRONT RH)
48411ABRACKET, LEADING ARM, RH
48412BRACKET, FRONT SPRING(FOR FRONT LH)
48412ABRACKET, LEADING ARM, LH
48471ASEAT, FRONT SPRING SUPPORT
48510ABSORBER ASSY, SHOCK, FRONT RH
W/WINCH
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH
48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48520ABSORBER ASSY, SHOCK, FRONT LH
W/WINCH
48706BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD
48740AROD ASSY, FRONT LATERAL CONTROL
48740BBOLT(FOR FRONT LATERAL CONTROL ROD)
48740DBUSH(FOR FRONT LATERAL CONTROL ROD)
RR
FR
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48817FNUT(FOR FRONT STABILIZER BAR)
48817GRETAINER, CUSHION, NO.3(FOR FRONT STABILIZER BAR)
48822ROD, STABILIZER LINK
48823BCOVER, FRONT STABILIZER BRACKET
48824BRACKET, STABILIZER, FRONT
48836BRACKET, FRONT STABILIZER END, RH
48837BRACKET, FRONT STABILIZER END, LH
9011908703
9017116002
9020114016
9165560816
9165640825
9418360800
9418401400
9418461000
9538104030
42 parts on this diagram · 5 diagrams in section
