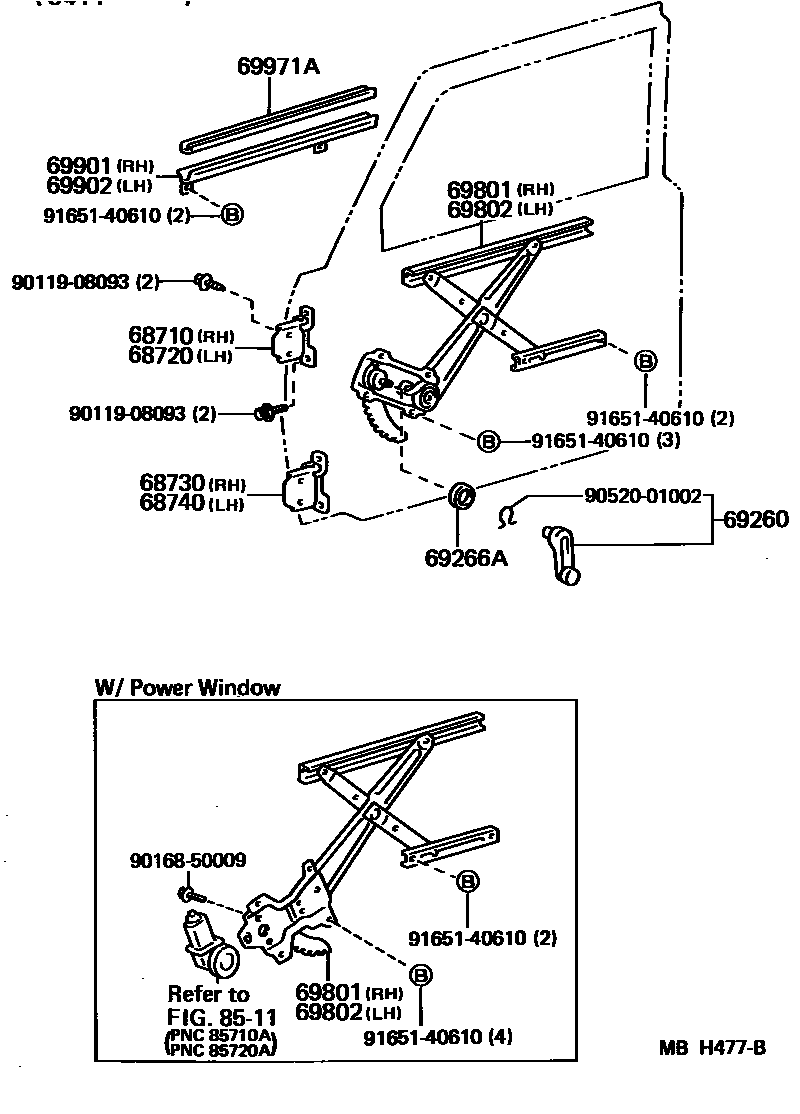

Toyota LAND CRUISER — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iBJ7#,LJ7#,RJ7#¥3,120198411-199001

sub68710-60040¥1,860

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iBJ7#,LJ7#,RJ7#¥2,990198411-199001

sub68720-60040¥1,860

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iBJ7#,LJ7#,RJ7#¥2,990198411-199001

sub68730-60020¥2,050

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iBJ7#,LJ7#,RJ7#¥2,990198411-199001

sub68740-60020¥2,050

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-26iLJ70..LHD..VX198708-199001

BROWN,SEPIA BROWN

sub69260-14030¥1,610

main69260-14030-26iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-199001

BROWN,SEPIA BROWN

sub69260-14030¥1,610

main69260-14030-33iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-199001

GRAY,GRAY

sub69260-14030¥1,610

main69260-14030-33iLJ70..LHD..VX198708-199001

GRAY,GRAY

sub69260-14030¥1,610

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010iBJ7#,LJ7#,RJ7#..LX,STD,VM¥170198411-199001

main69266-22010-08iLJ70..LHD..VX198708-199001

NATURAL WHITE

sub69266-22010¥170

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-90K00iBJ70,71,73,LJ7#,RJ7#..HT..STD¥6,300198411-198608

W/*PW

sub69801-60020¥7,500

main69801-90K00iBJ70,71,73,LJ7#,RJ7#..LX,VX¥6,300198608-199001

W/*PW

sub69801-60020¥7,500

main69810-90K00iLJ70..LHD..VX¥6,300198708-199001

main69810-90K00iBJ7#,LJ7#,RJ7#..LX,STD,VM¥6,300198411-199001

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-90K00iBJ70,71,73,LJ7#,RJ7#..LX,VX¥6,300198608-199001

W/*PW

sub69802-60020¥7,500

main69802-90K00iBJ70,71,73,LJ7#,RJ7#..HT..STD¥6,300198411-198608

W/*PW

sub69802-60020¥7,500

main69820-90K00iLJ70..LHD..VX¥6,300198708-199001

main69820-90K00iBJ7#,LJ7#,RJ7#..LX,STD,VM¥6,300198411-199001

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-90K00iBJ7#,LJ7#,RJ7#¥1,030198411-199001

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-90K01iBJ7#,LJ7#,RJ7#¥1,030198411-199001

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-90K00iBJ7#,LJ7#,RJ7#¥570198411-199001

8511

9011908093

main90119-08093¥90

9016850009

main90168-50009¥140

9052001002

main90520-01002¥180

9165140610

main91651-40610¥160

16 parts on this diagram · 1 diagram in section
