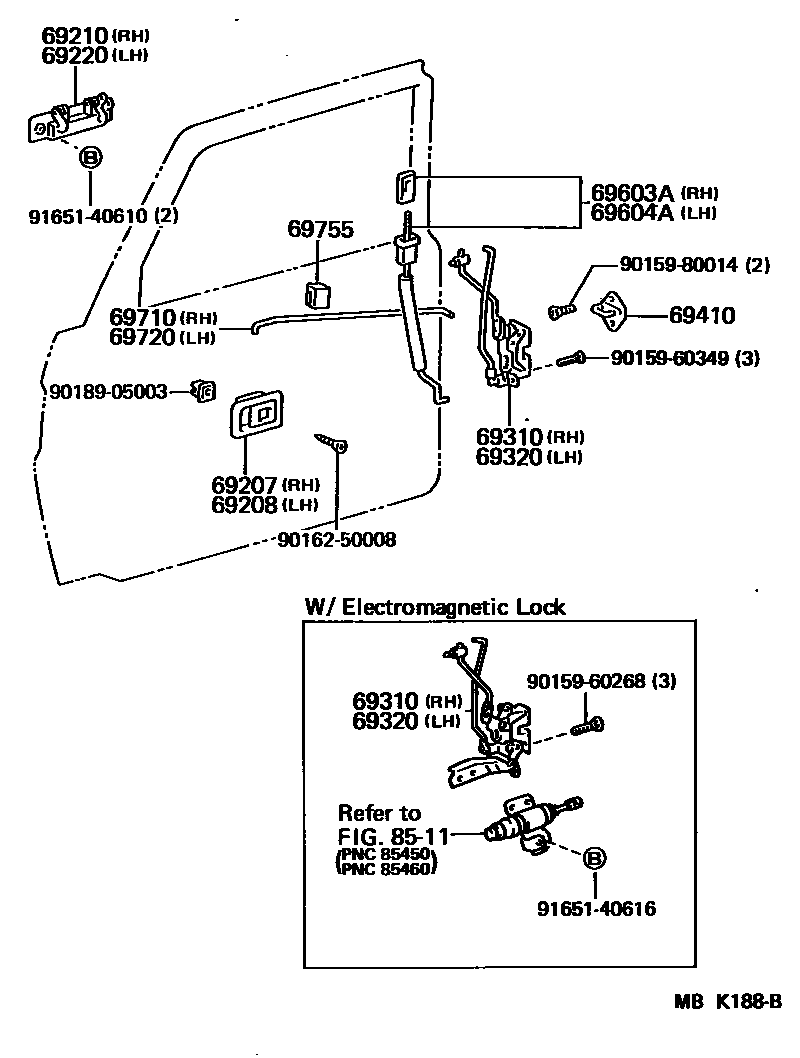

Toyota LAND CRUISER — FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-03iBJ7#,LJ7#,RJ7#198411-199001

GRAY,GRAY

sub69205-10040¥1,440

sub69205-10030¥1,430

main69205-10040-06iBJ7#,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub69205-10040¥1,440

sub69205-10030¥1,430

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-03iBJ7#,LJ7#,RJ7#198411-199001

GRAY,GRAY

sub69206-10040¥1,440

sub69206-10030¥1,430

main69206-10040-06iBJ7#,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub69206-10040¥1,440

sub69206-10030¥1,430

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-90K00iBJ7#,LJ7#,RJ7#¥2,110198411-199001

PLATED

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-90K00iBJ7#,LJ7#,RJ7#¥2,110198411-199001

PLATED

69310LOCK ASSY, FRONT DOOR, RH

main69310-90K00iBJ7#,LJ7#,RJ7#..LX,STD,VM¥6,400198411-199001

main69310-90K02iBJ70,71,73,LJ7#,RJ7#¥7,300198510-198608

W/*EL

main69310-90K02iBJ70,71,73,LJ7#,RJ7#..LX,VM,VX¥7,300198608-199001

W/*EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-90K00iBJ7#,LJ7#,RJ7#..LX,STD,VM¥6,400198411-199001

main69320-90K02iBJ70,71,73,LJ7#,RJ7#..LX,VM,VX¥7,300198608-199001

W/*EL

main69320-90K02iBJ70,71,73,LJ7#,RJ7#¥7,300198510-198608

W/*EL

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iBJ7#,LJ7#,RJ7#¥710198411-199001

69603AROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69603-90K00-03iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-199001

GRAY,SHADOW GRAY

sub69603-90K00¥1,960

main69603-90K00-06iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-199001

BROWN,SEPIA BROWN

sub69603-90K00¥1,960

main69603-90K01-03iLJ70..VX198708-199001

GRAY,SHADOW GRAY

sub69603-90K01¥1,960

main69603-90K01-06iLJ70..VX198708-199001

BROWN,BROWN

sub69603-90K01¥1,960

main69603-90K02-03iBJ70,71,73,LJ7#,RJ7#198510-198608

W/*EL,GRAY,SHADOW GRAY

sub69603-90K02¥1,950

main69603-90K02-03iBJ70,71,73,LJ7#,RJ7#..LX,VM198608-199001

W/*EL,GRAY,SHADOW GRAY

sub69603-90K02¥1,950

main69603-90K02-06iBJ70,71,73,LJ7#,RJ7#..LX,VM198608-199001

W/*EL,BROWN,SEPIA BROWN

sub69603-90K02¥1,950

main69603-90K02-06iBJ70,71,73,LJ7#,RJ7#198510-198608

W/*EL,BROWN,SEPIA BROWN

sub69603-90K02¥1,950

69604AROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69604-90K00-03iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-199001

GRAY,SHADOW GRAY

sub69604-90K00¥1,960

main69604-90K00-06iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-199001

BROWN,SEPIA BROWN

sub69604-90K00¥1,960

main69604-90K01-03iLJ70..VX198708-199001

GRAY,SHADOW GRAY

sub69604-90K01¥1,960

main69604-90K01-06iLJ70..VX198708-199001

BROWN,SEPIA BROWN

sub69604-90K01¥1,960

main69604-90K02-03iBJ70,71,73,LJ7#,RJ7#..LX,VM198608-199001

W/*EL,GRAY,SHADOW GRAY

sub69604-90K02¥1,950

main69604-90K02-03iBJ70,71,73,LJ7#,RJ7#198510-198608

W/*EL,GRAY,SHADOW GRAY

sub69604-90K02¥1,950

main69604-90K02-06iBJ70,71,73,LJ7#,RJ7#198510-198608

W/*EL,BROWN,SEPIA BROWN

sub69604-90K02¥1,950

main69604-90K02-06iBJ70,71,73,LJ7#,RJ7#..LX,VM198608-199001

W/*EL,BROWN,SEPIA BROWN

sub69604-90K02¥1,950

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-90K00iBJ7#,LJ7#,RJ7#¥380198411-199001

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-90K00iBJ7#,LJ7#,RJ7#¥380198411-199001

69755SILENCER, FRONT DOOR LOCK LINK

main69759-30021iBJ7#,LJ7#,RJ7#¥250198607-199001

main69759-90K01iBJ7#,LJ7#,RJ7#¥260198411-198607

8511

9015960268

main90159-60268¥130

9015960349

main90159-60349¥70

9015980014

main90159-80014¥120

9016250008

main90162-50008¥70

9018905003

main90189-05003¥130

9165140610

main91651-40610¥160

9165140616

main91651-40616¥60

20 parts on this diagram · 1 diagram in section
