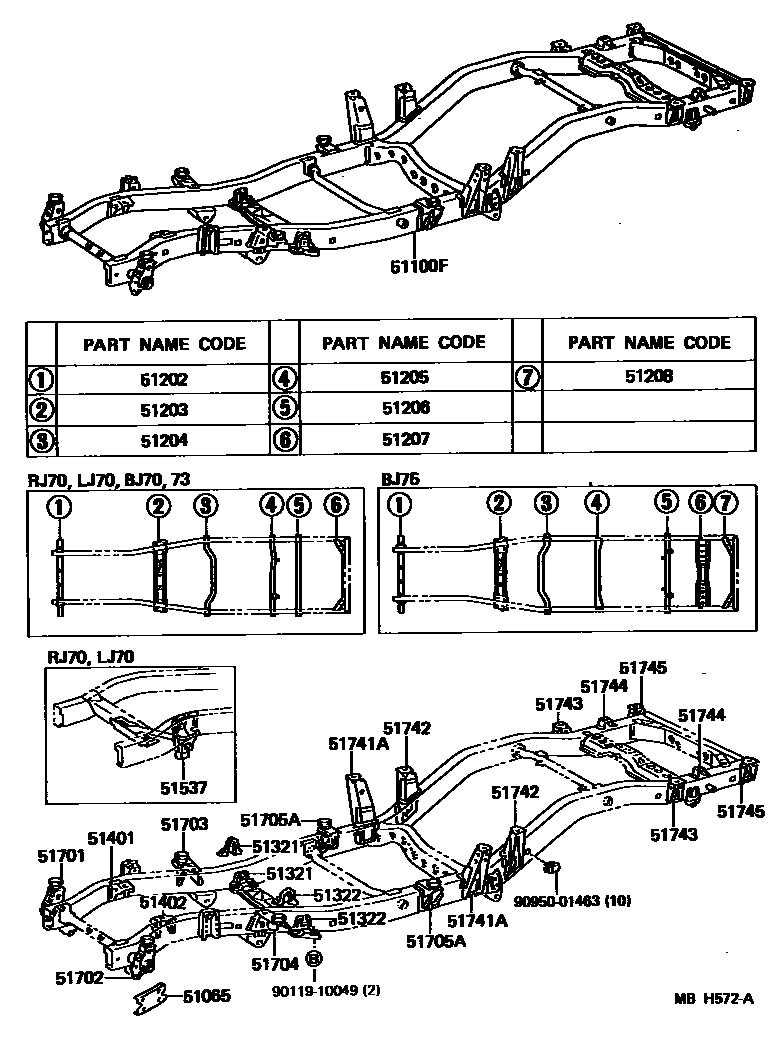

Toyota LAND CRUISER — FRAME
51065SUPPORT SUB-ASSY, STEERING GEAR BOX
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51207CROSSMEMBER SUB-ASSY, FRAME, NO.6
51208CROSSMEMBER SUB-ASSY, FRAME, NO.7
51321GUSSET, CROSSMEMBER, NO.2 RH
51322GUSSET, CROSSMEMBER, NO.2 LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51537BRACKET, LATERAL ROD SUPPORT
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3
RH
LH
51741ABRACKET, BODY MOUNTING
RH
LH
51742BRACKET, BODY MOUNTING, NO.2
RH
LH
51743BRACKET, BODY MOUNTING, NO.3
51744BRACKET, BODY MOUNTING, NO.4
51745BRACKET, BODY MOUNTING, NO.5
9011910049
9095001463
26 parts on this diagram · 2 diagrams in section
