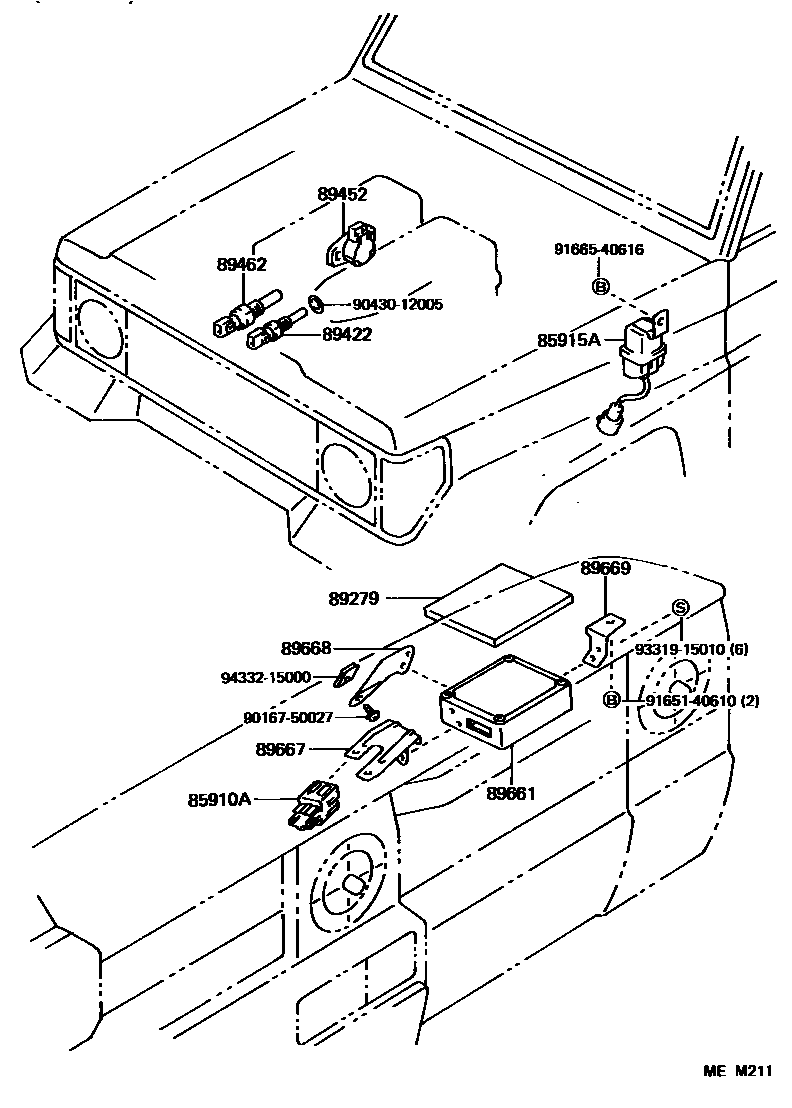

Toyota LAND CRUISER — ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iRJ7#..EFI¥5,700198812-199001

85915ARELAY, MAIN

main85915-60020iRJ7#..EFI¥6,600198812-199001

89279COVER, ENGINE CONTROL COMPUTER

main89279-60010iRJ7#..EFI¥310198812-199001

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRJ7#..EFI¥2,420198812-199001

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-28030iRJ7#..EFI¥13,500198812-199001

sub89452-20050¥13,600

89462SWITCH, START INJECTOR TIME

main89462-20040iRJ7#..EFI¥8,900198812-199001

89661COMPUTER, ENGINE CONTROL

main89661-60050iRJ7#..EFI¥97,500198812-199001

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60030iRJ7#..EFI198812-199001

sub89559-60080¥380

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60030iRJ7#..EFI198812-199001

sub89668-60140¥750

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89559-60020iRJ7#..EFI¥350198812-199001

sub89559-60070¥350

9016750027

main90167-50027

9043012005

main90430-12005¥110

9165140610

main91651-40610¥160

9166540616

main91665-40616¥70

9331915010

main93319-15010¥70

9433215000

main94332-15000¥90

16 parts on this diagram · 1 diagram in section
