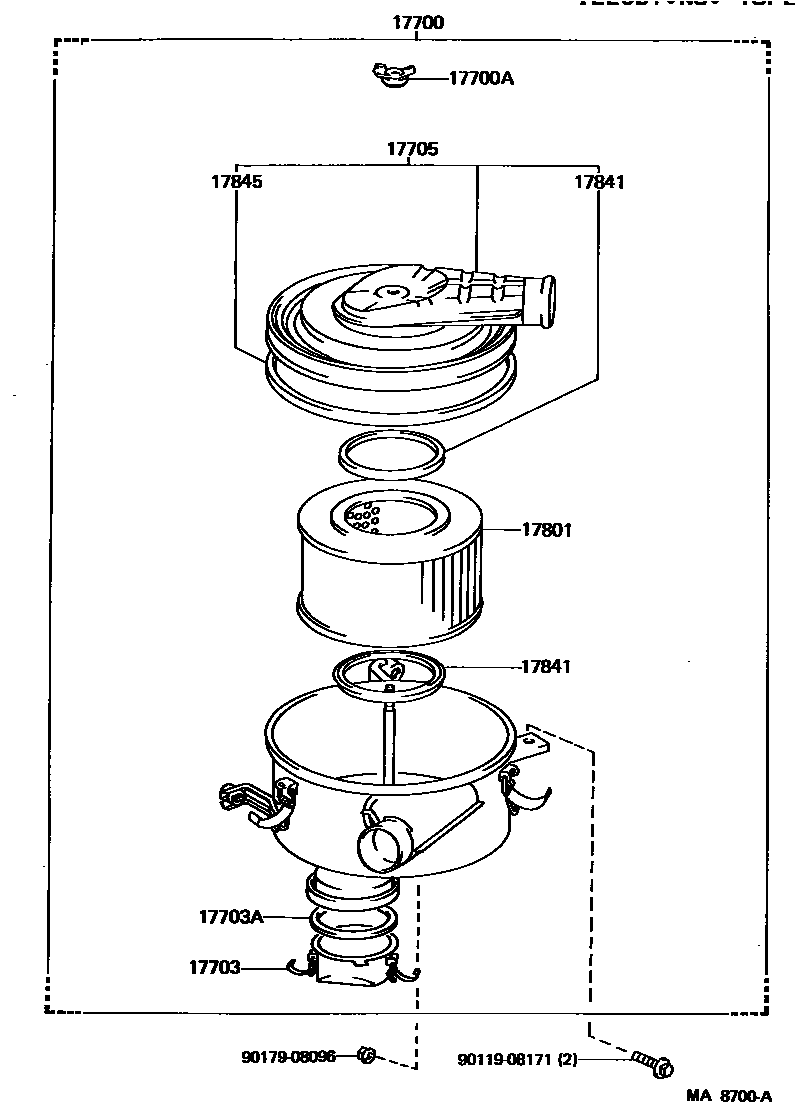

Toyota LAND CRUISER — AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17700CLEANER ASSY, AIR

main17700-35180i22R..RJ7#¥30,300198411-199001

main17700-35410i22RE..RJ7#198812-199001

main17700-54320i2L..LJ70¥31,100198411-198510

sub17700-54321¥31,800

main17700-54321i2LT..LJ7#¥31,800198510-199001

main17700-58160i3B..BJ75..PIC¥27,400198411-199001

main17700-58170i13BT..BJ71¥31,800198510-199001

main17700-58170i3B..BJ70,73,75..LHD..HT..(LX,STD)¥31,800198608-198808

CYCLONE TYPE

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i22R..RJ7#198411-199001

main90175-08008i13BT,3B..BJ7#198411-199001

main94271-00800i2L#..LJ7#198411-199001

17703CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

main17703-68010i3B..BJ70,73,75..LHD..HT..(LX,STD)198608-198808

CYCLONE TYPE

sub17703-17010

main17703-68010i13BT..BJ71198510-199001

sub17703-17010

17703AGASKET(FOR BOTTOM AIR CLEANER FILTER CASE)

main90430-98001i13BT..BJ71¥0198510-199001

main90430-98001i3B..BJ70,73,75..LHD..HT..(LX,STD)¥0198608-198808

CYCLONE TYPE

17705CAP SUB-ASSY, AIR CLEANER

main17705-35060i22R..RJ7#198411-199001

main17705-35190i22RE..RJ7#198812-199001

main17705-61090i13BT,3B..BJ7#..LX,STD198411-199001

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31050i2L#..LJ7#¥3,890198411-199001

main17801-37010i22R..RJ7#¥2,420198411-199001

sub17801-41090¥2,000

main17801-68020i13BT,3B..BJ7#¥3,990198411-199001

main17801-70020i22RE..RJ7#¥2,840198812-199001

17841GASKET, FILTER ELEMENT

main17841-41050i22R..RJ7#198411-199001

main17841-68010i13BT,3B..BJ7#¥0198411-199001

17845GASKET, AIR CLEANER CAP

main17845-61011i22R..RJ7#198411-199001

*G,L=1130

9011908171

main90119-08171¥140

9017908096

main90179-08096¥110

10 parts on this diagram · 7 diagrams in section
