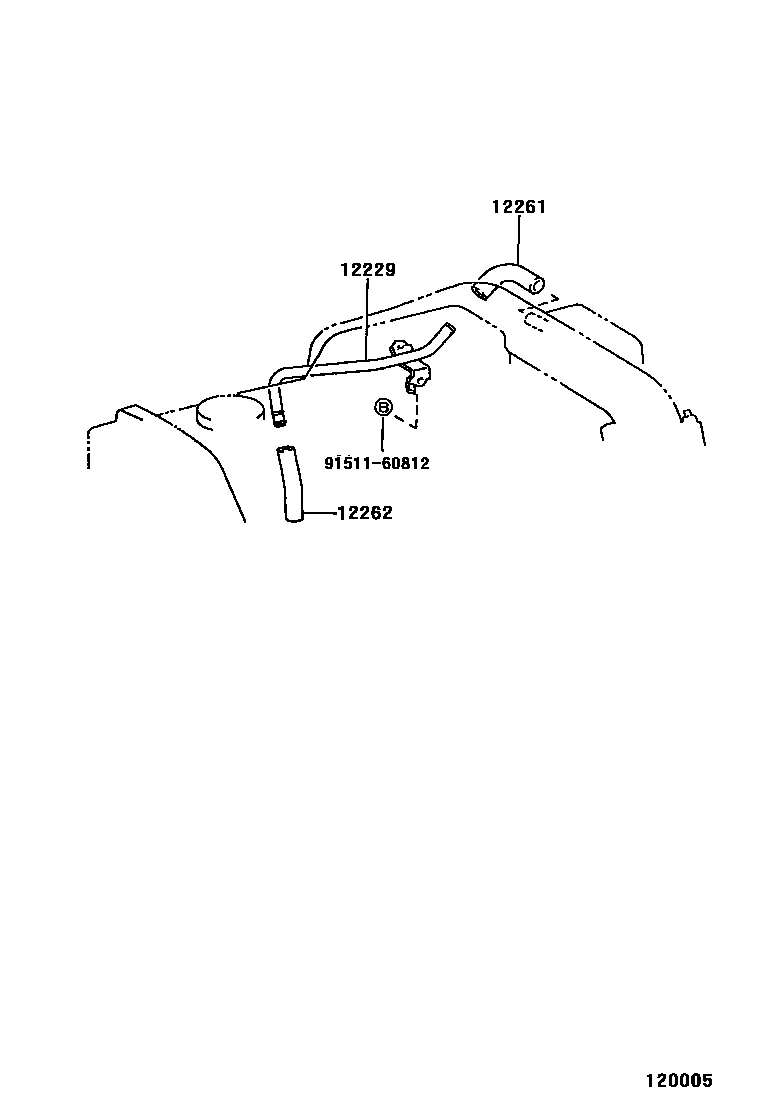

Toyota LAND CRUISER PRADO — VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12229PIPE, VENTILATION

main12229-30020i1KDFTV..KDJ9#¥2,080200008-200211

main12229-67020i1KZTE..KZJ9#¥2,380199604-199906

main12229-67020i1KZTE..KZJ9#¥2,380199906-200008

12261HOSE, VENTILATION

main12261-62040i5VZFE..VZJ9#¥850199604-199611

sub12261-62041¥840

main12261-62041i5VZFE..VZJ9#¥840199906-200209

main12261-62041i5VZFE..VZJ9#¥840199611-199906

main12261-67010i1KZTE..KZJ9#¥750199604-199906

main12261-67010i1K#..KDJ9#,KZJ9#¥750199906-200211

main12261-75030i3RZFE..RZJ9#¥940199704-199906

main12261-75080i3RZFE..RZJ9#¥940199906-200209

12262HOSE, VENTILATION, NO.2

main12262-30010i1KDFTV..KDJ9#¥750200008-200211

main12262-62050i5VZFE..VZJ9#¥880199604-199906

main12262-62050i5VZFE..VZJ9#¥880199906-200008

main12262-62060i5VZFE..VZJ9#¥2,070200008-200209

main12262-67020i1KZTE..KZJ9#¥750199906-200008

sub12262-30060¥620

main12262-67020i1KZTE..KZJ9#¥750199604-199906

sub12262-30060¥620

main12262-75050i3RZFE..RZJ9#¥840199704-199906

main12262-75050i3RZFE..RZJ9#¥840199906-200209

9151160812

main91511-60812¥140

4 parts on this diagram · 4 diagrams in section
