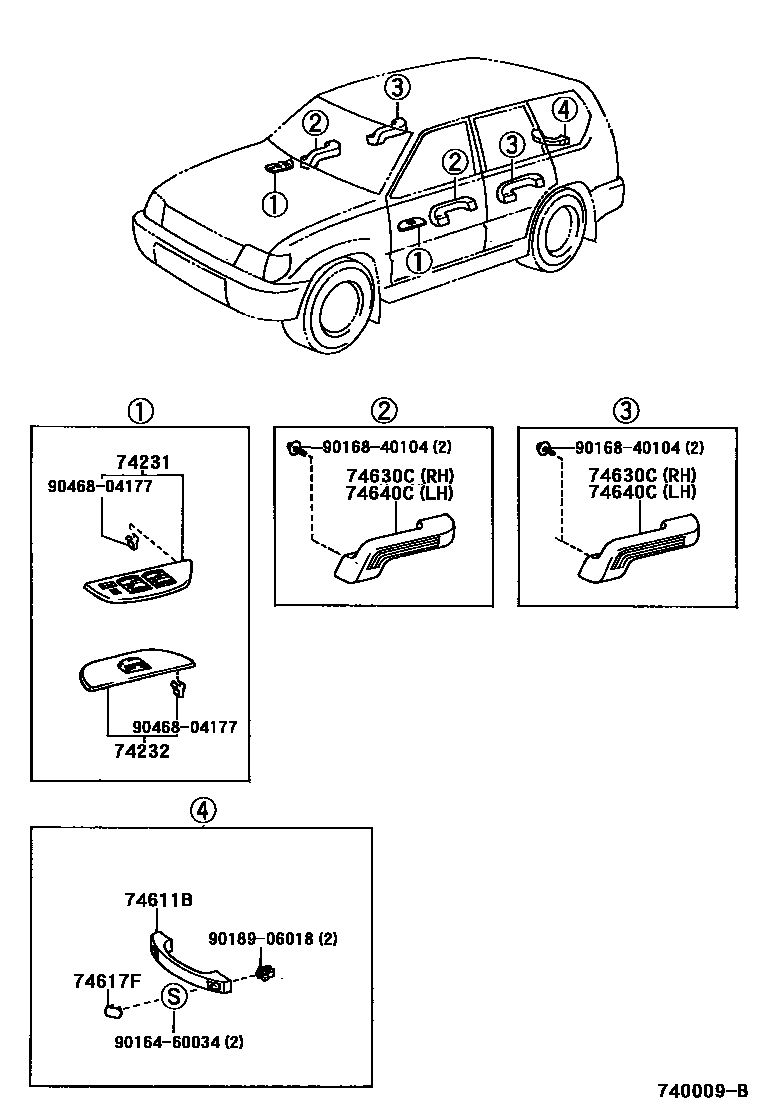

Toyota LAND CRUISER PRADO — ARMREST & VISOR

0001 1������ 0002 1������ 0003 1����� & ����������

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60110-B0iKZJ95,RZJ95,VZJ95..TS,TX199604-199906

MD.MOON MIST,TRIM1#

main74231-60130-B0iKZJ90,RZJ90..RS,RX199604-199906

MD.MOON MIST,TRIM1#

main74231-60140iKZJ95,RZJ95..08S..ATM..TX¥2,590199708-199712

main74231-60140iKZJ95,VZJ95..TZ¥2,590199604-199906

main74231-60140iKZJ95,RZJ95..08S..ATM..TX¥2,590199801-199906

main74231-60190iKZJ90,RZJ90..ATM..RX¥2,640199704-199712

TYPE S *(S)

main74231-60190iKZJ90,VZJ90..RZ¥2,640199604-199906

main74231-60310-B0iKDJ90,KZJ90,RZJ90..RS,RX199906-200211

MD.MOON MIST,TRIM1#

sub74231-60310¥1,830

main74231-60310-E0iKDJ90,KZJ90,RZJ90..RS,RX199906-200211

OAK,TRIM4#

sub74231-60310¥1,830

main74231-60320-B0iKDJ95,KZJ95,RZJ95,VZJ95..TS,TX199906-200211

MD.MOON MIST,TRIM1#

sub74231-60320¥1,780

main74231-60320-E0iKDJ95,KZJ95,RZJ95,VZJ95..TS,TX199906-200211

OAK,TRIM4#

sub74231-60320¥1,780

main74231-60340iKDJ90,KZJ90,VZJ90..RZ¥3,640199906-200211

main74231-60350iVZJ95..TZ;KDJ95,KZJ95..MTM..TZ;KDJ95,KZJ95,RZJ95..08S..ATM..(TX,TZ)¥3,480199906-200211

main74231-60380iKDJ95,RZJ95..08S..ATM..TX¥3,480200108-200211

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60090-B0iKZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199604-199906

MD.MOON MIST,TRIM1#

main74232-60120iKZJ95,RZJ95..08S..ATM..TX¥3,060199801-199906

main74232-60120iKZJ95,RZJ95..08S..ATM..TX¥3,060199708-199712

main74232-60120iKZJ95,VZJ95..TZ¥3,060199604-199906

main74232-60150iKZJ90,RZJ90..ATM..RX¥3,060199704-199712

TYPE S *(S)

main74232-60150iKZJ90,VZJ90..RZ¥3,060199604-199906

main74232-60260-B0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

MD.MOON MIST,TRIM1#

sub74232-60260¥2,030

main74232-60260-E0iKDJ9#,KZJ9#,RZJ9#,VZJ95..RS,RX,TS,TX199906-200211

OAK,TRIM4#

sub74232-60260¥2,030

main74232-60290iKDJ95,RZJ95..08S..ATM..TX¥4,020199906-200211

main74232-60330iKDJ95,RZJ95..08S..ATM..TX¥4,020200108-200211

74611BGRIP, ASSIST

main74610-10020-B2iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub74610-10020¥730

main74610-10020-E3iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub74610-10020¥730

74617FPLUG, ASSIST GRIP

main74617-14010-B2iKZJ9#,RZJ9#,VZJ9#199604-200211

MD.MOON MIST,TRIM1#

sub74617-14010¥120

main74617-14010-E2iKDJ9#,KZJ9#,RZJ9#,VZJ9#199906-200211

OAK,TRIM4#

sub74617-14010¥120

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-60030-B0iKZJ90,RZJ90,VZJ90199604-199906

MD.MOON MIST,TRIM1#

sub74630-60030¥5,700

main74641-60010-B0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub74641-60010¥2,910

main74641-60010-B0iKDJ95..TS;KDJ95..05S;KDJ95..MTM..TX199906-200211

MD.MOON MIST,TRIM1#

sub74641-60010¥2,910

main74641-60010-E0iKDJ95..MTM..TZ;KDJ90,KZJ9#,RZJ9#,VZJ9#;KDJ95..08S..ATM..(TX,TZ)199906-200211

OAK,TRIM4#

sub74641-60010¥2,910

main74641-60010-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub74641-60010¥2,910

main74653-60010-B0iKDJ95..MTM..TZ;KZJ95,RZJ95,VZJ95;KDJ95..08S..ATM..(TX,TZ)199906-200211

main74653-60010-E0iKDJ95..TS;KDJ95..05S;KDJ95..MTM..TX199906-200211

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-60010-B0iKZJ90,RZJ90,VZJ90199604-199906

MD.MOON MIST,TRIM1#

sub74640-60010¥5,700

main74642-60010-B0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub74642-60010¥2,910

main74642-60010-B0iKDJ95..TS;KDJ95..05S;KDJ95..MTM..TX199906-200211

MD.MOON MIST,TRIM1#

sub74642-60010¥2,910

main74642-60010-E0iKDJ95..MTM..TZ;KDJ90,KZJ9#,RZJ9#,VZJ9#;KDJ95..08S..ATM..(TX,TZ)199906-200211

OAK,TRIM4#

sub74642-60010¥2,910

main74642-60010-E0iKDJ95,KZJ95,VZJ95..TZ199906-200211

sub74642-60010¥2,910

main74654-60010-B0iKDJ95..TS;KDJ95..05S;KDJ95..MTM..TX199906-200211

main74654-60010-E0iKDJ95..TS;KDJ95..05S;KDJ95..MTM..TX199906-200211

9016460034

main90164-60034¥110

9016840104

main90168-40104¥120

9018906018

main90189-06018¥80

9046804177

main90468-04177¥40

10 parts on this diagram · 3 diagrams in section
