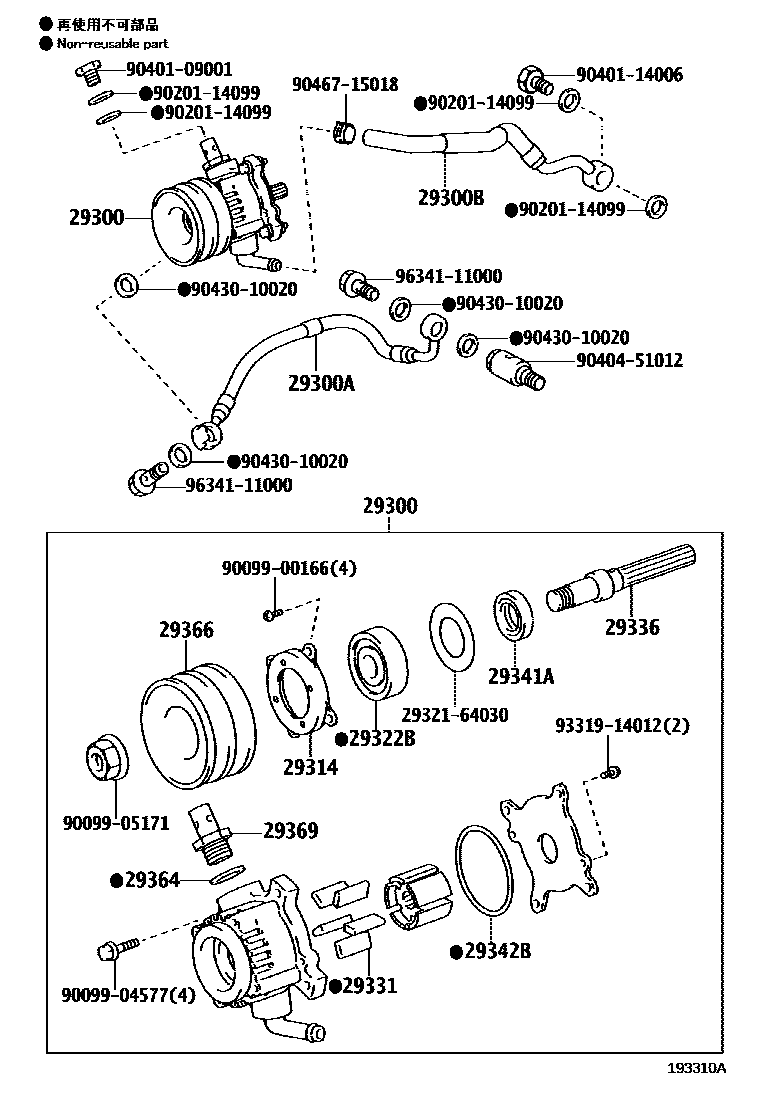

Toyota LAND CRUISER PRADO — VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-11020i1GDFTV..GDJ150¥22,900201506-201708

sub29300-11021¥17,300

main29300-30020i1KDFTV..KDJ150..6F..GCC¥36,900201008-201708

main29300-54150i5LE..LJ150¥28,600200908-201708

main29300-67020i1KDFTV..KDJ150¥33,500200908-201008

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02118i5LE..LJ150¥7,000200908-201506

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54090i5LE..LJ150¥2,810200908-201506

29314RING, STOP

main29314-64030i5LE..LJ150200908-201506

29322BBEARING, VACUUM PUMP

main90099-10227i5LE..LJ150200908-201506

29331BLADE, VACUUM PUMP, A

main29331-54130i5LE..LJ150200908-201506

main29331-67020i1KDFTV..KDJ150..6F..GCC200908-201506

29336SHAFT, VACUUM PUMP

main29336-58050i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC200908-201506

main29336-64031i5LE..LJ150200908-201506

29341ASEAL, OIL

main29341-64030i5LE..LJ150200908-201506

29342PACKING, VACUUM PUMP

main29342-58010i1KDFTV..KDJ150200908-201008

NO.1

main29342-58040i1KDFTV..KDJ150201008-201506

NO.1

main29342-58060i1KDFTV..KDJ150..6F..GCC¥0201008-201506

NO.3

main29342-58070i1KDFTV..KDJ150201008-201506

NO.2

main29342-67020i1KDFTV..KDJ150¥0200908-201008

NO.2

main29342-68010i1KDFTV..KDJ150200908-201008

NO.3

29342BRING, O

main29342-64030i5LE..LJ150200908-201506

29364WASHER, VACUUM PUMP

main29364-66010i1KDFTV..KDJ150..6F..GCC¥180200908-201506

29366PULLEY, VACUUM PUMP

main29366-54110i5LE..LJ150200908-201506

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KDFTV..KDJ150..6F..GCC200908-201506

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099¥230

9040109001

main90401-09001¥180

9040114006

main90401-14006¥520

9040451012

main90404-51012¥180

9043010020

main90430-10020¥130

9046715018

main90467-15018¥250

9331914012

main93319-14012¥70

9634111000

main96341-11000¥160

25 parts on this diagram · 3 diagrams in section
