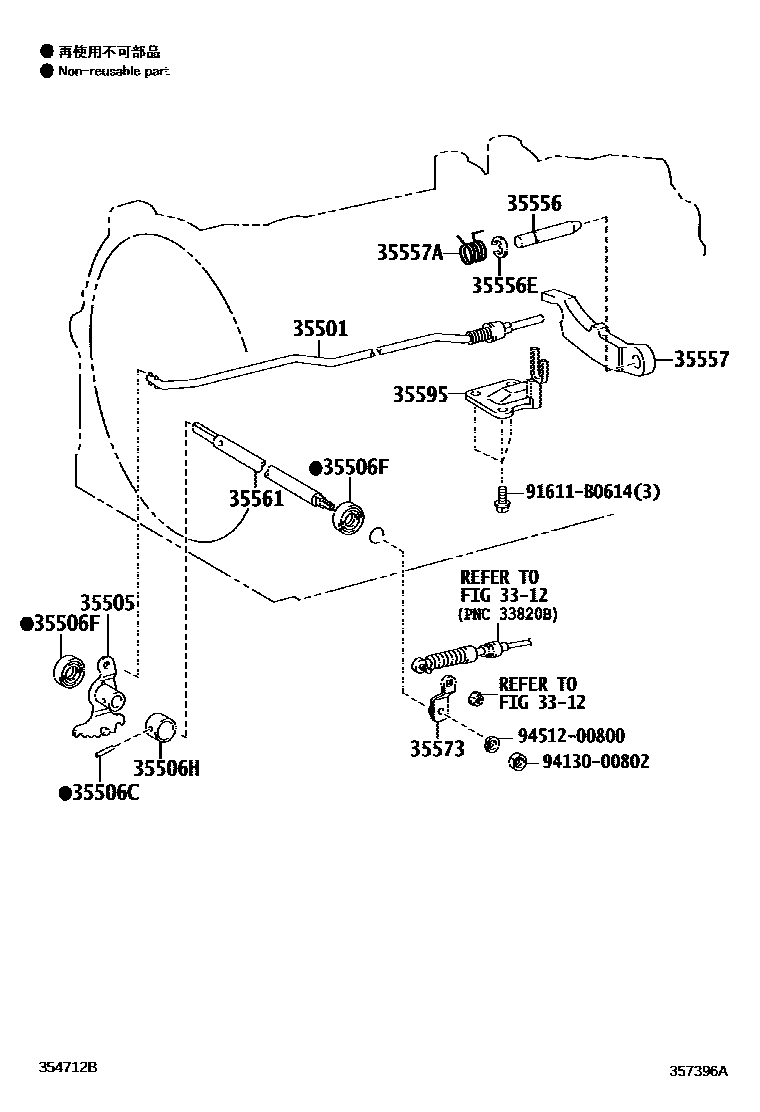

Toyota LAND CRUISER PRADO — THROTTLE LINK & VALVE LEVER (ATM)

0001 1A343F 0002 1A750F 0003 1AC60F

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-60030iGRJ150,KDJ150..5FC¥1,900200908-201308

main35501-60030iKDJ150..5FC¥1,900201506

main35501-60030iGRJ150,KDJ150..5FC¥1,900201308-201506

main35501-71010iTRJ15#..4FC¥2,730201308-201506

main35501-71010iTRJ15#..4FC¥2,730200908-201308

main35501-71020iGDJ150,GRJ150,TRJ15#..6FC¥1,610201506

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26010iGDJ150,GRJ150,TRJ15#..6FC¥870201506

main35505-60030iTRJ15#..4FC¥1,840200908-201308

sub35505-26020¥1,530

main35505-60030iTRJ15#..4FC¥1,840201308-201506

sub35505-26020¥1,530

main35505-60070iGRJ150,KDJ150..5FC¥1,470201308-201506

main35505-60070iGRJ150,KDJ150..5FC¥1,470200908-201308

main35505-60070iKDJ150..5FC¥1,470201506

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRJ150,KDJ150,TRJ15#..ATM¥160201308-201506

main90254-04011iGRJ150,KDJ150,TRJ15#..ATM¥160200908-201308

main90254-04011iGDJ150,GRJ150,KDJ150,TRJ15#..ATM¥160201506

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGRJ150,KDJ150,TRJ15#..ATM¥270201308-201506

main90311-12002iGDJ150,GRJ150,KDJ150,TRJ15#..ATM¥270201506

main90311-12002iGRJ150,KDJ150,TRJ15#..ATM¥270200908-201308

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGDJ150,GRJ150,KDJ150,TRJ15#..ATM¥210201506

main90560-20025iGRJ150,KDJ150,TRJ15#..ATM¥210200908-201308

main90560-20025iGRJ150,KDJ150,TRJ15#..ATM¥210201308-201506

35556SHAFT, PARKING LOCK PAWL

main35556-30020iTRJ15#..4FC¥440200908-201308

main35556-30020iTRJ15#..4FC¥440201308-201506

main35556-60020iGRJ150,KDJ150..5FC¥380200908-201308

main35556-60020iGRJ150,KDJ150..5FC¥380201308-201506

main35556-60020iGDJ150,GRJ150,KDJ150,TRJ15#..ATM¥380201506

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGRJ150,KDJ150,TRJ15#..ATM¥110201308-201506

main90523-08021iGRJ150,KDJ150,TRJ15#..ATM¥110200908-201308

main90523-08021iGDJ150,GRJ150,KDJ150,TRJ15#..ATM¥110201506

35557PAWL, PARKING LOCK

main35557-60020iTRJ15#..4FC¥2,490200908-201308

main35557-60020iTRJ15#..4FC¥2,490201308-201506

main35557-60040iGRJ150,KDJ150..5FC¥3,100200908-201308

main35557-60040iGRJ150,KDJ150..5FC¥3,100201308-201506

main35557-60040iKDJ150..5FC¥3,100201506

main35557-71010iGDJ150,GRJ150,TRJ15#..6FC¥2,810201506

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iTRJ15#..4FC¥190200908-201308

main90508-21002iTRJ15#..4FC¥190201308-201506

main90949-03123iGRJ150,KDJ150..5FC¥120200908-201308

main90949-03123iGRJ150,KDJ150..5FC¥120201308-201506

main90949-03123iGDJ150,GRJ150,KDJ150,TRJ15#..ATM¥120201506

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iTRJ15#..4FC¥2,070201308-201506

main35561-35010iTRJ15#..4FC¥2,070200908-201308

main35561-60030iGRJ150,KDJ150..5FC¥1,860200908-201308

main35561-60030iGRJ150,KDJ150..5FC¥1,860201308-201506

main35561-60030iGDJ150,GRJ150,KDJ150,TRJ15#..ATM¥1,860201506

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-60020iGRJ150,KDJ150,TRJ15#..ATM¥610200908-201308

main35573-60020iGRJ150,KDJ150,TRJ15#..ATM¥610201308-201506

main35573-60020iKDJ150..5FC¥610201506

main35573-71010iGDJ150,GRJ150,TRJ15#..6FC¥510201506

35595BRACKET, PARKING LOCK PAWL

main35595-60010iTRJ15#..4FC¥1,460200908-201308

main35595-60010iTRJ15#..4FC¥1,460201308-201506

main35595-60030iGRJ150,KDJ150..5FC¥730200908-201308

main35595-60030iGRJ150,KDJ150..5FC¥730201308-201506

main35595-60030iKDJ150..5FC¥730201506

main35595-71010iGDJ150,GRJ150,TRJ15#..6FC¥800201506

91611B0614

main91611-B0614¥110

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

16 parts on this diagram · 3 diagrams in section
