Toyota LAND CRUISER PRADO — STARTER

0001 112V 1.4KW 0002 112V 2.2KW 0003 112V 2.7KW 0004 112V 3.0KW 0005 112V 2.2KW 0006 112V 1.4KW 0007 112V 2.0KW 0008 112V 2.0KW

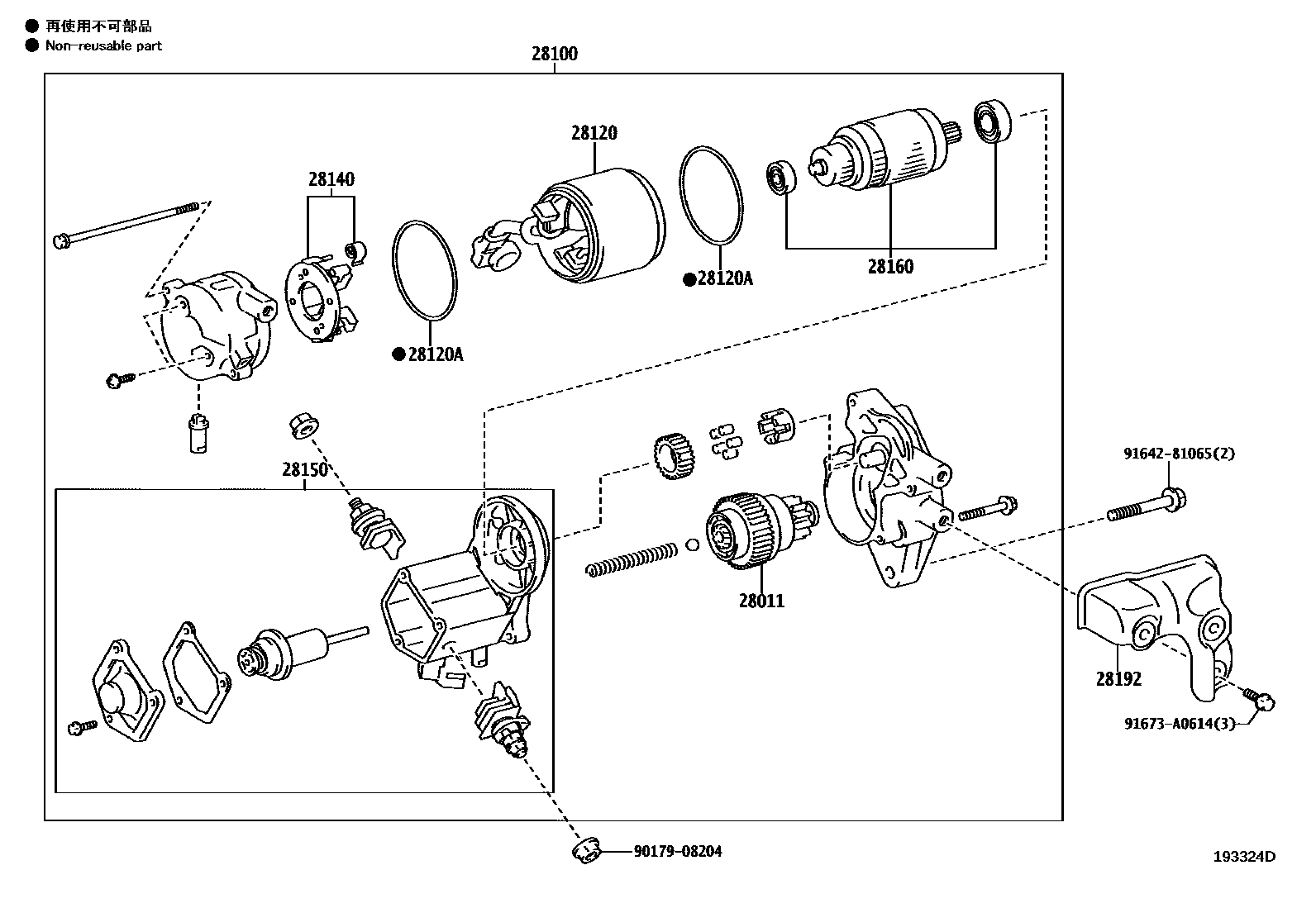

28011CLUTCH SUB-ASSY, STARTER

main28011-54450i5LE..LJ150¥19,500200908-201506

main28011-66020i1GRFE..GRJ150¥12,800200908-201506

main28011-67030i1KDFTV..KDJ150..6F..GCC¥17,600200908-201506

main28011-76070i2TRFE..TRJ150..RHD¥5,400200908-201506

28100STARTER ASSY

main28100-11190i1GDFTV..GDJ150¥76,600201506

12V 2.0KW

main28100-31131i1GRFE..GRJ150¥58,800200908-201506

12V 1.4KW

main28100-54450i5LE..LJ150¥147,000200908-200911

12V 2.2KW

sub28100-54451¥102,000

main28100-54451i5LE..LJ150¥102,000200911-201506

12V 2.2KW

main28100-67050i1KDFTV..KDJ150¥147,000200908-200911

12V 2.2KW

sub28100-67051¥147,000

main28100-67051i1KDFTV..KDJ150¥147,000200911-201407

12V 2.2KW

sub28100-67052¥92,200

main28100-67052i1KDFTV..KDJ150¥92,200201408-201506

12V 2.2KW

main28100-75091i2TRFE..TRJ150..RHD¥66,100200908-201506

12V 1.4KW

28120YOKE ASSY, STARTER

main28120-0L180i1GDFTV..GDJ150¥8,700201506

main28120-64040i1KDFTV..KDJ150..6F..GCC200908-201506

main28120-66040i1GRFE,2TRFE..GRJ150,TRJ15#200908-201506

28120ARING, O(FOR STARTER YOKE)

main90099-14064i1GRFE,2TRFE..GRJ150,TRJ15#200908-201506

28140HOLDER ASSY, STARTER BRUSH

main28140-0L180i1GDFTV..GDJ150¥0201506

main28140-35060i1GRFE..GRJ150200908-201506

main28140-64040i1KDFTV,5LE..KDJ150,LJ150200908-201506

main28140-76070i2TRFE..TRJ15#200908-201506

28150SWITCH ASSY, MAGNET STARTER

main28150-31130i1GRFE..GRJ150¥10,400200908-201506

main28150-40090i1GDFTV..GDJ150¥10,900201506

main28150-54330i5LE..LJ150¥14,500200908-201506

main28150-67050i1KDFTV..KDJ150¥14,500200908-201506

main28150-75130i2TRFE..TRJ15#¥10,400200908-201506

28160ARMATURE ASSY, STARTER

main28160-37100i1GDFTV..GDJ150¥15,700201506

main28160-64041i1KDFTV..KDJ150..6F..GCC¥18,500200908-201506

main28160-74070i2TRFE..TRJ150..LHD;1GRFE,2TRFE..GRJ150,TRJ155200908-201506

28192COVER, STARTER

main28192-31010i1GRFE..GRJ150¥1,670200908-201506

9017908204

main90179-08204¥140

9164281065

main91642-81065¥180

91673A0614

main91673-A0614¥60

11 parts on this diagram · 8 diagrams in section
