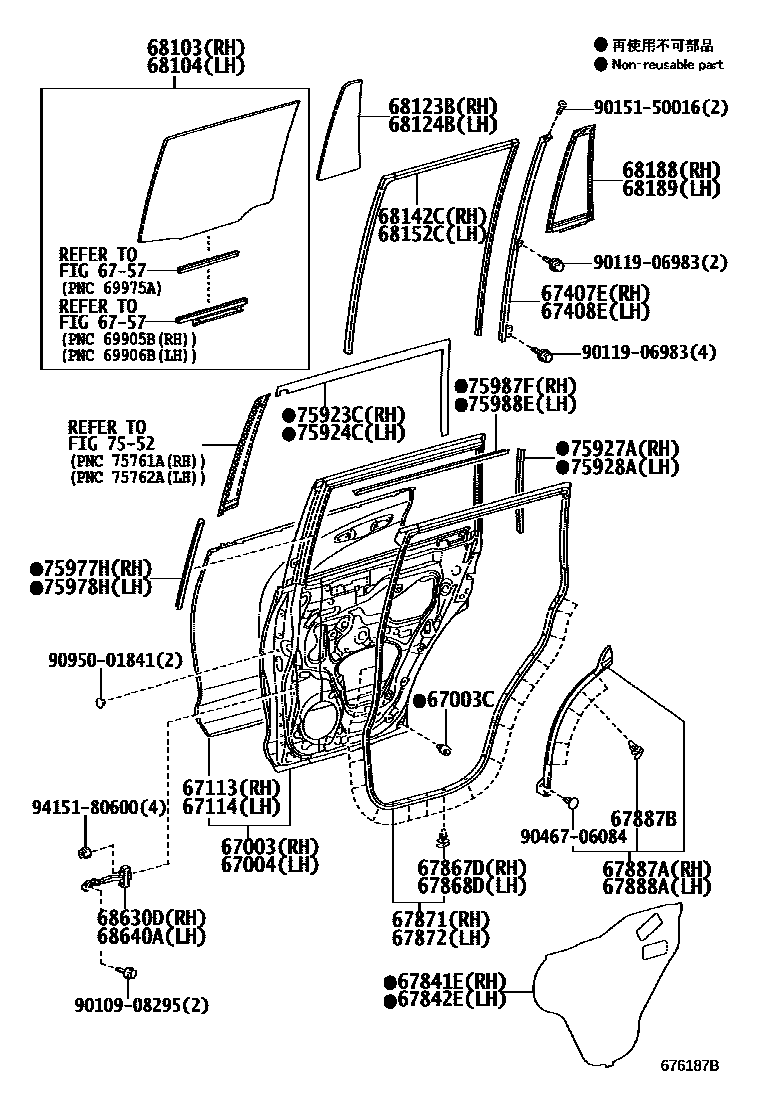

Toyota LAND CRUISER PRADO — REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60470iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥48,500200908-201308

main67003-60470iGRJ150,KDJ150,LJ150,TRJ150¥48,500201308-201506

main67003-60470iTRJ150..RHD;KDJ150..6F..GCC¥48,500200908-201110

main67003-60470iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥48,500201506

67003CCUSHION, REAR DOOR PANEL

main90541-09069iTRJ150..RHD;KDJ150..6F..GCC¥170200908-201110

main90541-09069iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥170200908-201308

main90541-09069iGRJ150,KDJ150,LJ150,TRJ150¥170201308-201506

main90541-09069iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥170201506

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60470iTRJ150..RHD;KDJ150..6F..GCC¥48,500200908-201110

main67004-60470iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥48,500200908-201308

main67004-60470iGRJ150,KDJ150,LJ150,TRJ150¥48,500201308-201506

main67004-60470iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥48,500201506

67113PANEL, REAR DOOR, OUTER RH

main67113-60220iTRJ150..RHD;KDJ150..6F..GCC¥19,400200908-201110

main67113-60220iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥19,400200908-201308

main67113-60220iGRJ150,KDJ150,LJ150,TRJ150¥19,400201308-201506

main67113-60220iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥19,400201506-201708

67114PANEL, REAR DOOR, OUTER LH

main67114-60220iGRJ150,KDJ150,LJ150,TRJ150¥19,400201308-201506

main67114-60220iTRJ150..RHD;KDJ150..6F..GCC¥19,400200908-201110

main67114-60220iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥19,400200908-201308

main67114-60220iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥19,400201506-201708

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60070iTRJ150..RHD;KDJ150..6F..GCC¥2,640200908-201110

main67407-60070iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥2,640200908-201308

main67407-60070iGRJ150,KDJ150,LJ150,TRJ150¥2,640201308-201506

main67407-60070iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥2,640201506

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60070iTRJ150..RHD;KDJ150..6F..GCC¥2,640200908-201110

main67408-60070iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥2,640200908-201308

main67408-60070iGRJ150,KDJ150,LJ150,TRJ150¥2,640201308-201506

main67408-60070iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥2,640201506

6757

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60120iTRJ150..RHD;KDJ150..6F..GCC¥600200908-201110

main67841-60120iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥600200908-201308

main67841-60120iGRJ150,KDJ150,LJ150,TRJ150¥600201308-201506

main67841-60120iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥600201506

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60070iTRJ150..RHD;KDJ150..6F..GCC¥600200908-201110

main67842-60070iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥600200908-201308

main67842-60070iGRJ150,KDJ150,LJ150,TRJ150¥600201308-201506

main67842-60070iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥600201506

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iTRJ150..RHD;KDJ150..6F..GCC¥100200908-201110

main67867-12150iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥100200908-201308

main67867-12150iGRJ150,KDJ150,LJ150,TRJ150¥100201308-201506

main67867-12150iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥100201506

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iTRJ150..RHD;KDJ150..6F..GCC¥100200908-201110

main67867-12150iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥100200908-201308

main67867-12150iGRJ150,KDJ150,LJ150,TRJ150¥100201308-201506

main67867-12150iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥100201506

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60130iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥5,100200908-201308

main67871-60130iTRJ150..RHD;KDJ150..6F..GCC¥5,100200908-201110

main67871-60130iGRJ150,KDJ150,LJ150,TRJ150¥5,100201308-201506

main67871-60130iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥5,100201506

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60130iTRJ150..RHD;KDJ150..6F..GCC¥5,100200908-201110

main67872-60130iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥5,100200908-201308

main67872-60130iGRJ150,KDJ150,LJ150,TRJ150¥5,100201308-201506

main67872-60130iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥5,100201506

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-60020iTRJ150..RHD;KDJ150..6F..GCC¥1,410200908-201110

main67887-60020iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥1,410200908-201308

main67887-60020iGRJ150,KDJ150,LJ150,TRJ150¥1,410201308-201506

main67887-60020iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥1,410201506

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iTRJ150..RHD;KDJ150..6F..GCC¥100200908-201110

main67867-12150iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥100200908-201308

main67867-12150iGRJ150,KDJ150,LJ150,TRJ150¥100201308-201506

main67867-12150iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥100201506

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-60020iTRJ150..RHD;KDJ150..6F..GCC¥1,410200908-201110

main67888-60020iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥1,410200908-201308

main67888-60020iGRJ150,KDJ150,LJ150,TRJ150¥1,410201308-201506

main67888-60020iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥1,410201506

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-60380iTRJ150..RHD;KDJ150..6F..GCC¥11,700200908-201110

main68103-60380iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥11,700200908-201308

main68103-60380iGRJ150,KDJ150,LJ150,TRJ150¥11,700201308-201506

main68103-60380iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥11,700201506

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-60380iTRJ150..RHD;KDJ150..6F..GCC¥11,700200908-201110

main68104-60380iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥11,700200908-201308

main68104-60380iGRJ150,KDJ150,LJ150,TRJ150¥11,700201308-201506

main68104-60380iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥11,700201506

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60340iTRJ150..RHD;KDJ150..6F..GCC200908-201110

main68123-60340iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201308

main68123-60340iGRJ150,KDJ150,LJ150,TRJ150201308-201506

main68123-60340iGDJ150,GRJ150,KDJ150,LJ150,TRJ150201506

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60340iTRJ150..RHD;KDJ150..6F..GCC¥3,460200908-201110

main68124-60340iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥3,460200908-201308

main68124-60340iGRJ150,KDJ150,LJ150,TRJ150¥3,460201308-201506

main68124-60340iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥3,460201506

68142CRUN, REAR DOOR GLASS, RH

main68142-60070iTRJ150..RHD;KDJ150..6F..GCC¥2,360200908-201110

main68142-60070iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥2,360200908-201308

main68142-60070iGRJ150,KDJ150,LJ150,TRJ150¥2,360201308-201506

main68142-60070iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥2,360201506

68152CRUN, REAR DOOR GLASS, LH

main68152-60060iTRJ150..RHD;KDJ150..6F..GCC¥2,360200908-201110

main68152-60060iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥2,360200908-201308

main68152-60060iGRJ150,KDJ150,LJ150,TRJ150¥2,360201308-201506

main68152-60060iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥2,360201506

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60070iTRJ150..RHD;KDJ150..6F..GCC¥1,900200908-201110

main68188-60070iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥1,900200908-201308

main68188-60070iGRJ150,KDJ150,LJ150,TRJ150¥1,900201308-201506

main68188-60070iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥1,900201506

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60070iTRJ150..RHD;KDJ150..6F..GCC¥1,900200908-201110

main68189-60070iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥1,900200908-201308

main68189-60070iGRJ150,KDJ150,LJ150,TRJ150¥1,900201308-201506

main68189-60070iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥1,900201506

68630DCHECK ASSY, REAR DOOR, RH

main68630-60120iTRJ150..RHD;KDJ150..6F..GCC¥4,470200908-201110

sub68630-60140¥3,100

sub68640-60120¥3,100

main68630-60120iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥4,470200908-201308

sub68630-60140¥3,100

sub68640-60120¥3,100

main68630-60120iGRJ150,KDJ150,LJ150,TRJ150¥4,470201308-201506

sub68630-60140¥3,100

sub68640-60120¥3,100

main68630-60120iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥4,470201506-201612

sub68630-60140¥3,100

sub68640-60120¥3,100

main68630-60140iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥3,100201612

68640ACHECK ASSY, REAR DOOR, LH

main68630-60120iTRJ150..RHD;KDJ150..6F..GCC¥4,470200908-201110

sub68630-60140¥3,100

sub68640-60120¥3,100

main68630-60120iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥4,470200908-201308

sub68630-60140¥3,100

sub68640-60120¥3,100

main68630-60120iGRJ150,KDJ150,LJ150,TRJ150¥4,470201308-201506

sub68630-60140¥3,100

sub68640-60120¥3,100

main68630-60120iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥4,470201506-201612

sub68630-60140¥3,100

sub68640-60120¥3,100

main68640-60120iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥3,100201612

7552

75923CTAPE, BLACK OUT, NO.2 RH

main75923-60030iTRJ150..RHD;KDJ150..6F..GCC¥1,360200908-201110

main75923-60030iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥1,360200908-201308

main75923-60030iGRJ150,KDJ150,LJ150,TRJ150¥1,360201308-201506

main75923-60030iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥1,360201506

75924CTAPE, BLACK OUT, NO.2 LH

main75924-60030iTRJ150..LHD;GRJ150,LJ150;KDJ150..ARL,GEN;KDJ150..5FC..GCC¥1,360200908-201308

main75924-60030iTRJ150..RHD;KDJ150..6F..GCC¥1,360200908-201110

main75924-60030iGRJ150,KDJ150,LJ150,TRJ150¥1,360201308-201506

main75924-60030iGDJ150,GRJ150,KDJ150,LJ150,TRJ150¥1,360201506

75927ATAPE, BLACK OUT, NO.4 RH

main75927-60040iGRJ150..ARL,GCC¥630201308-201506

VX PACKAGE

main75927-60040iGRJ150..ARL,GCC¥630201308-201506

VX-L PACKAGE

main75927-60040iGRJ150..ARL,GCC¥630201308-201506

TX-L PACKAGE

main75927-60040iGRJ150..ARL,GCC¥630201506

VX PACKAGE

main75927-60040iGRJ150..ARL,GCC¥630201506

VX-L PACKAGE

main75927-60040iGRJ150..ARL,GCC¥630201506

TX-L PACKAGE

75928ATAPE, BLACK OUT, LH

main75928-60040iGRJ150..ARL,GCC¥630201308-201506

VX PACKAGE

main75928-60040iGRJ150..ARL,GCC¥630201308-201506

VX-L PACKAGE

main75928-60040iGRJ150..ARL,GCC¥630201308-201506

TX-L PACKAGE

main75928-60040iGRJ150..ARL,GCC¥630201506

VX PACKAGE

main75928-60040iGRJ150..ARL,GCC¥630201506

VX-L PACKAGE

main75928-60040iGRJ150..ARL,GCC¥630201506

TX-L PACKAGE

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-60180iGRJ150..ARL,GCC¥630201308-201506

VX PACKAGE

main75977-60180iGRJ150..ARL,GCC¥630201308-201506

VX-L PACKAGE

main75977-60180iGRJ150..ARL,GCC¥630201308-201506

TX-L PACKAGE

main75977-60180iGRJ150..ARL,GCC¥630201506

VX PACKAGE

main75977-60180iGRJ150..ARL,GCC¥630201506

VX-L PACKAGE

main75977-60180iGRJ150..ARL,GCC¥630201506

TX-L PACKAGE

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-60180iGRJ150..ARL,GCC¥630201308-201506

VX PACKAGE

main75978-60180iGRJ150..ARL,GCC¥630201308-201506

VX-L PACKAGE

main75978-60180iGRJ150..ARL,GCC¥630201308-201506

TX-L PACKAGE

main75978-60180iGRJ150..ARL,GCC¥630201506

VX PACKAGE

main75978-60180iGRJ150..ARL,GCC¥630201506

VX-L PACKAGE

main75978-60180iGRJ150..ARL,GCC¥630201506

TX-L PACKAGE

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-60580iGRJ150..ARL,GCC¥750201308-201506

VX PACKAGE

main75987-60580iGRJ150..ARL,GCC¥750201308-201506

VX-L PACKAGE

main75987-60580iGRJ150..ARL,GCC¥750201308-201506

TX-L PACKAGE

main75987-60580iGRJ150..ARL,GCC¥750201506

VX PACKAGE

main75987-60580iGRJ150..ARL,GCC¥750201506

VX-L PACKAGE

main75987-60580iGRJ150..ARL,GCC¥750201506

TX-L PACKAGE

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-60730iGRJ150..ARL,GCC¥750201308-201506

VX PACKAGE

main75988-60730iGRJ150..ARL,GCC¥750201308-201506

VX-L PACKAGE

main75988-60730iGRJ150..ARL,GCC¥750201308-201506

TX-L PACKAGE

main75988-60730iGRJ150..ARL,GCC¥750201506

VX PACKAGE

main75988-60730iGRJ150..ARL,GCC¥750201506

VX-L PACKAGE

main75988-60730iGRJ150..ARL,GCC¥750201506

TX-L PACKAGE

9010908295

main90109-08295¥80

9011906983

main90119-06983¥60

9015150016

main90151-50016¥80

9046706084

main90467-06084¥80

9095001841

main90950-01841¥110

9415180600

main94151-80600¥60

42 parts on this diagram · 2 diagrams in section
