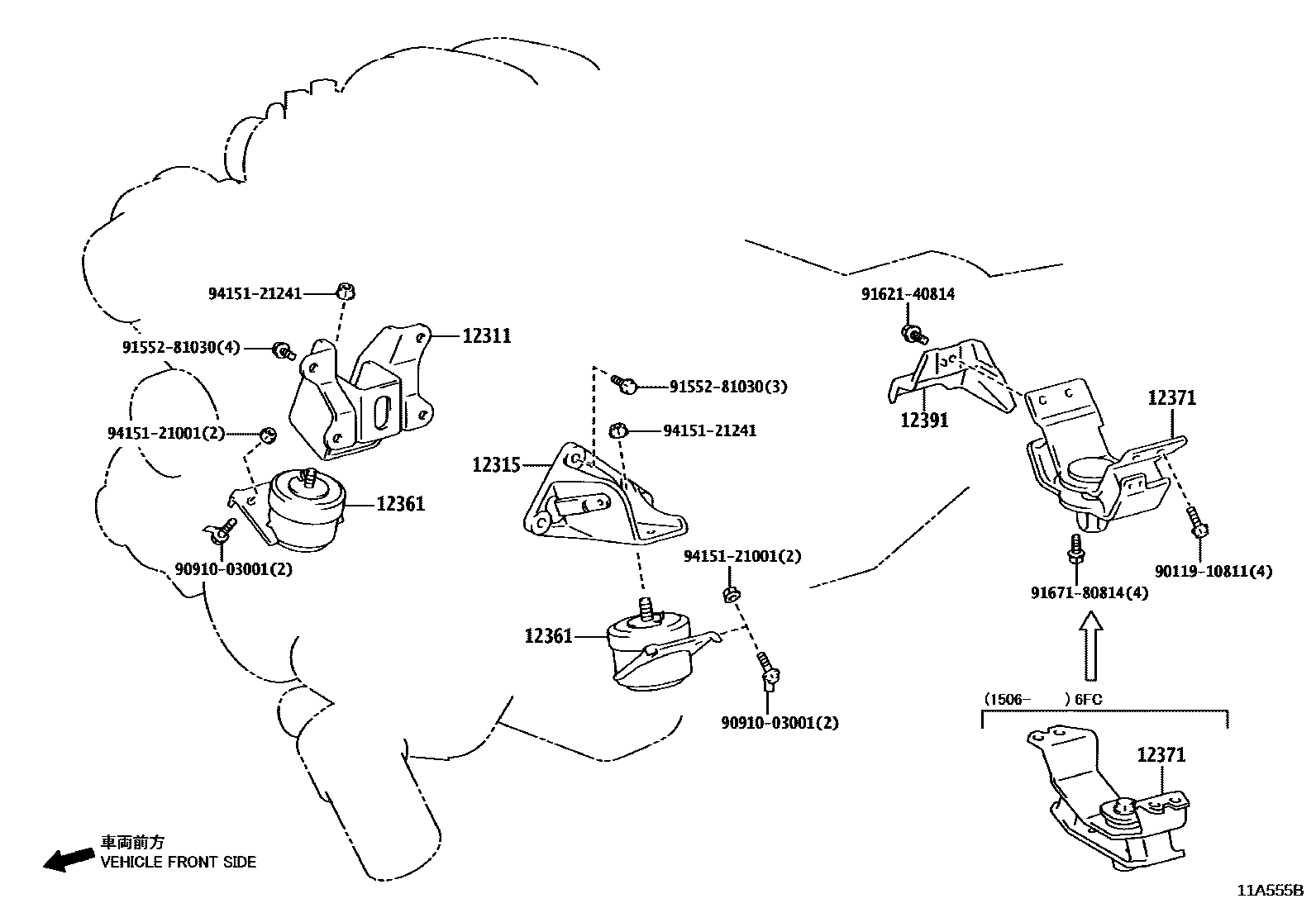

Toyota LAND CRUISER PRADO — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30061i1GDFTV..GDJ150¥2,840200908-201506

main12311-31021i1GRFE..GRJ150¥2,370200908-201506

main12311-54270i5LE..LJ150¥3,480200908-201506

main12311-75090i2TRFE..TRJ15#¥2,900200908-201708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-30061i1KDFTV..KDJ150..6F..GCC¥2,840200908-201506

main12315-31051i1GRFE..GRJ150¥3,160200908-201506

main12315-54060i5LE..LJ150¥3,780200908-201506

main12315-75090i2TRFE..TRJ150..RHD¥3,160200908-201708

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30120i1KDFTV..KDJ150¥17,800200908-201009

sub12361-30140¥17,800

main12361-30140i1KDFTV..KDJ150¥17,800201010-201011

sub12361-30141¥14,700

main12361-30141i1KDFTV..KDJ150¥14,700201011-201703

sub12361-30142¥14,700

main12361-30142i1GDFTV..GDJ150¥14,700201704-201708

sub12361-30143¥12,200

main12361-31290i1GRFE..GRJ150¥6,600200908-201708

main12361-54270i5LE..LJ150200908-201506

main12361-75071i2TRFE..TRJ15#..LHD¥6,300200908-201506

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-11620i1GDFTV..GDJ150..6FC¥5,800201506

main12371-11630i1GDFTV..GDJ150..6F¥6,300201506

main12371-30080i1KDFTV..KDJ150..6F..GCC¥7,600200908-201506

main12371-30090i1KDFTV..KDJ150..5FC200908-201506

main12371-31050i1GRFE..GRJ150¥9,100200908-201111

sub12371-31051¥6,300

main12371-31051i1GRFE..GRJ150..5FC¥6,300201111-201506

main12371-31310i1GRFE..GRJ150..6F201111-201506

main12371-31370i1GRFE..GRJ150..6FC¥5,800201506

main12371-54200i5LE..LJ150¥6,600200908-201506

main12371-75160i2TRFE..TRJ150..LHD..5F200908-201506

main12371-75180i2TRFE..TRJ15#..4FC¥9,100200908-201506

main12371-75190i2TRFE..TRJ15#..6FC¥5,800201506

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-11010i1GDFTV..GDJ150..6F201506

main12391-11020i1GDFTV..GDJ150..6FC¥540201506

main12391-31020i1GRFE..GRJ150¥640200908-201506

main12391-31040i1GRFE..GRJ150..6FC201506

main12391-50070i2TRFE..TRJ150..RHD¥780200908-201506

9011910811

main90119-10811¥110

9091003001

main90910-03001¥380

9155281030

main91552-81030¥100

9162140814

main91621-40814¥90

9167180814

main91671-80814¥80

9415121001

main94151-21001¥100

9415121241

main94151-21241¥100

12 parts on this diagram · 7 diagrams in section
