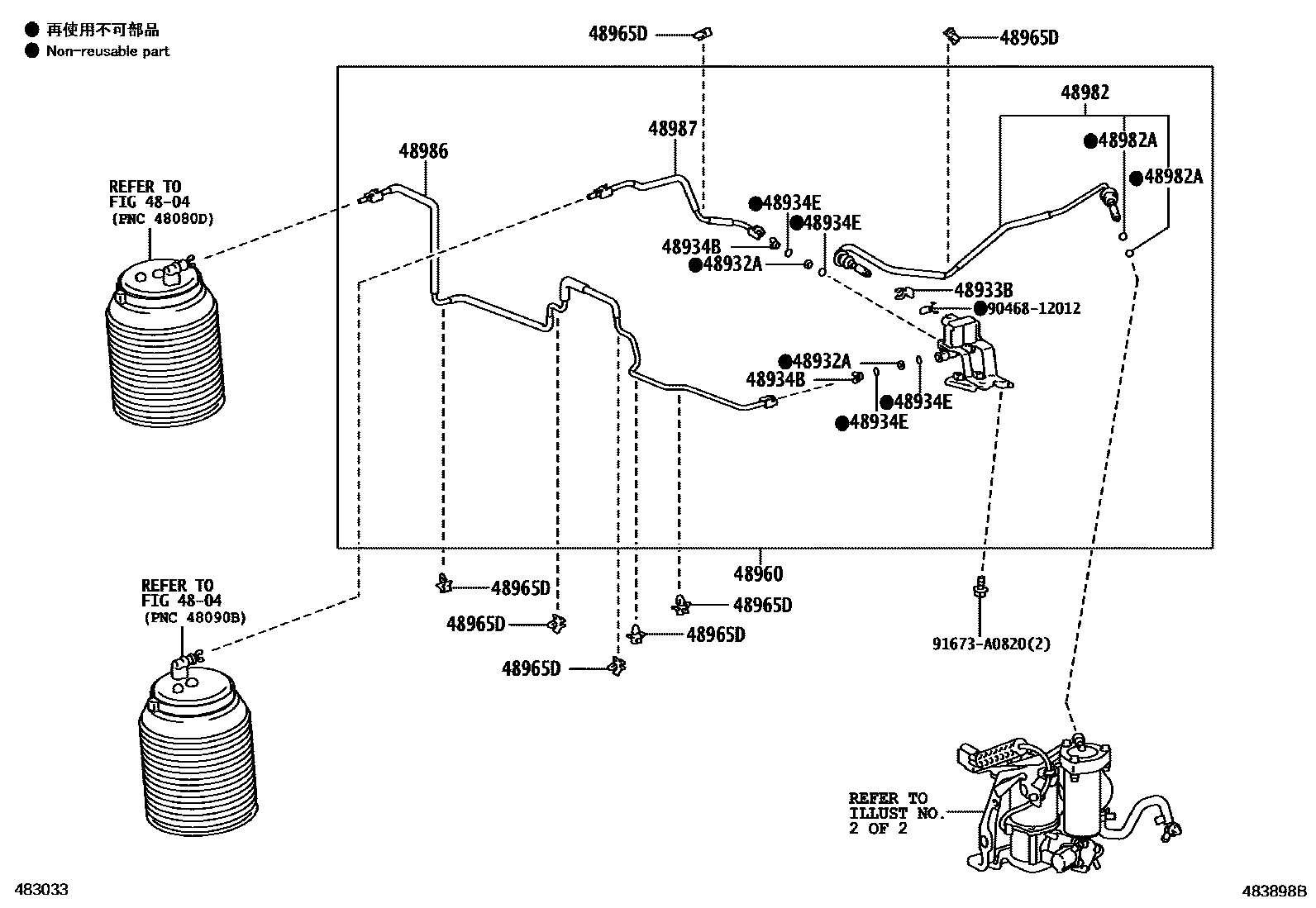

Toyota LAND CRUISER PRADO — HEIGHT CONTROL (AUTO-LEVELER)
4804
48932APLATE, HEIGHT CONTROL TUBE
48933HOLDER, AIR CONNECTOR CLIP
48933BHOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP
48934BCONNECTOR, HEIGHT CONTROL TUBE
48934ERING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
48960VALVE ASSY, HEIGHT CONTROL, NO.2
48965DCLAMP, HEIGHT CONTROL TUBE, NO.2
48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
9046812012
91673A0820
14 parts on this diagram · 2 diagrams in section
