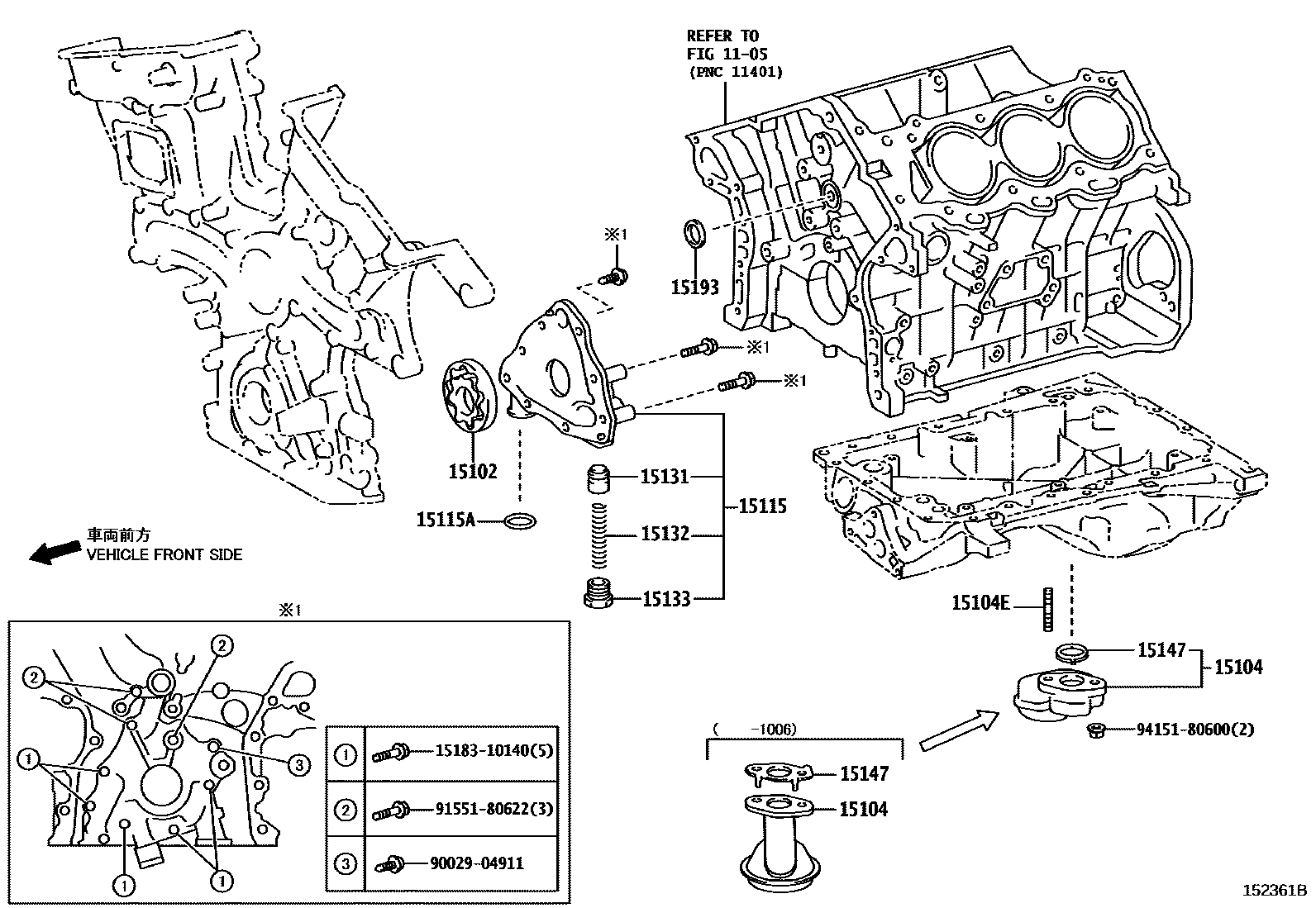

Toyota LAND CRUISER PRADO — ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1105

15102ROTOR SET, OIL PUMP

main15103-31080i1GRFE..GRJ150¥3,740200908-201506

15104STRAINER SUB-ASSY, OIL

main15104-11210i1GDFTV..GDJ150¥6,600201506

main15104-30040i1KDFTV..KDJ150¥3,510200908-201506

main15104-31130i1GRFE..GRJ150¥4,270200908-201006

sub15104-31140¥2,270

main15104-31140i1GRFE..GRJ150¥2,270201006-201506

main15104-54240i5LE..LJ150¥6,000200908-201506

main15104-75120i2TRFE..TRJ15#¥7,000200908-201107

sub15104-75200¥4,510

sub90126-08052¥80

sub91551-80825¥80

main15104-75200i2TRFE..TRJ15#¥4,510201107-201411

main15104-75210i2TRFE..TRJ15#¥3,480201411-201708

sub15104-75211¥3,160

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KDFTV..KDJ150¥100200908-201506

main90126-06029i1GRFE..GRJ150¥60200908-201506

main90126-08037i2TRFE..TRJ15#¥340200908-201107

main90126-08052i2TRFE..TRJ15#¥80201107-201411

main92122-80816i5LE..LJ150¥70200908-201506

15115COVER, OIL PUMP

main15115-31080i1GRFE..GRJ150¥2,030200908-201506

main15115-54022i5LE..LJ150¥1,220200908-201506

15115ARING, O(FOR OIL PUMP COVER)

main96722-24030i1GRFE..GRJ150¥140200908-201506

15131VALVE, OIL PUMP RELIEF

main15131-17010i1GRFE..GRJ150¥360200908-201506

main15131-46040i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥310200908-201708

main15131-54010i5LE..LJ150¥360200908-201506

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KDFTV..KDJ150¥200200908-201506

main15132-46020i1GRFE..GRJ150¥210200908-201506

main15132-54010i5LE..LJ150¥240200908-201506

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KDFTV..KDJ150..6F..GCC¥280200908-201506

main15133-28020i1GRFE..GRJ150¥260200908-201506

main15133-33040i2TRFE..TRJ15#¥260201506-201708

main15133-54010i5LE..LJ150¥310200908-201506

15147GASKET, OIL STRAINER

main15147-31070i1GRFE..GRJ150¥300201006-201506

main15147-46010i1GRFE..GRJ150¥300200908-201006

main15147-75030i2TRFE..TRJ15#¥270200908-201107

main15147-75040i2TRFE..TRJ15#¥460201411-201708

sub15147-75041¥380

15193GASKET, OIL PUMP

main15193-38010i1GRFE..GRJ150¥340200908-201506

main15193-67011i1KDFTV..KDJ150..6F..GCC¥330200908-201506

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140¥210

9002904911

main90029-04911¥90

9155180622

main91551-80622¥60

9415180600

main94151-80600¥60

15 parts on this diagram · 7 diagrams in section
