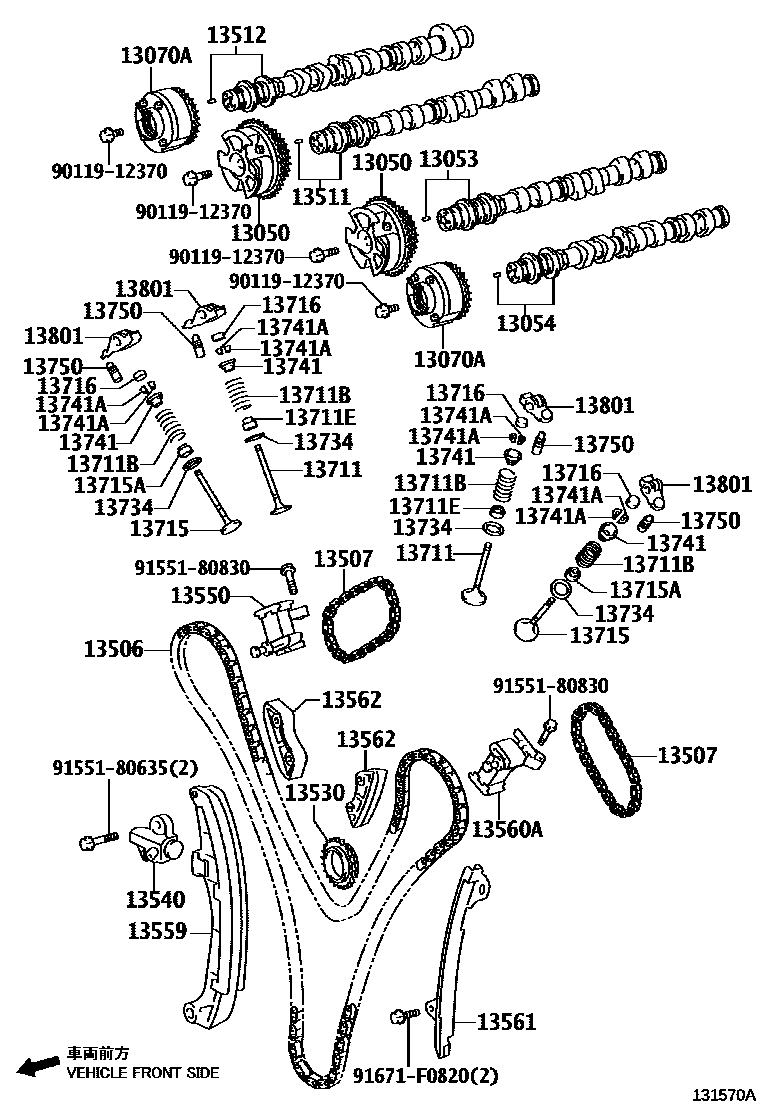

Toyota LAND CRUISER PRADO — CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

13050GEAR ASSY, CAMSHAFT TIMING

main13050-31190i1GRFE..GRJ150¥18,000201506

main13050-31190i1GRFE..GRJ150¥18,000200908-201308

main13050-31190i1GRFE..GRJ150¥18,000201308-201506

main13050-75010i2TRFE..TRJ150..RHD¥28,600200908-201110

main13050-75010i2TRFE..TRJ15#..LHD¥28,600200908-201205

main13050-75030i2TRFE..TRJ15#¥18,000201308-201506

main13050-75030i2TRFE..TRJ15#¥18,000201205-201308

main13050-75040i2TRFE..TRJ15#¥18,000201506-201708

13053CAMSHAFT SUB-ASSY, NO.3

main13053-31090i1GRFE..GRJ150¥34,400200908-201308

main13053-31090i1GRFE..GRJ150¥34,400201506

main13053-31090i1GRFE..GRJ150¥34,400201308-201506

13054CAMSHAFT SUB-ASSY, NO.4

main13054-31090i1GRFE..GRJ150¥34,400200908-201308

main13054-31090i1GRFE..GRJ150¥34,400201308-201506

main13054-31090i1GRFE..GRJ150¥34,400201506

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-31030i1GRFE..GRJ150¥26,800201506

main13070-31030i1GRFE..GRJ150¥26,800201308-201506

main13070-31030i1GRFE..GRJ150¥26,800200908-201308

main13070-75010i2TRFE..TRJ15#¥26,800201506-201708

13506CHAIN SUB-ASSY

main13506-11010i1GDFTV..GDJ150¥6,700201506

sub13506-11011¥4,950

main13506-31040i1GRFE..GRJ150¥11,500201308-201506

main13506-31040i1GRFE..GRJ150¥11,500201506

main13506-31040i1GRFE..GRJ150¥11,500200908-201308

main13506-75050i2TRFE..TRJ150..RHD¥16,000200908-201110

sub13506-75070¥9,900

main13506-75050i2TRFE..TRJ15#..LHD¥16,000200908-201308

sub13506-75070¥9,900

main13506-75050i2TRFE..TRJ15#¥16,000201308-201405

sub13506-75070¥9,900

main13506-75070i2TRFE..TRJ15#¥9,900201405-201506

main13506-75070i2TRFE..TRJ15#¥9,900201506-201708

13507CHAIN SUB-ASSY, NO.2

main13507-11010i1GDFTV..GDJ150¥10,400201506

sub13507-11011¥9,400

main13507-31020i1GRFE..GRJ150¥3,360201506

main13507-31020i1GRFE..GRJ150¥3,360200908-201308

main13507-31020i1GRFE..GRJ150¥3,360201308-201506

main13507-75030i2TRFE..TRJ15#¥6,700201308-201506

main13507-75030i2TRFE..TRJ15#¥6,700201506-201708

main13507-75030i2TRFE..TRJ15#..LHD¥6,700200908-201308

main13507-75030i2TRFE..TRJ150..RHD¥6,700200908-201110

13511CAMSHAFT

main13501-11070i1GDFTV..GDJ150¥27,000201506

main13501-30020i1KDFTV..KDJ150¥28,300201506

main13501-30020i1KDFTV..KDJ150..6F..GCC¥28,300200908-201110

main13501-30020i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥28,300200908-201308

main13501-30020i1KDFTV..KDJ150¥28,300201308-201506

main13501-31120i1GRFE..GRJ150¥34,400201506

main13501-31120i1GRFE..GRJ150¥34,400200908-201308

main13501-31120i1GRFE..GRJ150¥34,400201308-201506

main13501-54090i5LE..LJ150¥28,300200908-201308

main13501-54090i5LE..LJ150¥28,300201308-201506

main13501-54090i5LE..LJ150¥28,300201506

main13501-75060i2TRFE..TRJ15#¥42,800200908-201308

W/O(LOT NO. MARK)

sub13501-75061¥35,700

main13501-75060i2TRFE..TRJ15#¥42,800201308-201403

W/O(LOT NO. MARK)

sub13501-75061¥35,700

main13501-75061i2TRFE..TRJ15#¥35,700201404-201506

W/O(LOT NO. MARK)

sub13501-75071¥27,000

main13501-75061i2TRFE..TRJ15#¥35,700201506-201708

W/O(LOT NO. MARK)

sub13501-75071¥27,000

main13501-75070i2TRFE..TRJ15#¥42,800201308-201401

W(LOT NO. MARK)

sub13501-75071¥27,000

main13501-75070i2TRFE..TRJ15#¥42,800200908-201308

W(LOT NO. MARK)

sub13501-75071¥27,000

main13501-75071i2TRFE..TRJ15#¥27,000201401-201506

W(LOT NO. MARK)

main13501-75071i2TRFE..TRJ15#..6FC¥27,000201506-201708

W(LOT NO. MARK)

13512CAMSHAFT, NO.2

main13502-11070i1GDFTV..GDJ150¥27,000201506

main13502-30010i1KDFTV..KDJ150¥28,300201308-201506

main13502-30010i1KDFTV..KDJ150¥28,300201506

main13502-30010i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥28,300200908-201308

main13502-30010i1KDFTV..KDJ150..6F..GCC¥28,300200908-201110

main13502-31090i1GRFE..GRJ150¥34,400201506

main13502-31090i1GRFE..GRJ150¥34,400201308-201506

main13502-31090i1GRFE..GRJ150¥34,400200908-201308

main13502-75050i2TRFE..TRJ15#¥35,700200908-201308

W/O(LOT NO. MARK)

sub13502-75060¥27,000

main13502-75050i2TRFE..TRJ15#¥35,700201308-201506

W/O(LOT NO. MARK)

sub13502-75060¥27,000

main13502-75060i2TRFE..TRJ15#¥27,000201308-201506

W(LOT NO. MARK)

main13502-75060i2TRFE..TRJ15#¥27,000200908-201308

W(LOT NO. MARK)

main13502-75070i2TRFE..TRJ15#¥30,100201506-201708

W/O(LOT NO. MARK)

sub13502-75080¥27,000

main13502-75080i2TRFE..TRJ15#..6FC¥27,000201506-201708

W(LOT NO. MARK)

13530SPROCKET ASSY, IDLE

main13530-31021i1GRFE..GRJ150¥1,200200908-201308

main13530-31021i1GRFE..GRJ150¥1,200201308-201506

main13530-31021i1GRFE..GRJ150¥1,200201506

13540TENSIONER ASSY, CHAIN, NO.1

main13540-11010i1GDFTV..GDJ150¥2,460201506

main13540-31031i1GRFE..GRJ150¥6,600201506

main13540-31031i1GRFE..GRJ150¥6,600200908-201308

main13540-31031i1GRFE..GRJ150¥6,600201308-201506

main13540-67020i1KDFTV..KDJ150..6F..GCC¥4,780200908-201110

main13540-67020i1KDFTV..KDJ150¥4,780201308-201506

main13540-67020i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥4,780200908-201308

main13540-67020i1KDFTV..KDJ150¥4,780201506

main13540-75030i2TRFE..TRJ150..RHD¥4,110200908-201110

sub13540-75041¥2,590

main13540-75030i2TRFE..TRJ15#..LHD¥4,110200908-201308

sub13540-75041¥2,590

main13540-75030i2TRFE..TRJ15#¥4,110201308-201410

sub13540-75041¥2,590

main13540-75040i2TRFE..TRJ15#¥4,110201411-201506

sub13540-75041¥2,590

main13540-75040i2TRFE..TRJ15#¥4,110201506-201507

sub13540-75041¥2,590

main13540-75041i2TRFE..TRJ15#¥2,590201508-201708

13550TENSIONER ASSY, CHAIN, NO.2

main13550-11010i1GDFTV..GDJ150¥2,590201506

main13550-31020i1GRFE..GRJ150¥6,600201308-201506

main13550-31020i1GRFE..GRJ150¥6,600201506

main13550-31020i1GRFE..GRJ150¥6,600200908-201308

main13550-75010i2TRFE..TRJ150..RHD¥2,590200908-201110

main13550-75010i2TRFE..TRJ15#..LHD¥2,590200908-201308

main13550-75010i2TRFE..TRJ15#¥2,590201308-201506

main13550-75010i2TRFE..TRJ15#¥2,590201506-201708

13559SLIPPER, CHAIN TENSIONER

main13559-11010i1GDFTV..GDJ150¥2,480201506

NO.2

main13559-11020i1GDFTV..GDJ150¥2,480201506

NO.1

main13559-31030i1GRFE..GRJ150¥2,480201506

main13559-31030i1GRFE..GRJ150¥2,480201308-201506

main13559-31030i1GRFE..GRJ150¥2,480200908-201308

main13559-75040i2TRFE..TRJ150..RHD¥5,200200908-201110

sub13559-75060¥3,270

main13559-75040i2TRFE..TRJ15#..LHD¥5,200200908-201308

sub13559-75060¥3,270

main13559-75040i2TRFE..TRJ15#¥5,200201308-201405

sub13559-75060¥3,270

main13559-75060i2TRFE..TRJ15#¥3,270201506-201708

main13559-75060i2TRFE..TRJ15#¥3,270201405-201506

13560ATENSIONER ASSY, CHAIN, NO.3

main13560-11010i1GDFTV..GDJ150¥8,900201506

sub13560-11011¥6,600

main13560-31020i1GRFE..GRJ150¥6,600201506

main13560-31020i1GRFE..GRJ150¥6,600200908-201308

main13560-31020i1GRFE..GRJ150¥6,600201308-201506

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-11010i1GDFTV..GDJ150¥1,090201506

sub13561-11011¥820

main13561-31030i1GRFE..GRJ150¥2,490200908-201308

main13561-31030i1GRFE..GRJ150¥2,490201308-201506

main13561-31030i1GRFE..GRJ150¥2,490201506

main13561-75040i2TRFE..TRJ15#..LHD¥2,700200908-201308

sub13561-75060¥1,700

main13561-75040i2TRFE..TRJ15#¥2,700201308-201405

sub13561-75060¥1,700

main13561-75040i2TRFE..TRJ150..RHD¥2,700200908-201110

sub13561-75060¥1,700

main13561-75060i2TRFE..TRJ15#¥1,700201506-201708

main13561-75060i2TRFE..TRJ15#¥1,700201405-201506

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-11010i1GDFTV..GDJ150¥1,060201506

main13562-31030i1GRFE..GRJ150¥610200908-201308

main13562-31030i1GRFE..GRJ150¥610201308-201506

main13562-31030i1GRFE..GRJ150¥610201506

main13562-75010i2TRFE..TRJ150..RHD¥1,350200908-201110

main13562-75010i2TRFE..TRJ15#..LHD¥1,350200908-201308

main13562-75010i2TRFE..TRJ15#¥1,350201308-201506

main13562-75010i2TRFE..TRJ15#¥1,350201506-201708

13711VALVE, INTAKE

main13711-11030i1GDFTV..GDJ150¥1,210201506

main13711-30030i1KDFTV..KDJ150..6F..GCC¥1,420200908-201110

main13711-30030i1KDFTV..KDJ150¥1,420201506

main13711-30030i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥1,420200908-201308

main13711-30030i1KDFTV..KDJ150¥1,420201308-201506

main13711-31100i1GRFE..GRJ150¥2,260200908-201302

sub13711-31101¥1,410

main13711-31101i1GRFE..GRJ150¥1,410201308-201506

main13711-31101i1GRFE..GRJ150¥1,410201302-201308

main13711-31101i1GRFE..GRJ150¥1,410201506

main13711-54030i5LE..LJ150¥1,420200908-201308

main13711-54030i5LE..LJ150¥1,420201308-201506

main13711-54030i5LE..LJ150¥1,420201506

main13711-75110i2TRFE..TRJ150..RHD¥1,420200908-201110

main13711-75110i2TRFE..TRJ15#..LHD¥1,420200908-201308

main13711-75110i2TRFE..TRJ15#¥1,420201308-201506

main13711-75110i2TRFE..TRJ15#¥1,420201506-201708

13711BSPRING, COMPRESSION(FOR INNER)

main90501-30032i2TRFE..TRJ15#¥180201506-201708

main90501-30032i2TRFE..TRJ15#¥180201405-201506

main90501-32055i2TRFE..TRJ150..RHD¥320200908-201110

main90501-32055i2TRFE..TRJ15#..LHD¥320200908-201308

main90501-32055i2TRFE..TRJ15#¥320201308-201405

main90501-33025i1GRFE..GRJ150¥200200908-201308

main90501-33025i1GRFE..GRJ150¥200201308-201506

main90501-33025i1GRFE..GRJ150¥200201506

main90504-49001i5LE..LJ150¥510201506

main90504-49001i5LE..LJ150¥510201308-201506

main90504-49001i5LE..LJ150¥510200908-201308

main90905-01077i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥200200908-201308

main90905-01077i1KDFTV..KDJ150..6F..GCC¥200200908-201110

main90905-01077i1KDFTV..KDJ150¥200201308-201506

main90905-01077i1KDFTV..KDJ150¥200201506

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101i1GRFE..GRJ150¥270200908-201308

main90913-02101i1GRFE..GRJ150¥270201506-201708

main90913-02101i1GRFE..GRJ150¥270201308-201506

main90913-02117i5LE..LJ150¥270201506

main90913-02117i5LE..LJ150¥270200908-201308

main90913-02117i5LE..LJ150¥270201308-201506

main90913-02121i1KDFTV..KDJ150¥370201506

main90913-02121i1KDFTV..KDJ150..6F..GCC¥370200908-201110

main90913-02121i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥370200908-201308

main90913-02121i1KDFTV..KDJ150¥370201308-201506

main90913-02129i1GDFTV..GDJ150¥370201506-201708

13715VALVE, EXHAUST

main13715-11050i1GDFTV..GDJ150¥1,730201506

main13715-30030i1KDFTV..KDJ150¥1,980201308-201506

main13715-30030i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥1,980200908-201308

main13715-30030i1KDFTV..KDJ150..6F..GCC¥1,980200908-201110

main13715-30030i1KDFTV..KDJ150¥1,980201506

main13715-31140i1GRFE..GRJ150¥2,220201506

main13715-31140i1GRFE..GRJ150¥2,220200908-201308

main13715-31140i1GRFE..GRJ150¥2,220201308-201506

main13715-54050i5LE..LJ150¥1,980200908-201308

main13715-54050i5LE..LJ150¥1,980201308-201506

main13715-54050i5LE..LJ150¥1,980201506

main13715-75100i2TRFE..TRJ15#..LHD¥3,160200908-201304

*125

sub13715-75140¥1,980

main13715-75100i2TRFE..TRJ150..RHD¥3,160200908-201110

*125

sub13715-75140¥1,980

main13715-75100i2TRFE..TRJ15#..4FC¥3,160201108-201304

*272

sub13715-75140¥1,980

main13715-75140i2TRFE..TRJ15#¥1,980201308-201506

*272

main13715-75140i2TRFE..TRJ15#¥1,980201506-201708

*125

main13715-75140i2TRFE..TRJ15#¥1,980201506-201708

*272

main13715-75140i2TRFE..TRJ15#¥1,980201308-201506

*125

main13715-75140i2TRFE..TRJ15#..4FC¥1,980201304-201308

*272

main13715-75140i2TRFE..TRJ15#..4FC¥1,980201304-201308

*125

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112i1GRFE..GRJ150¥270200908-201308

main90913-02112i1GRFE..GRJ150¥270201308-201506

main90913-02112i1GRFE..GRJ150¥270201506-201708

main90913-02117i5LE..LJ150¥270200908-201308

main90913-02117i5LE..LJ150¥270201506

main90913-02117i5LE..LJ150¥270201308-201506

main90913-02121i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥370200908-201308

main90913-02121i1KDFTV..KDJ150¥370201308-201506

main90913-02121i1KDFTV..KDJ150¥370201506

main90913-02121i1KDFTV..KDJ150..6F..GCC¥370200908-201110

main90913-02129i1GDFTV..GDJ150¥370201506-201708

13716CAP, VALVE STEM

main13716-33010i1GDFTV..GDJ150¥70201506

main13716-75020i1GRFE..GRJ150¥70200908-201308

main13716-75020i2TRFE..TRJ15#¥70201308-201506

main13716-75020i2TRFE..TRJ15#¥70201506-201708

main13716-75020i1GRFE..GRJ150¥70201506

main13716-75020i2TRFE..TRJ150..RHD¥70200908-201110

13734SEAT, VALVE SPRING

main13734-62020i2TRFE..TRJ150..RHD¥60200908-201110

main13734-62020i2TRFE..TRJ15#..LHD¥60200908-201308

main13734-62020i2TRFE..TRJ15#¥60201308-201506

main13734-62020i2TRFE..TRJ15#¥60201506-201708

main13734-62020i1GRFE..GRJ150¥60201506

13741RETAINER, VALVE SPRING

main13741-15020i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥240200908-201308

main13741-15020i1KDFTV..KDJ150¥240201506

main13741-15020i1KDFTV..KDJ150..6F..GCC¥240200908-201110

main13741-15020i1KDFTV..KDJ150¥240201308-201506

main13741-20021i2TRFE..TRJ150..RHD¥220200908-201110

main13741-20021i2TRFE..TRJ15#..LHD¥220200908-201308

main13741-20021i2TRFE..TRJ15#¥220201308-201405

main13741-31020i1GRFE..GRJ150¥230200908-201308

main13741-31020i1GRFE..GRJ150¥230201308-201506

main13741-31020i1GRFE..GRJ150¥230201506

main13741-36010i2TRFE..TRJ15#¥160201506-201708

main13741-36010i2TRFE..TRJ15#¥160201405-201506

main13741-54020i5LE..LJ150¥260201506

main13741-54020i5LE..LJ150¥260201308-201506

main13741-54020i5LE..LJ150¥260200908-201308

main90913-03021i1GDFTV..GDJ150¥180201506

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i5LE..LJ150¥200200908-201308

main90913-03014i5LE..LJ150¥200201308-201506

main90913-03014i5LE..LJ150¥200201506

main90913-03021i1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC¥180200908-201308

main90913-03021i1KDFTV..KDJ150..6F..GCC¥180200908-201110

main90913-03021i1KDFTV..KDJ150¥180201308-201506

main90913-03021i1KDFTV..KDJ150¥180201506

main90913-03028i1GRFE..GRJ150¥270200908-201308

main90913-03028i1GRFE..GRJ150¥270201506

main90913-03028i2TRFE..TRJ15#¥270201308-201506

main90913-03028i2TRFE..TRJ15#¥270201506-201708

main90913-03028i2TRFE..TRJ150..RHD¥270200908-201110

13750ADJUSTER ASSY, VALVE LASH

main13750-21010i2TRFE..TRJ15#¥850201506-201708

main13750-21010i2TRFE..TRJ15#¥850201405-201506

main13750-26010i1GDFTV..GDJ150¥4,310201506

main13750-31030i1GRFE..GRJ150¥850201506

main13750-31030i1GRFE..GRJ150¥850200908-201308

main13750-31030i1GRFE..GRJ150¥850201308-201506

main13750-75020i2TRFE..TRJ15#¥930201308-201405

main13750-75020i2TRFE..TRJ15#..LHD¥930200908-201308

main13750-75020i2TRFE..TRJ150..RHD¥930200908-201110

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-11010i1GDFTV..GDJ150¥2,770201506

sub13801-11011¥2,770

main13801-23011i1GRFE..GRJ150¥1,990200908-201308

main13801-23011i2TRFE..TRJ150..RHD¥1,990200908-201110

main13801-23011i2TRFE..TRJ15#¥1,990201308-201405

main13801-23011i1GRFE..GRJ150¥1,990201308-201506

main13801-23011i1GRFE..GRJ150¥1,990201506

main13801-36020i2TRFE..TRJ15#¥2,090201405-201506

main13801-36020i2TRFE..TRJ15#¥2,090201506-201708

9011912370

main90119-12370¥240

9155180635

main91551-80635¥80

9155180830

main91551-80830¥80

91671F0820

main91671-F0820¥80

30 parts on this diagram · 7 diagrams in section
