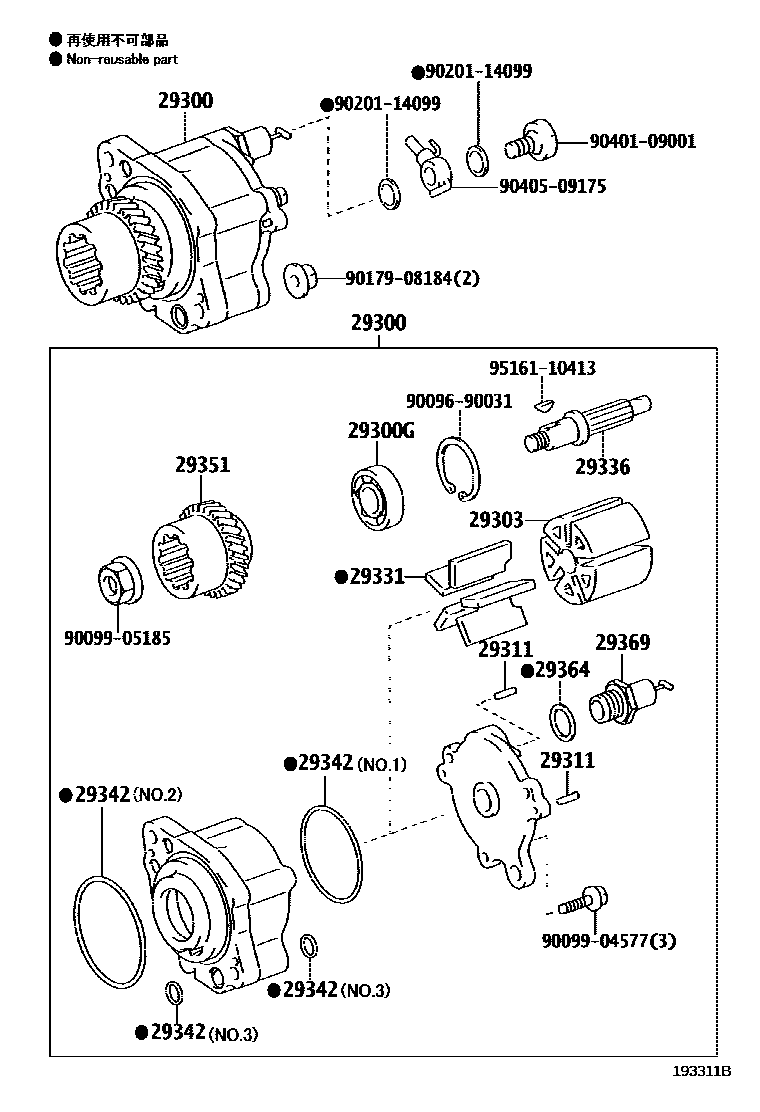

Toyota LAND CRUISER PRADO — VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-11020i1GDFTV..GDJ15#¥22,900201506-201708

sub29300-11021¥17,300

main29300-30020i1KDFTV..KDJ15#¥36,900201008-201708

main29300-67020i1KDFTV..KDJ15#¥33,500200908-201008

29300GBEARING, BALL

main90099-10185i1KDFTV..KDJ150200908-201607

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1KDFTV..KDJ15#200908-201607

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i1KDFTV..KDJ15#¥140200908-201607

29331BLADE, VACUUM PUMP, A

main29331-67020i1KDFTV..KDJ15#200908-201607

29336SHAFT, VACUUM PUMP

main29336-58050i1KDFTV..KDJ15#200908-201607

29342PACKING, VACUUM PUMP

main29342-58010i1KDFTV..KDJ15#200908-201008

NO.1

main29342-58040i1KDFTV..KDJ155201008-201607

NO.1

main29342-58060i1KDFTV..KDJ155¥0201008-201607

NO.3

main29342-58070i1KDFTV..KDJ15#201008-201607

NO.2

main29342-67020i1KDFTV..KDJ15#¥0200908-201008

NO.2

main29342-68010i1KDFTV..KDJ15#200908-201008

NO.3

29351GEAR, VACUUM PUMP

main29351-67020i1KDFTV..KDJ15#¥0200908-201607

29364WASHER, VACUUM PUMP

main29364-66010i1KDFTV..KDJ15#¥180200908-201607

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KDFTV..KDJ15#200908-201607

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017908184

main90179-08184¥90

9020114099

main90201-14099¥230

9040109001

main90401-09001¥180

9040509175

main90405-09175¥400

9516110413

main95161-10413¥0

18 parts on this diagram · 2 diagrams in section
