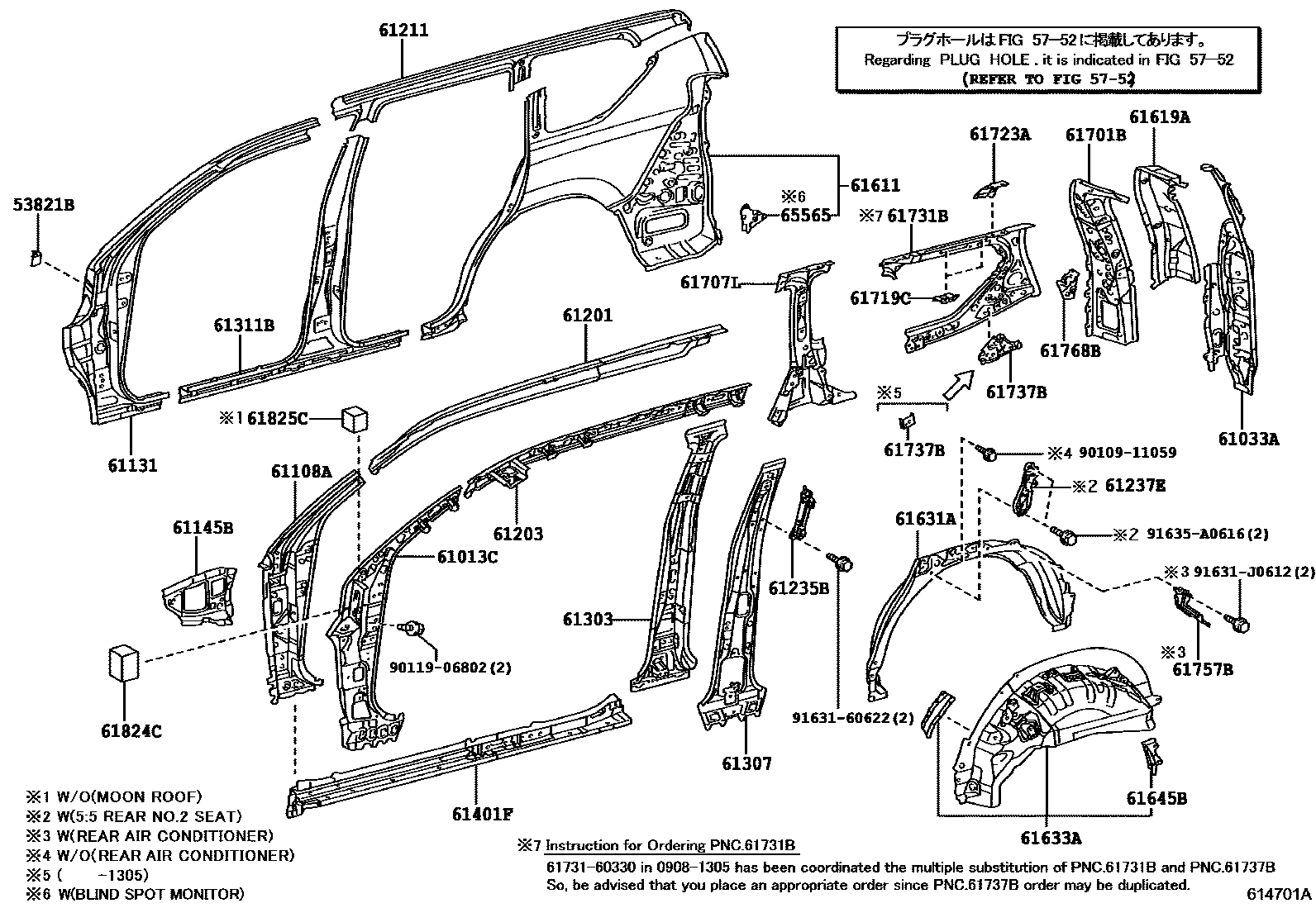

Toyota LAND CRUISER PRADO — SIDE MEMBER

0001 1RH SIDE 0002 1LH SIDE 0003 1RH SIDE 0004 1LH SIDE

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48020iKDJ15#;GRJ150..LHD¥400200908-201607

5752

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-60040iGRJ150..RHD¥20,700200908-201201

sub61013-60041¥14,400

main61013-60041iGRJ150,KDJ150¥14,400201202-201506

main61013-60050iKDJ155200908-201109

sub61013-60051

main61013-60051iKDJ155201110-201607

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61033-60180iGDJ15#,GRJ150,KDJ150¥12,400200908-201607

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-60900iGRJ150,KDJ15#¥12,100200908-201607

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-60260iGRJ150..RHD¥16,800200908-201506

main61131-60320iKDJ155200908-201607

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61015-60010iGRJ150..RHD¥3,490200908-201607

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-60020iGRJ150..RHD¥9,800200908-201506

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-60030iGDJ155200908-201607

main61203-60040iKDJ150;GRJ150..LHD¥9,200200908-201506

61211RAIL, ROOF SIDE, OUTER RH

main61211-60080iGRJ150..RHD¥8,600200908-201506

main61211-60090iKDJ155200908-201607

61235BBRACKET, ASSIST GRIP

main61237-60030iGRJ150..RHD¥1,060200908-201506

61237EBRACKET, ASSIST GRIP, NO.1

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-60100iGDJ150,GRJ150,KDJ150¥23,800200908-201506

main61303-60110iKDJ155200908-201607

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-60310iGDJ155200908-201607

main61307-60900iGRJ150..RHD¥18,400200908-201506

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60190iGRJ150,KDJ150¥14,900200908-201506

61401FREINFORCEMENT SUB-ASSY, ROCKER PANEL, RH

main61401-60900iGRJ150..RHD¥22,500200908-201506

main61401-60901iKDJ155¥16,500200908-201607

61611PANEL, QUARTER, RH

main60161-60B70iGRJ150..RHD¥51,700200908-201506

main60161-60B80iKDJ155200908-201607

61619AREINFORCEMENT, QUARTER PANEL

main61619-60100iGRJ150..RHD¥7,900200908-201607

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-60140iKDJ155200908-201607

main61631-60919iGDJ150,GRJ150,KDJ150¥8,900200908-201506

sub61631-60921¥8,900

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-60907iGRJ150,KDJ150¥18,700200908-201105

sub61633-60913¥12,900

main61633-60911iKDJ155200908-201607

sub61633-60918

main61633-60913iGDJ150,GRJ150,KDJ150¥12,900201105-201506

sub61633-60915¥12,900

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-60070iGRJ150..RHD¥990200908-201607

61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

main61077-60050iKDJ155200908-201607

main61701-60200iKDJ150;GRJ150..LHD¥13,700200908-201506

61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH

main61707-60900iGRJ150..RHD¥13,700200908-201506

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-60040iKDJ150;GRJ150..LHD¥590200908-201506

61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1

main61723-60020iGRJ150,KDJ150¥1,170200908-201506

main61723-60030iKDJ155200908-201607

61731BPANEL, ROOF SIDE, INNER RH

main61731-60330iGRJ150..RHD¥12,100200908-201305

sub61731-60331¥8,400

sub61737-60090¥1,270

main61731-60331iGRJ150,KDJ150¥8,400201305-201506

main61731-60340iGDJ155200908-201607

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61737-60060iKDJ155200908-201607

main61737-60080iKDJ150;GRJ150..LHD¥530200908-201305

main61737-60090iGRJ150,KDJ150¥1,270201305-201506

61757BRETAINER, DECK SIDE TRIM, LOWER

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-60100iGRJ150..RHD¥1,030200908-201506

main61768-60110iGDJ155200908-201607

61824CPAD, NOISE SHUTTER, NO.1

main61824-35020iKDJ15#;GRJ150..LHD¥650200908-201607

61825CPAD, NOISE SHUTTER, NO.2

main61825-35010iGRJ150..RHD¥570200908-201607

65565PATCH, SIDE PANEL REAR END, RH

main65565-60010¥1,520

9010911059

main90109-11059¥240

9011906802

main90119-06802¥60

9163160622

main91631-60622¥70

91631J0612

main91631-J0612¥110

91635A0616

main91635-A0616¥60

37 parts on this diagram · 4 diagrams in section
