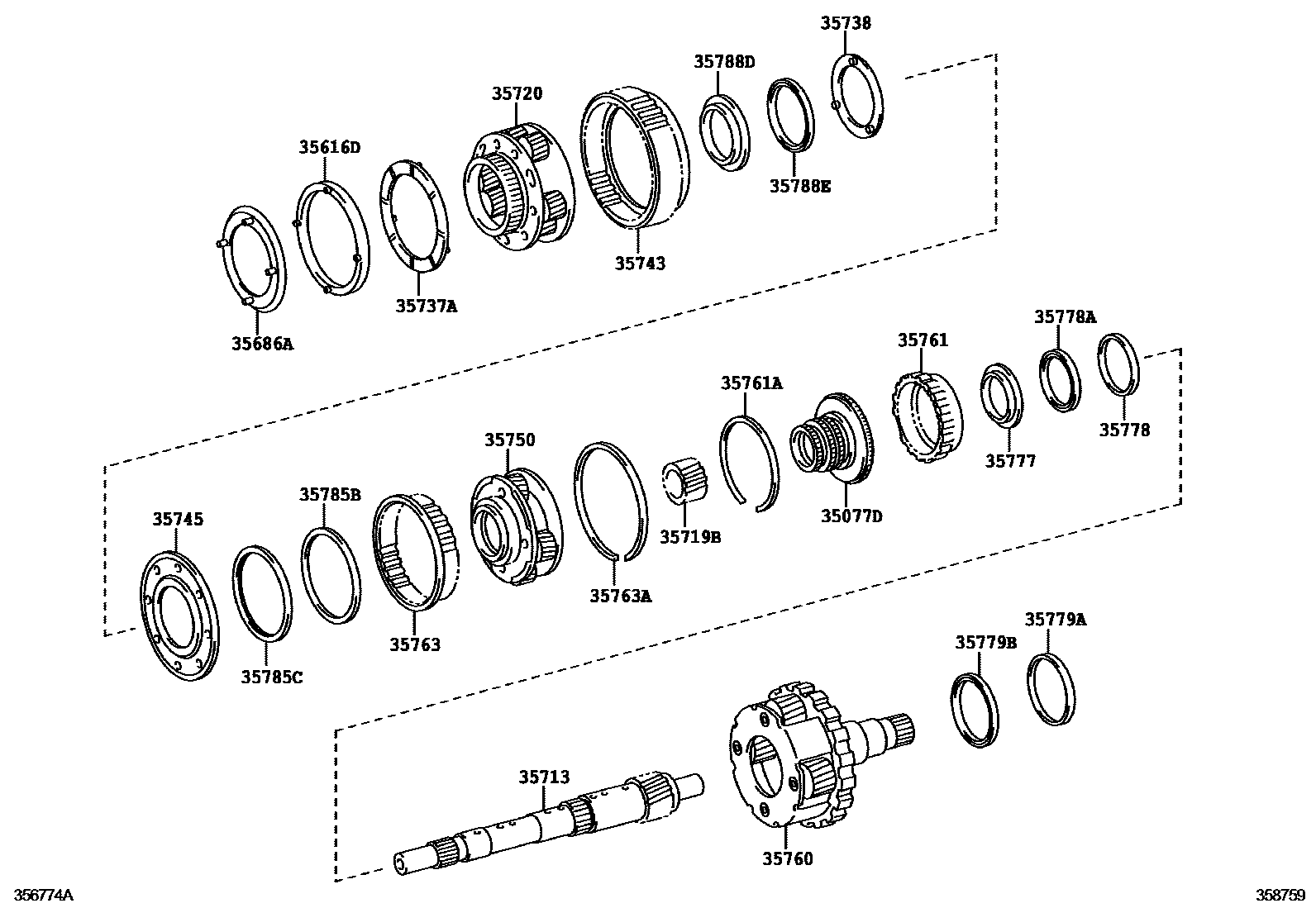

Toyota LAND CRUISER PRADO — PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A750F 0002 1AC60F

35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR

main35077-60010iGRJ150..RHD¥9,100200908-201110

main35077-60010iGRJ150..LHD;KDJ15#..5FC¥9,100200908-201308

main35077-60010iGRJ150,KDJ15#..5FC¥9,100201308-201506

main35077-60010iKDJ155..5FC¥9,100201506-201607

main35077-60010iKDJ150..5FC¥9,100201506

main35077-71010iGDJ15#,GRJ150..6FC¥8,200201506

35616DWASHER, CLUTCH DRUM THRUST

main35616-60010iGRJ150..RHD¥860200908-201110

main35616-60010iGRJ150..LHD;KDJ15#..5FC¥860200908-201308

main35616-60010iGRJ150,KDJ15#..5FC¥860201308-201506

main35616-60010iKDJ155..5FC¥860201506-201607

main35616-60010iKDJ150..5FC¥860201506

35686AWASHER, CLUTCH DRUM THRUST, NO.2

main35686-60010iGRJ150..RHD¥400200908-201110

main35686-60010iGRJ150..LHD;KDJ15#..5FC¥400200908-201308

main35686-60010iGRJ150,KDJ15#..5FC¥400201308-201506

main35686-60010iKDJ155..5FC¥400201506-201607

main35686-60010iKDJ150..5FC¥400201506

35713SHAFT, INTERMEDIATE

main35713-60050iGRJ150..RHD¥11,000200908-201110

main35713-60050iGRJ150..LHD;KDJ15#..5FC¥11,000200908-201308

main35713-60050iGRJ150,KDJ15#..5FC¥11,000201308-201506

main35713-60050iKDJ155..5FC¥11,000201506-201607

main35713-60050iKDJ150..5FC¥11,000201506

main35713-71010iGDJ15#,GRJ150..6FC¥10,000201506

35719BGEAR, PLANETARY SUN

main35719-60050iGRJ150..RHD¥4,680200908-201110

main35719-60050iGRJ150..LHD;KDJ15#..5FC¥4,680200908-201308

main35719-60050iGRJ150,KDJ15#..5FC¥4,680201308-201506

main35719-60050iKDJ155..5FC¥4,680201506-201607

main35719-60050iKDJ150..5FC¥4,680201506

main35719-71010iGDJ15#,GRJ150..6FC¥4,250201506

35720GEAR ASSY, FRONT PLANETARY

main35720-60070iGRJ150..RHD¥39,600200908-201110

main35720-60070iGRJ150..LHD;KDJ15#..5FC¥39,600200908-201308

main35720-60070iGRJ150,KDJ15#..5FC¥39,600201308-201506

main35720-60070iKDJ155..5FC¥39,600201506-201607

main35720-60070iKDJ150..5FC¥39,600201506

main35720-71010iGDJ15#,GRJ150..6FC¥30,300201506

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-60030iGRJ150..RHD¥1,350200908-201110

main35737-60030iGRJ150..LHD;KDJ15#..5FC¥1,350200908-201308

main35737-60030iGRJ150,KDJ15#..5FC¥1,350201308-201506

main35737-60030iKDJ155..5FC¥1,350201506-201607

main35737-60030iKDJ150..5FC¥1,350201506

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-60030iGRJ150..RHD¥790200908-201110

main35738-60030iGRJ150..LHD;KDJ15#..5FC¥790200908-201308

main35738-60030iGRJ150,KDJ15#..5FC¥790201308-201506

main35738-60030iKDJ155..5FC¥790201506-201607

main35738-60030iKDJ150..5FC¥790201506

35743GEAR, FRONT PLANETARY RING

main35743-60060iGRJ150..RHD¥8,000200908-201110

main35743-60060iGRJ150..LHD;KDJ15#..5FC¥8,000200908-201308

main35743-60060iGRJ150,KDJ15#..5FC¥8,000201308-201506

main35743-60060iKDJ155..5FC¥8,000201506-201607

main35743-60060iKDJ150..5FC¥8,000201506

main35743-71010iGDJ15#,GRJ150..6FC¥8,500201506

35745FLANGE, FRONT PLANETARY RING GEAR

main35745-60010iGRJ150..RHD¥1,470200908-201110

main35745-60010iGRJ150..LHD;KDJ15#..5FC¥1,470200908-201308

main35745-60010iGRJ150,KDJ15#..5FC¥1,470201308-201506

main35745-60010iKDJ155..5FC¥1,470201506-201607

main35745-60010iKDJ150..5FC¥1,470201506

35750GEAR ASSY, CENTER PLANETARY

main35750-60010iGRJ150..RHD¥18,500200908-201110

main35750-60010iGRJ150..LHD;KDJ15#..5FC¥18,500200908-201308

main35750-60010iGRJ150,KDJ15#..5FC¥18,500201308-201506

main35750-60010iKDJ155..5FC¥18,500201506-201607

main35750-60010iKDJ150..5FC¥18,500201506

main35750-60030iGRJ150201506

main35750-71010iGDJ15#..6FC¥20,200201506

35760GEAR ASSY, REAR PLANETARY

main35760-60061iGRJ150..RHD¥39,300200908-201110

main35760-60061iGRJ150..LHD;KDJ15#..5FC¥39,300200908-201308

main35760-60061iGRJ150,KDJ15#..5FC¥39,300201308-201506

main35760-60061iKDJ155..5FC¥39,300201506-201607

main35760-60061iKDJ150..5FC¥39,300201506

main35760-60150iGRJ150201506

main35760-71030iGDJ15#..6FC¥35,700201506

35761GEAR, REAR PLANETARY RING

main35761-60040iGRJ150..RHD¥17,100200908-201110

main35761-60040iGRJ150..LHD;KDJ15#..5FC¥17,100200908-201308

main35761-60040iGRJ150,KDJ15#..5FC¥17,100201308-201506

main35761-60040iKDJ155..5FC¥17,100201506-201607

main35761-60040iKDJ150..5FC¥17,100201506

main35761-71010iGDJ15#,GRJ150..6FC¥8,500201506

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90520-99073iGRJ150..RHD¥190200908-201110

main90520-99073iGRJ150..LHD;KDJ15#..5FC¥190200908-201308

main90520-99073iGRJ150,KDJ15#..5FC¥190201308-201506

main90520-99073iKDJ155..5FC¥190201506-201607

main90520-99073iKDJ150..5FC¥190201506

35763GEAR, CENTER PLANETARY RING

main35763-60020iGRJ150..RHD¥7,400200908-201110

main35763-60020iGRJ150..LHD;KDJ15#..5FC¥7,400200908-201308

main35763-60020iGRJ150,KDJ15#..5FC¥7,400201308-201506

main35763-60020iKDJ155..5FC¥7,400201506-201607

main35763-60020iKDJ150..5FC¥7,400201506

main35763-71010iGDJ15#,GRJ150..6FC¥6,700201506

35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)

main90520-99076iGRJ150..RHD¥120200908-201110

main90520-99076iGRJ150..LHD;KDJ15#..5FC¥120200908-201308

main90520-99076iGRJ150,KDJ15#..5FC¥120201308-201506

main90520-99076iKDJ155..5FC¥120201506-201607

main90520-99076iKDJ150..5FC¥120201506

main90520-99161iGDJ15#,GRJ150..6FC¥190201506

35777RACE, THRUST BEARING, NO.7

main35777-60010iGRJ150..RHD¥520200908-201110

main35777-60010iGRJ150..LHD;KDJ15#..5FC¥520200908-201308

main35777-60010iGRJ150,KDJ15#..5FC¥520201308-201506

main35777-60010iKDJ155..5FC¥520201506-201607

main35777-60010iGDJ15#,GRJ150,KDJ150..ATM¥520201506

35778RACE, THRUST BEARING, NO.8

main35778-60010iGRJ150..RHD¥1,020200908-201110

main35778-60010iGRJ150..LHD;KDJ15#..5FC¥1,020200908-201308

main35778-60010iGRJ150,KDJ15#..5FC¥1,020201308-201506

main35778-60010iKDJ155..5FC¥1,020201506-201607

main35778-60010iGDJ15#,GRJ150,KDJ150..ATM¥1,020201506

35778ABEARING, THRUST NEEDLE ROLLER

main90374-32010iGRJ150..RHD¥1,320200908-201110

main90374-32010iGRJ150..LHD;KDJ15#..5FC¥1,320200908-201308

main90374-32010iGRJ150,KDJ15#..5FC¥1,320201308-201506

main90374-32010iKDJ155..5FC¥1,320201506-201607

main90374-32010iGDJ15#,GRJ150,KDJ150..ATM¥1,320201506

35779ARACE, THRUST BEARING, NO.9

main35779-60011iGRJ150..RHD¥670200908-201110

main35779-60011iGRJ150..LHD;KDJ15#..5FC¥670200908-201308

main35779-60011iGRJ150,KDJ15#..5FC¥670201308-201506

main35779-60011iKDJ155..5FC¥670201506-201607

main35779-60011iGDJ15#,GRJ150,KDJ150..ATM¥670201506

35779BBEARING, THRUST NEEDLE ROLLER

main90374-43007iGRJ150..RHD¥960200908-201110

main90374-43007iGRJ150..LHD;KDJ15#..5FC¥960200908-201308

main90374-43007iGRJ150,KDJ15#..5FC¥960201308-201506

main90374-43007iKDJ155..5FC¥960201506-201607

main90374-43007iGDJ15#,GRJ150,KDJ150..ATM¥960201506

35785BRACE, THRUST BEARING, NO.4

main35785-60010iGRJ150..RHD¥1,300200908-201110

main35785-60010iGRJ150..LHD;KDJ15#..5FC¥1,300200908-201308

main35785-60010iGRJ150,KDJ15#..5FC¥1,300201308-201506

main35785-60010iKDJ155..5FC¥1,300201506-201607

main35785-60010iGDJ15#,GRJ150,KDJ150..ATM¥1,300201506

35785CBEARING, THRUST NEEDLE ROLLER

main90374-55004iGRJ150..RHD¥1,200200908-201110

main90374-55004iGRJ150..LHD;KDJ15#..5FC¥1,200200908-201308

main90374-55004iGRJ150,KDJ15#..5FC¥1,200201308-201506

main90374-55004iKDJ155..5FC¥1,200201506-201607

main90374-55004iGDJ15#,GRJ150,KDJ150..ATM¥1,200201506

35788DRACE, THRUST BEARING, NO.3

main35788-60010iGRJ150..RHD¥1,030200908-201110

main35788-60010iGRJ150..LHD;KDJ15#..5FC¥1,030200908-201308

main35788-60010iGRJ150,KDJ15#..5FC¥1,030201308-201506

main35788-60010iKDJ155..5FC¥1,030201506-201607

main35788-60010iKDJ150..5FC¥1,030201506

35788EBEARING, THRUST NEEDLE ROLLER

main90374-44005iGRJ150..RHD¥1,030200908-201110

main90374-44005iGRJ150..LHD;KDJ15#..5FC¥1,030200908-201308

main90374-44005iGRJ150,KDJ15#..5FC¥1,030201308-201506

main90374-44005iKDJ155..5FC¥1,030201506-201607

main90374-44005iKDJ150..5FC¥1,030201506

25 parts on this diagram · 2 diagrams in section
