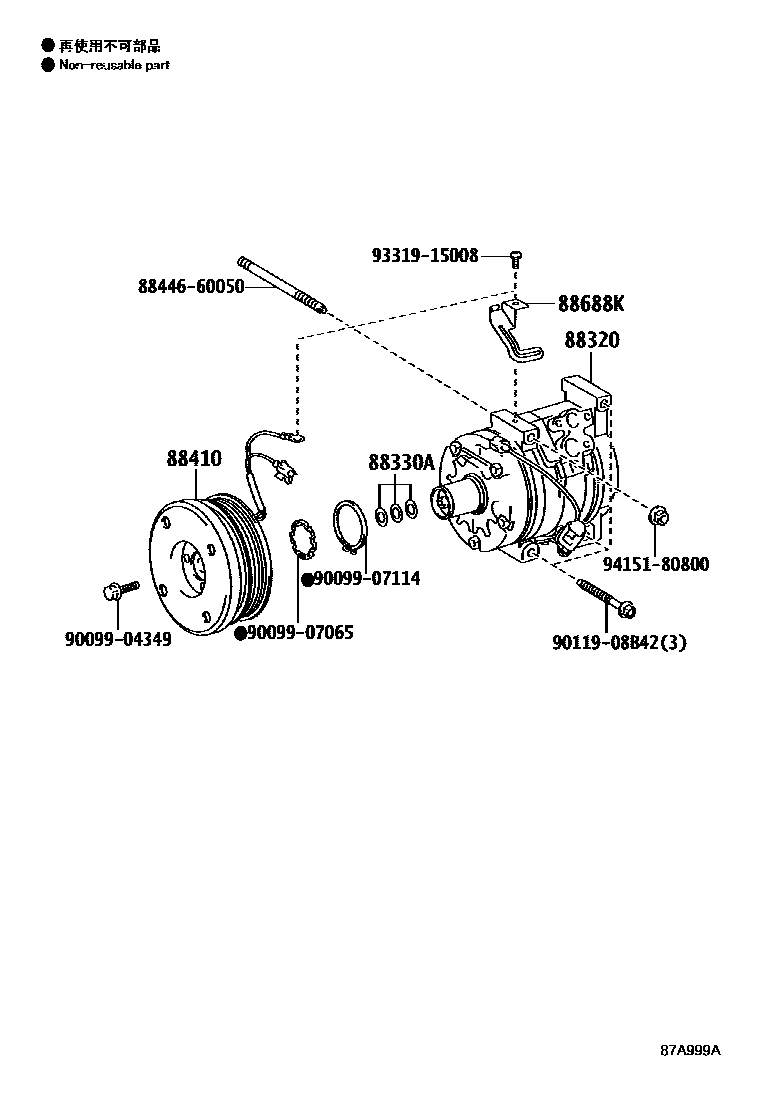

Toyota LAND CRUISER PRADO — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-60A01iGDJ15#201506

main88320-6A460iKDJ15#201506

main88320-6A540iGRJ150201506

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGDJ15#,GRJ150,KDJ15#201506

88410CLUTCH ASSY, MAGNET

main88410-2F010iGRJ150¥30,100201506

main88410-60450iGDJ15#¥27,300201609

main88410-60A01iGDJ15#¥27,300201506-201609

main88410-6A180iKDJ15#¥36,000201506

88688KBRACKET, COOLER COMPRESSOR

main88688-6B260iGRJ150201506

main88688-6B270iKDJ15#201506

8844660050BOLT, IDLE PULLEY

main88446-60050¥0

9009904349

main90099-04349

9009907065

main90099-07065¥90

9009907114

main90099-07114

9011908B42

main90119-08B42¥0

9331915008

main93319-15008¥170

9415180800

main94151-80800¥80

11 parts on this diagram · 3 diagrams in section
