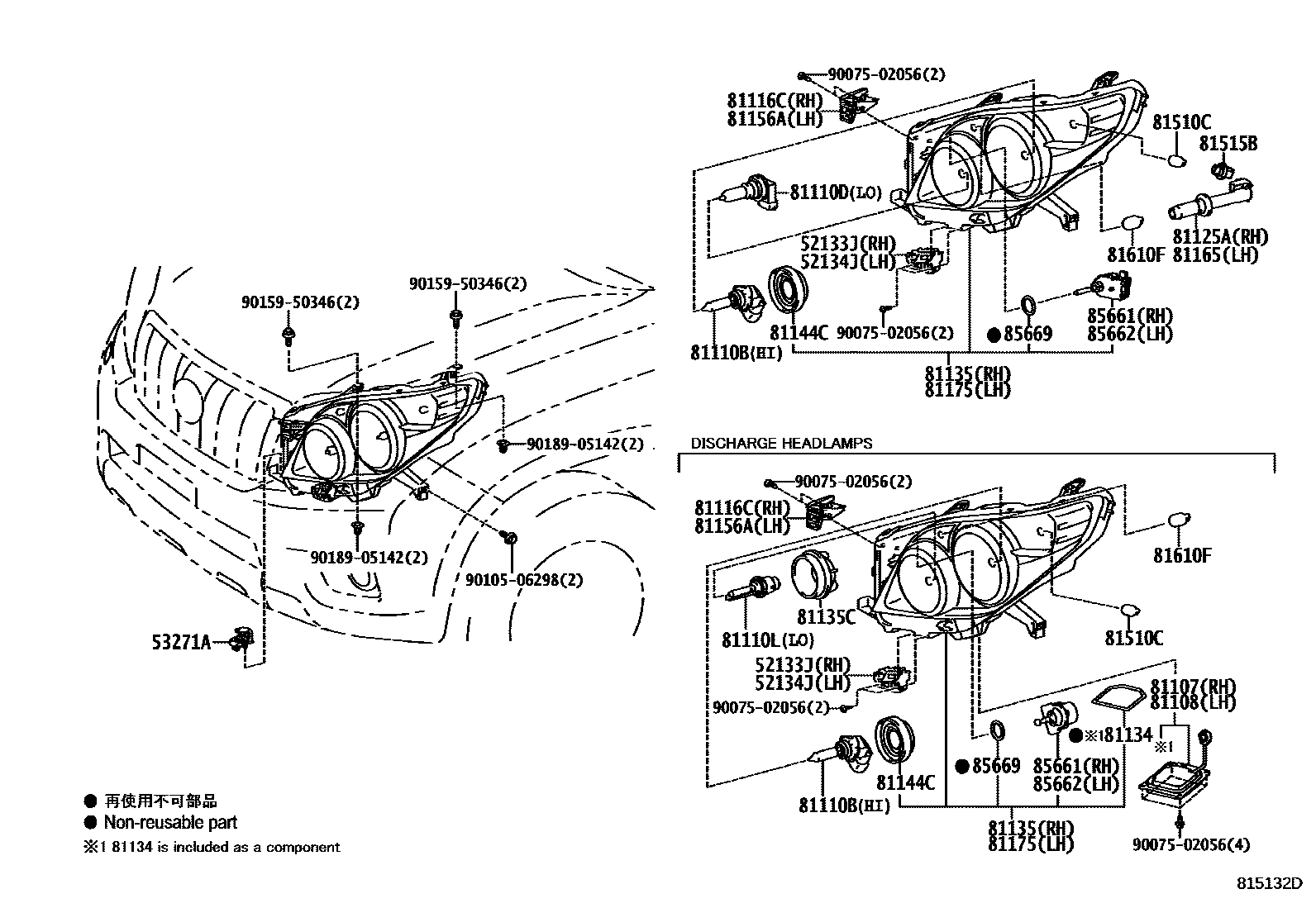

Toyota LAND CRUISER PRADO — HEADLAMP
52133JREINFORCEMENT, FRONT BUMPER BAR, RH
52134JREINFORCEMENT, FRONT BUMPER BAR, LH
53271ABRACKET, HEADLAMP MOUNTING
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
HEADLAMP-LED
UK&HEADLAMP-LED
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
HEADLAMP-LED
UK&HEADLAMP-LED
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
12V 55W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
81116CBRACKET, HEADLAMP, RH
81125CORD, HEADLAMP
81125ACORD, HEADLAMP, RH
81134GASKET, HEADLAMP
HEADLAMP-LED
UK&HEADLAMP-LED
81135UNIT ASSY, HEADLAMP, RH
UK
HEADLAMP-LED
81135CCOVER, HEADLAMP BACK, NO.1
81144COVER, HEADLAMP, NO.1
HEADLAMP-LED
UK&HEADLAMP-LED
81144CCOVER, HEADLAMP SOCKET
HEADLAMP-LED
UK&HEADLAMP-LED
VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
UK&VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
UK&VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
81156ABRACKET, HEADLAMP, LH
81165CORD, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
UK
HEADLAMP-LED
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
12V 5W
85661MOTOR, HEADLAMP LEVELING, RH
UK&HEADLAMP-LED
HEADLAMP-LED
85662MOTOR, HEADLAMP LEVELING, LH
UK&HEADLAMP-LED
HEADLAMP-LED
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
9010506298
9015950346
9018905142
29 parts on this diagram · 3 diagrams in section
