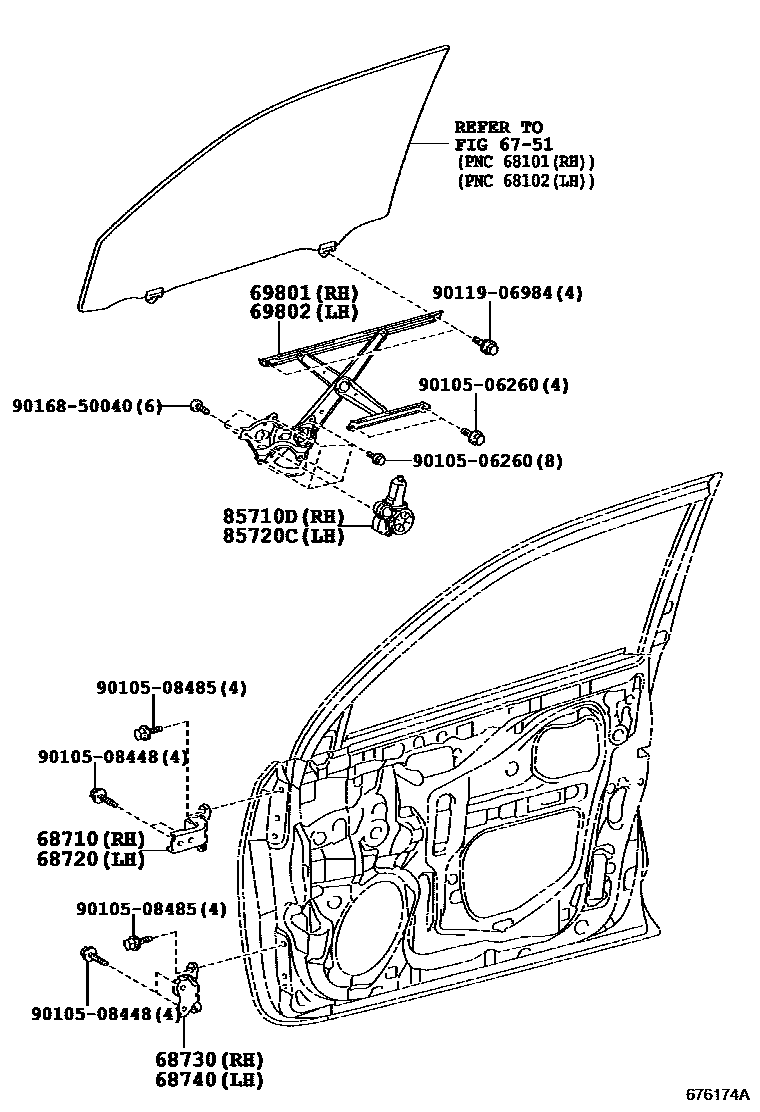

Toyota LAND CRUISER PRADO — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iGRJ150..RHD¥2,050200908-201607

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iGRJ150..RHD¥2,050200908-201607

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iGRJ150..RHD¥2,240200908-201607

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iGRJ150..RHD¥2,240200908-201607

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60090iGRJ150..RHD¥5,100200908-201607

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60090iGRJ150..RHD¥5,100200908-201607

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12490iGRJ150,KDJ15#¥27,700201301-201501

main85710-60280iGRJ150,KDJ15#201007-201008

sub85710-75010¥40,900

main85710-60300iGRJ150..RHD¥40,900201012-201212

sub85710-12490¥27,700

main85710-60310iGDJ15#,GRJ150,KDJ150¥20,900201506-201607

main85710-60370iGRJ150,KDJ15#¥33,300201502-201506

main85710-75010iGRJ150,KDJ15#¥40,900200908-201012

sub85710-12490¥27,700

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12490iGRJ150,KDJ15#¥27,700201301-201501

main85720-60260iGRJ150,KDJ15#201007-201008

sub85720-75010¥40,900

main85720-60280iKDJ15#;GRJ150..LHD¥40,900201012-201212

sub85720-12490¥27,700

main85720-60310iGDJ15#,GRJ150,KDJ150¥20,900201506-201607

main85720-60350iGRJ150,KDJ15#¥33,300201502-201506

main85720-75010iGRJ150,KDJ15#¥40,900200908-201012

sub85720-12490¥27,700

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
