Toyota LAND CRUISER PRADO — FRAME

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-60041iGRJ150,KDJ15#¥17,100200908-201607

51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

main51027-60010iGRJ150..RHD¥3,920200908-201607

main51027-60030iKDJ150..RHD¥3,780201506

STABILIZER-WITH(KDSS)

51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

main51028-60020iGRJ150..RHD¥3,920200908-201607

main51028-60040iKDJ150..LHD;GDJ150,GRJ150¥3,780201506

STABILIZER-WITH(KDSS)

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51095-60030iGRJ150..RHD¥4,570200908-201607

51100FFRAME SUB-ASSY

main51001-60A10iKDJ155200908-201607

main51001-60L60iGRJ150..LHD¥242,000200908-201506

main51001-60M00iKDJ150¥242,000200908-201506

main51001-60M21iGDJ150;KDJ150..LHD¥262,000201506

STABILIZER-WITH(KDSS)

51135PLATE, FRAME SIDE RAIL, RH

main51135-60040iKDJ15#;GRJ150..LHD¥1,150200908-201607

51136PLATE, FRAME SIDE RAIL, LH

main51136-60060iGRJ150..RHD¥1,150200908-201607

51145STIFFENER, FRAME SIDE RAIL

main510C1-60010iGRJ150..RHD¥3,580200908-201607

51145BSTIFFENER, FRAME SIDE RAIL

main51146-60140iGRJ150..RHD¥2,740200908-201607

51195PATCH, REAR FRAME RAIL, RH

main51191-60010iGRJ150..RHD¥1,260200908-201607

51196PATCH, REAR FRAME RAIL, LH

main51192-60010iGRJ150..RHD¥1,260200908-201607

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-60190iGRJ150..RHD¥28,900200908-201607

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-60300iGRJ150..RHD¥31,400200908-201607

51205ECROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-60210iGRJ150..RHD¥9,500200908-201506

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51206-60060iKDJ155¥26,800200908-201211

sub51206-60061¥18,600

main51206-60061iKDJ155¥18,600201212-201607

main51206-60070iKDJ150..LHD;GDJ150,GRJ150¥23,900200908-201506

main51206-60081iKDJ150..LHD;GDJ150,GRJ150¥27,600201506

STABILIZER-WITH(KDSS)

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-60220iGRJ150..RHD¥29,600200908-201506

main51209-60230iKDJ150200908-201506

SPARE TIRE-WITHOUT

main51209-60230iKDJ155201506-201607

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-35040iGRJ150..RHD¥4,640200908-201506

main51225-35050iKDJ155¥4,630200908-201607

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-35060iGRJ150¥4,640200908-201506

main51226-35070iGDJ150..LHD¥4,630201506

UKRAINE SPEC

main51226-35070iKDJ15#¥4,630200908-201607

main51226-35070iKDJ150¥4,630201506

RUSSIA SPEC

main51226-35070iKDJ150¥4,630201506

SERBIA,MONTENEGRO SPEC

main51226-60020iGDJ15#¥4,850201506

51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH

main51301-60050iGRJ150..RHD¥6,600200908-201607

51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH

main51302-60060iGRJ150..RHD¥5,900200908-201607

51391GUSSET, FRAME REAR CROSSMEMBER, RH

main51391-60050iGRJ150..RHD¥1,530200908-201607

51392GUSSET, FRAME REAR CROSSMEMBER, LH

main51392-60030iGRJ150..RHD¥1,530200908-201607

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-60100iGDJ15#,KDJ150¥4,150200908-201607

main51401-60110iGRJ150..RHD¥3,120200908-201506

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-60100iKDJ15#¥4,730200908-201607

main51402-60110iGRJ150¥3,660200908-201506

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-60020iKDJ150..LHD;GDJ15#,GRJ150¥4,380200908-201607

main51403-60030iKDJ150..RHD¥4,580201506

STABILIZER-WITH(KDSS)

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51403-60020iGRJ150..RHD¥4,380200908-201607

main51403-60030iKDJ150..RHD¥4,580201506

STABILIZER-WITH(KDSS)

51419BRACKET, FRAME APRON SEAL

main51419-60010iKDJ150..RHD¥420201506

STABILIZER-WITH(KDSS)

51427REINFORCEMENT, ENGINE FRONT MOUNTING, RH

main12311-31220iGRJ150¥540201510

NO.2:REFER ILLUST.

main12312-30010iKDJ15#¥530201005-201506

main12312-31010iGRJ150¥540201510

NO.1:REFER ILLUST.

main12316-30010iKDJ155¥530201506-201607

main51427-35120iGRJ150..LHD¥810200908-201509

NO.1:REFER ILLUST.

sub12312-31010¥540

main51427-35130iKDJ15#¥770200908-201004

sub12312-30010¥530

main51427-35140iGRJ150..LHD¥870200908-201509

NO.2:REFER ILLUST.

sub12311-31220¥540

51428REINFORCE, ENGINE MOUNTING, REAR

main12312-30010iGDJ15#,KDJ150¥530201506-201607

main12315-31200iGRJ150¥540201510

main12316-30010iKDJ15#¥530201005-201506

main51428-35090iGRJ150¥910200908-201509

sub12315-31200¥540

main51428-35100iKDJ15#¥770200908-201004

sub12316-30010¥530

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-60050iKDJ155¥26,200200908-201607

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-60050iGRJ150..RHD¥26,300200908-201607

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-60011iKDJ155¥1,860200908-201607

main5150C-60030iGRJ150,KDJ150¥2,680200908-201506

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-60011iGDJ155¥1,860200908-201607

main5150D-60020iGRJ150,KDJ150¥2,680200908-201506

51505HBRACKET SUB-ASSY, FRONT STABILIZER, RH

main51505-60050iKDJ150..RHD¥3,780201506

STABILIZER-WITH(KDSS)

51506HBRACKET SUB-ASSY, FRONT STABILIZER, LH

main51506-60090iKDJ150..RHD¥8,000201506

STABILIZER-WITH(KDSS)

51593ABRACKET, REAR SPRING BUMPER, RH

main51593-35030iGRJ150..RHD¥1,050200908-201607

51594BRACKET, REAR SPRING BUMPER, LH

main51594-35030iGRJ150..RHD¥1,050200908-201607

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-60130iGRJ150..RHD¥1,430200908-201607

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-60130iGRJ150..RHD¥1,430200908-201607

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-60110iGRJ150..RHD¥5,200200908-201607

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-60100iGRJ150..RHD¥5,200200908-201607

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-60110iGRJ150..RHD¥3,040200908-201607

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-60090iGRJ150..RHD¥3,040200908-201607

51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-35040iGRJ150..RHD¥4,950200908-201607

51709BBRACKET SUB-ASSY, BODY REAR END MOUNTING, LH

main51706-35060iGRJ150..RHD¥3,720200908-201607

51949BCROSSMEMBER, SPARE WHEEL CARRIER

main51099-60040iGRJ150..RHD¥10,900200908-201506

57683CBRACKET, FUEL TANK MOUNTING

main57683-35030iGRJ150..RHD¥1,300200908-201207

sub57683-35031¥900

main57683-35031iGRJ150,KDJ150¥900201208-201506

77512ABRACKET, FUEL TANK, REAR

main77512-35120iGRJ150..RHD¥2,650200908-201207

sub77512-35121¥1,840

main77512-35121iGRJ150,KDJ150¥1,840201208-201506

1757667050BRACKET, MUFFLER CLAMP

main17576-67050¥730

9010510114

main90105-10114¥210

91641H0820

main91641-H0820¥90

9167480822

main91674-80822¥90

9167480828

main91674-80828¥110

9167481235

main91674-81235¥210

91674J1020

main91674-J1020¥110

9415011001

main94150-11001¥80

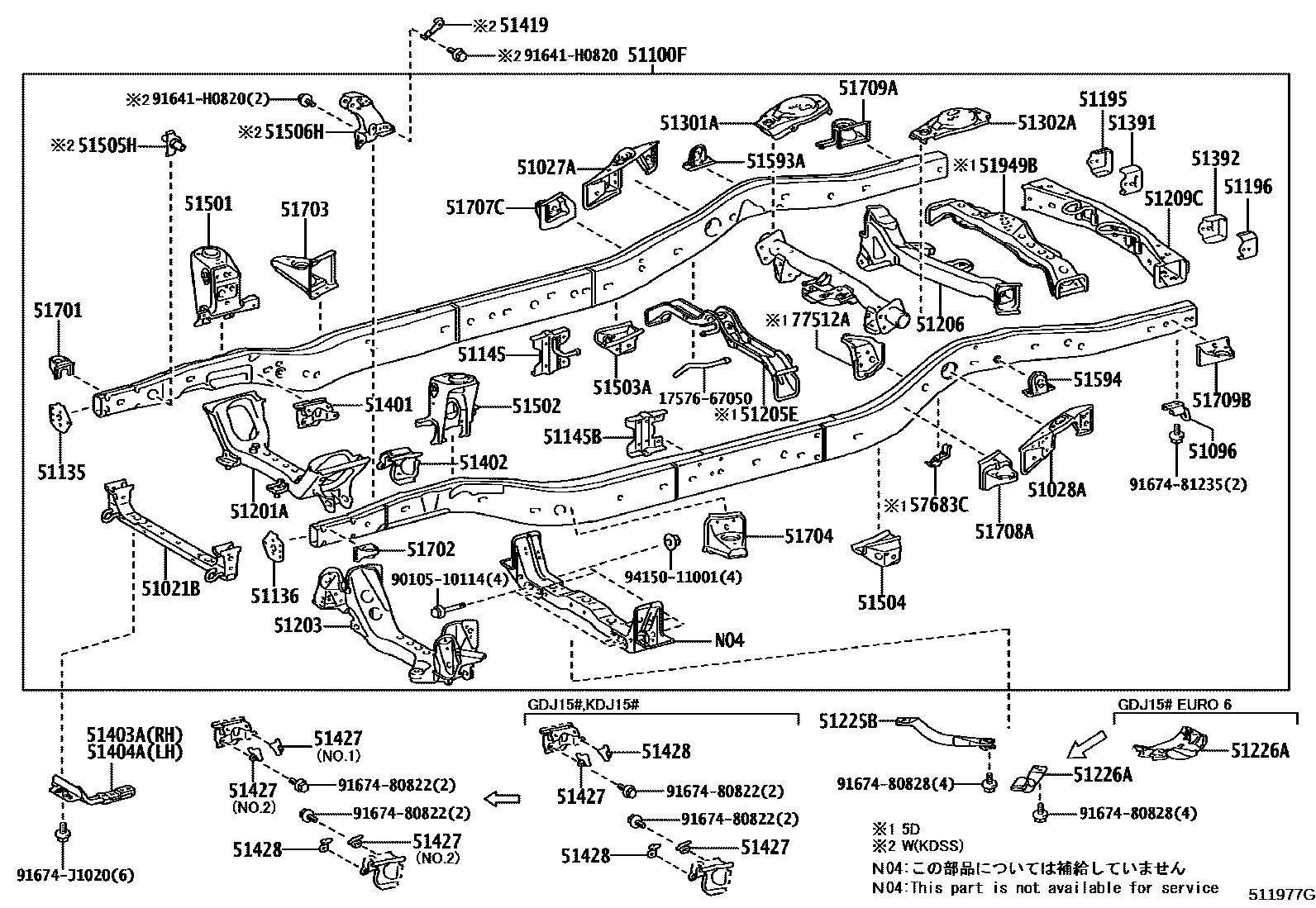

56 parts on this diagram · 1 diagram in section
