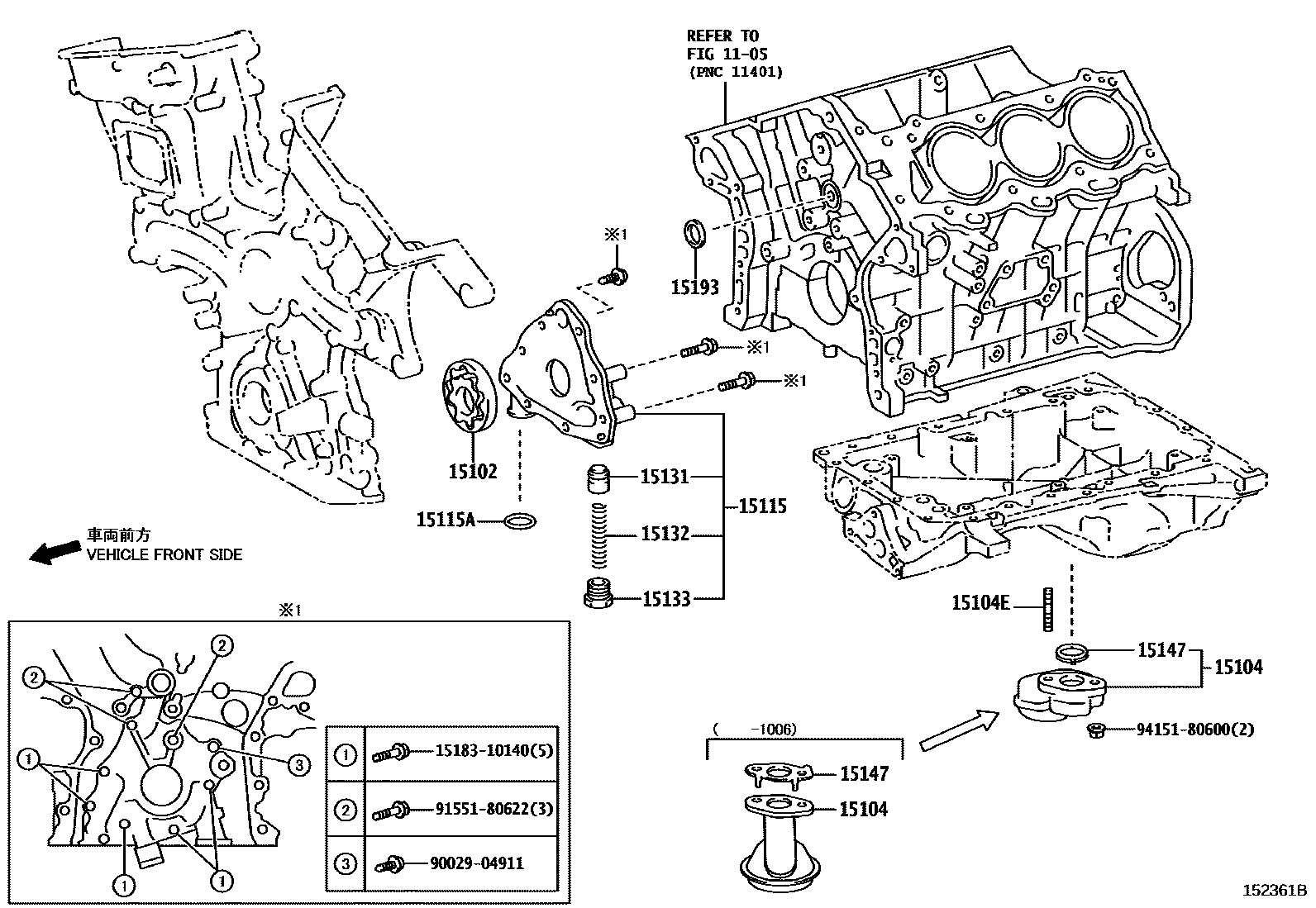

Toyota LAND CRUISER PRADO — ENGINE OIL PUMP

0001 1 0002 1 0003 1

1105

15102ROTOR SET, OIL PUMP

main15103-31080i1GRFE..GRJ150..LHD¥3,740200908-201506

15104STRAINER SUB-ASSY, OIL

main15104-11210i1GDFTV..GDJ15#¥6,600201506

main15104-30040i1KDFTV..KDJ15#¥3,510200908-201607

main15104-31130i1GRFE..GRJ150¥4,270200908-201006

sub15104-31140¥2,270

main15104-31140i1GRFE..GRJ150..RHD¥2,270201006-201506

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KDFTV..KDJ150¥100200908-201607

main90126-06029i1GRFE..GRJ150¥60200908-201506

15115COVER, OIL PUMP

main15115-31080i1GRFE..GRJ150..LHD¥2,030200908-201506

15115ARING, O(FOR OIL PUMP COVER)

main96722-24030i1GRFE..GRJ150¥140200908-201308

15131VALVE, OIL PUMP RELIEF

main15131-17010i1GRFE..GRJ150..LHD¥360200908-201506

main15131-46040i1KDFTV..KDJ15#..LHD¥310201308-201506

ENGINE-FOR EURO 4 CONFORMITY

main15131-46040i1KDFTV..KDJ155¥310200908-201607

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KDFTV..KDJ15#¥200200908-201607

main15132-17010i1KDFTV..KDJ15#..LHD¥200201308-201506

ENGINE-FOR EURO 4 CONFORMITY

main15132-46020i1GRFE..GRJ150¥210200908-201506

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KDFTV..KDJ15#..LHD¥280201308-201506

ENGINE-FOR EURO 4 CONFORMITY

main15133-17010i1KDFTV..KDJ15#¥280200908-201607

main15133-28020i1GRFE..GRJ150¥260200908-201506

15147GASKET, OIL STRAINER

main15147-31070i1GRFE..GRJ150¥300201006-201506

main15147-46010i1GRFE..GRJ150¥300200908-201006

15193GASKET, OIL PUMP

main15193-38010i1GRFE..GRJ150..LHD¥340200908-201506

main15193-67011i1KDFTV..KDJ150¥330200908-201607

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140¥210

9002904911

main90029-04911¥90

9155180622

main91551-80622¥60

9415180600

main94151-80600¥60

15 parts on this diagram · 3 diagrams in section
