Toyota LAND CRUISER PRADO — BACK DOOR LOCK & HINGE

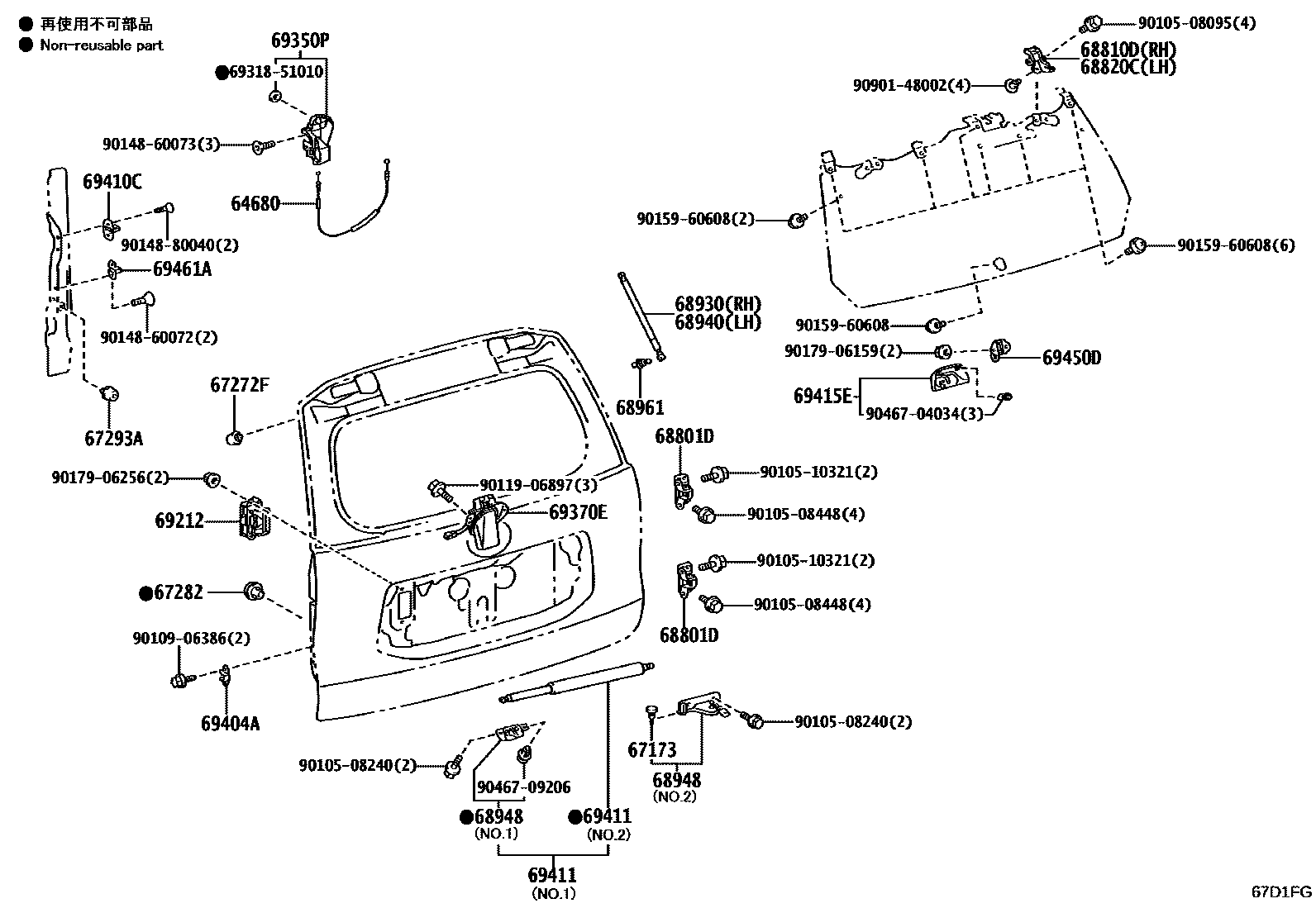

Parts diagram
64680CABLE ASSY, BACK DOOR LOCK CONTROL
main64680-60010i¥1,420200908-201607
67173CUSHION, BACK DOOR
main90541-03005i¥200200908-201607
67272FCUSHION, BACK DOOR STOPPER, NO.2
main67272-60050i¥140200908-201607
67282STOPPER, BACK DOOR, NO.1
main67282-46010i¥240200908-201607
67293ACUSHION, BACK DOOR STOPPER
main67293-60040i¥160200908-201607
68801DHINGE SUB-ASSY, BACK DOOR, RH
main68801-60050i¥4,070200908-201403
sub68801-60051¥4,070
main68801-60051i¥4,070201404-201511
sub68801-60052¥2,820
main68801-60052i¥2,820201512-201607
68810DHINGE ASSY, BACK DOOR, RH
main68810-60050i¥3,310200908-201110
sub68810-60051¥2,290
main68810-60050i¥3,310200908-201203
SPARE TIRE-WITHOUT
sub68810-60051¥2,290
main68810-60051i¥2,290201204-201708
SPARE TIRE-WITHOUT
68820CHINGE ASSY, BACK DOOR, LH
main68820-60010i¥3,310200908-201110
sub68820-60011¥2,290
main68820-60010i¥3,310200908-201203
SPARE TIRE-WITHOUT
sub68820-60011¥2,290
main68820-60011i¥2,290201204-201708
SPARE TIRE-WITHOUT
68930STAY ASSY, BACK WINDOW, RH
main68930-0W020i¥6,400200908-201506
SPARE TIRE-WITHOUT
main68930-0W020i¥6,400200908-201110
68940STAY ASSY, BACK WINDOW, LH
main68940-0W020i¥6,400200908-201506
SPARE TIRE-WITHOUT
main68940-0W020i¥6,400200908-201110
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
main68948-60010i¥670200908-201607
NO.1:REFER ILLUST.
main68948-60020i¥1,130200908-201607
NO.2:REFER ILLUST.
68961BOLT, BACK DOOR STAY
main68961-20140i¥280200908-201506
SPARE TIRE-WITHOUT
main68961-20140i¥280200908-201110
69212HANDLE, BACK DOOR OUTSIDE, LH
main69190-60010i¥5,600200908-201210
sub69190-60011¥5,600
main69190-60011i¥5,600201211-201502
sub69190-60012¥3,790
main69190-60012i¥3,790201503-201607
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69110-60230i¥14,100200908-201204
sub69110-60231¥14,100
main69110-60231i¥14,100201205-201302
sub69110-60232¥14,100
main69110-60232i¥14,100201303-201511
sub69110-60233¥9,800
main69110-60233i¥9,800201512-201708
69370ELOCK ASSY, BACK WINDOW
main69370-60020i¥9,200200908-201506
SPARE TIRE-WITHOUT
main69370-60020i¥9,200200908-201110
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
main69403-60011i¥1,080200908-201506
main69403-60020i¥900201506-201607
sub69403-60021¥750
sub90119-06911¥80
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
main69410-60020i¥1,260200908-201607
69411CHECK, BACK DOOR
main68650-09010i¥11,400200908-201506
ENGLAND SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09010i¥11,400200908-201506
SLOVENIA SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09010i¥11,400200908-201506
RUMANIA SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09010i¥11,400200908-201506
GERMANY SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09010i¥11,400200908-201506
PORTUGAL SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09010i¥11,400200908-201506
HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09010i¥11,400200908-201506
*242&SPARE TIRE-WITHOUT,NO.1
main68650-09010i¥11,400200908-201506
IRELAND SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09010i¥11,400200908-201506
NO.1
main68650-09010i¥11,400200908-201308
ICELAND SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09020i¥11,400201506-201708
*242&SPARE TIRE-WITHOUT,NO.1
main68650-09020i¥11,400201506-201708
ENGLAND SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09020i¥11,400201506-201708
NO.1
main68650-09020i¥11,400201506-201708
SLOVENIA SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09020i¥11,400201506-201708
GERMANY SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09020i¥11,400201506-201708
PORTUGAL SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09020i¥11,400201506-201708
HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09020i¥11,400201506-201708
IRELAND SPEC&SPARE TIRE-WITHOUT,NO.1
main68650-09030i201506-201708
NO.1
main68650-09040i200908-201506
NO.1
main68650-0W010i¥15,900200908-200911
HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
*242&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
IRELAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
ENGLAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
SLOVENIA SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
RUMANIA SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
GERMANY SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
ICELAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W010i¥15,900200908-200911
PORTUGAL SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W011¥15,900
main68650-0W011i¥15,900200912-201205
HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
ENGLAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
IRELAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
*242&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
PORTUGAL SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
ICELAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
GERMANY SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
RUMANIA SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W011i¥15,900200912-201205
SLOVENIA SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-0W012¥15,900
main68650-0W012i¥15,900201206-201505
SLOVENIA SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201505
NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201505
ENGLAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201505
IRELAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201505
*242&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201505
HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201505
PORTUGAL SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201505
GERMANY SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201505
RUMANIA SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W012i¥15,900201206-201308
ICELAND SPEC&SPARE TIRE-WITHOUT,NO.2
sub68650-09010¥11,400
main68650-0W020i200908-201002
NO.2
sub68650-0W021
main68650-0W021i201003-201205
NO.2
sub68650-0W022
main68650-0W022i201206-201505
NO.2
sub68650-09040
69415ECOVER, BACK DOOR LOCK STRIKER
main69415-60010i¥920200908-201506
SPARE TIRE-WITHOUT
main69415-60010i¥920200908-201110
69450DSTRIKER ASSY, BACK WINDOW LOCK
main69450-60050i¥670200908-201708
SPARE TIRE-WITHOUT
main69450-60050i¥670200908-201110
69461ASTOPPER, BACK DOOR SIDE MALE
main69461-60010i¥430200908-201607
6931851010SEAL, FRONT DOOR LOCK HOLE, LH
main69318-51010¥120
9010508095
main90105-08095¥90
9010508240
main90105-08240¥160
9010508448
main90105-08448¥80
9010510321
main90105-10321¥100
9010906386
main90109-06386¥90
9011906897
main90119-06897¥60
9014860072
main90148-60072¥70
9014860073
main90148-60073¥60
9014880040
main90148-80040¥70
9015960608
main90159-60608¥70
9017906159
main90179-06159¥70
9017906256
main90179-06256¥90
9046704034
main90467-04034¥60
9046709206
main90467-09206¥80
9090148002
main90901-48002¥120

37 parts on this diagram · 2 diagrams in section
