Toyota LAND CRUISER PRADO — ALTERNATOR

0001 112V 100A,130A,150A 0002 112V 100A,130A 0003 112V 100A,130A

27020ALTERNATOR ASSY

main27060-11180i1GDFTV..GDJ15#¥84,500201506

12V 100A

main27060-30130i1KDFTV..KDJ15#¥135,000200908-201303

12V 100A

sub27060-30131¥93,100

main27060-30131i1KDFTV..KDJ15#¥93,100201304-201308

12V 100A

main27060-30210i1KDFTV..KDJ155¥84,500201308-201607

12V 100A

main27060-31180i1GRFE..GRJ150..LHD¥135,000200908-201308

12V 100A

sub27060-31260¥93,000

main27060-31260i1GRFE..GRJ150¥93,000201308-201506

12V 100A

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i1GRFE..GRJ150..RHD¥120200908-201506

main91552-81090i1GDFTV..GDJ15#¥190201506

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i1GRFE..GRJ150¥160200908-201506

27039COVER, ALTERNATOR REAR END

main27039-11290i1GDFTV..GDJ15#201506

main27039-31390i1GRFE..GRJ150200908-201506

main27039-50430i1KDFTV..KDJ150200908-201607

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-11280i1GDFTV..GDJ15#201506

main27310-30080i1KDFTV..KDJ155200908-201607

main27310-31430i1GRFE..GRJ150200908-201506

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i1GRFE..GRJ150..RHD¥0200908-201607

27312PLATE, RETAINER

main27312-72100i1GRFE..GRJ150..RHD¥0200908-201607

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1KDFTV..KDJ15#;1GRFE..GRJ150..LHD¥0200908-201607

main27330-47330i1GDFTV..GDJ15#¥0201506

27360COIL ASSY, ALTERNATOR

main27360-11280i1GDFTV..GDJ15#201506

main27360-30140i1KDFTV..KDJ15#200908-201308

main27360-30220i1KDFTV..KDJ15#201308-201607

main27360-31390i1GRFE..GRJ150..LHD200908-201308

main27360-31520i1GRFE..GRJ150201308-201506

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GRFE..GRJ150..LHD¥0200908-201506

main27370-58460i1KDFTV..KDJ150¥0200908-201607

27384WASHER

main27384-50030i1GRFE,1KDFTV..GRJ150,KDJ15#200908-201607

27387INSULATOR, TERMINAL

main27387-20130i1KDFTV..KDJ15#;1GRFE..GRJ150..LHD¥0200908-201607

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W130i1GRFE..GRJ150..RHD¥9,000200908-201306

sub27415-0W131¥5,500

main27415-0W131i1GRFE..GRJ150¥5,500201307-201708

main27415-30010i1KDFTV..KDJ15#¥5,500200908-201708

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1GRFE..GRJ150..RHD¥340200908-201708

main27416-30010i1KDFTV..KDJ15#¥460200908-201708

sub27416-30020¥340

27446CLIP, ALTERNATOR CORD

main27446-31390i1GRFE..GRJ150..RHD200908-201506

1251131040BRACKET, ALTERNATOR, NO.1

main12511-31040¥920

9009900197

main90099-00197

9009900268

main90099-00268¥0

9009904539

main90099-04539¥0

9009905284

main90099-05284¥0

9151180820

main91511-80820¥80

9415080600

main94150-80600¥60

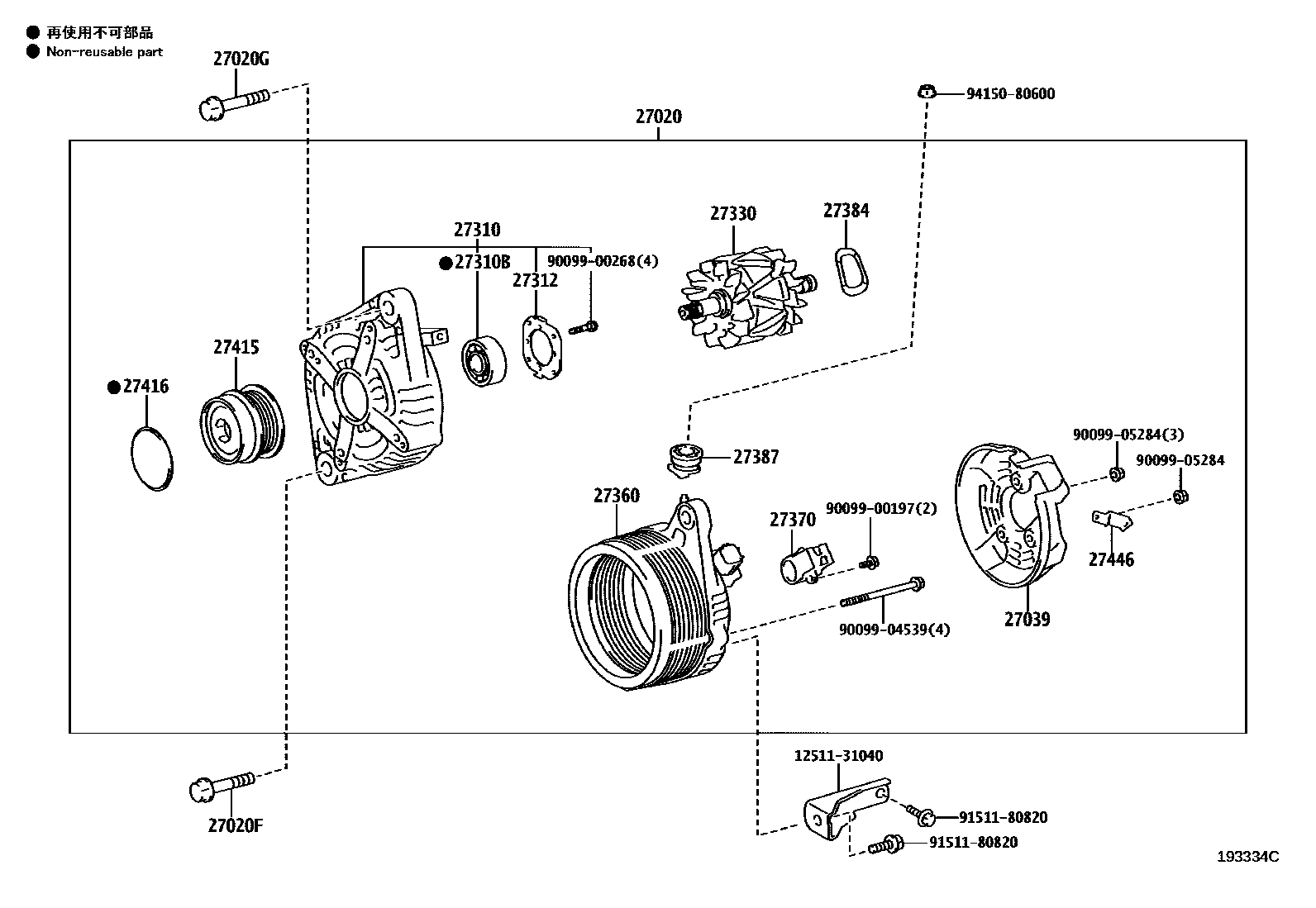

22 parts on this diagram · 3 diagrams in section
