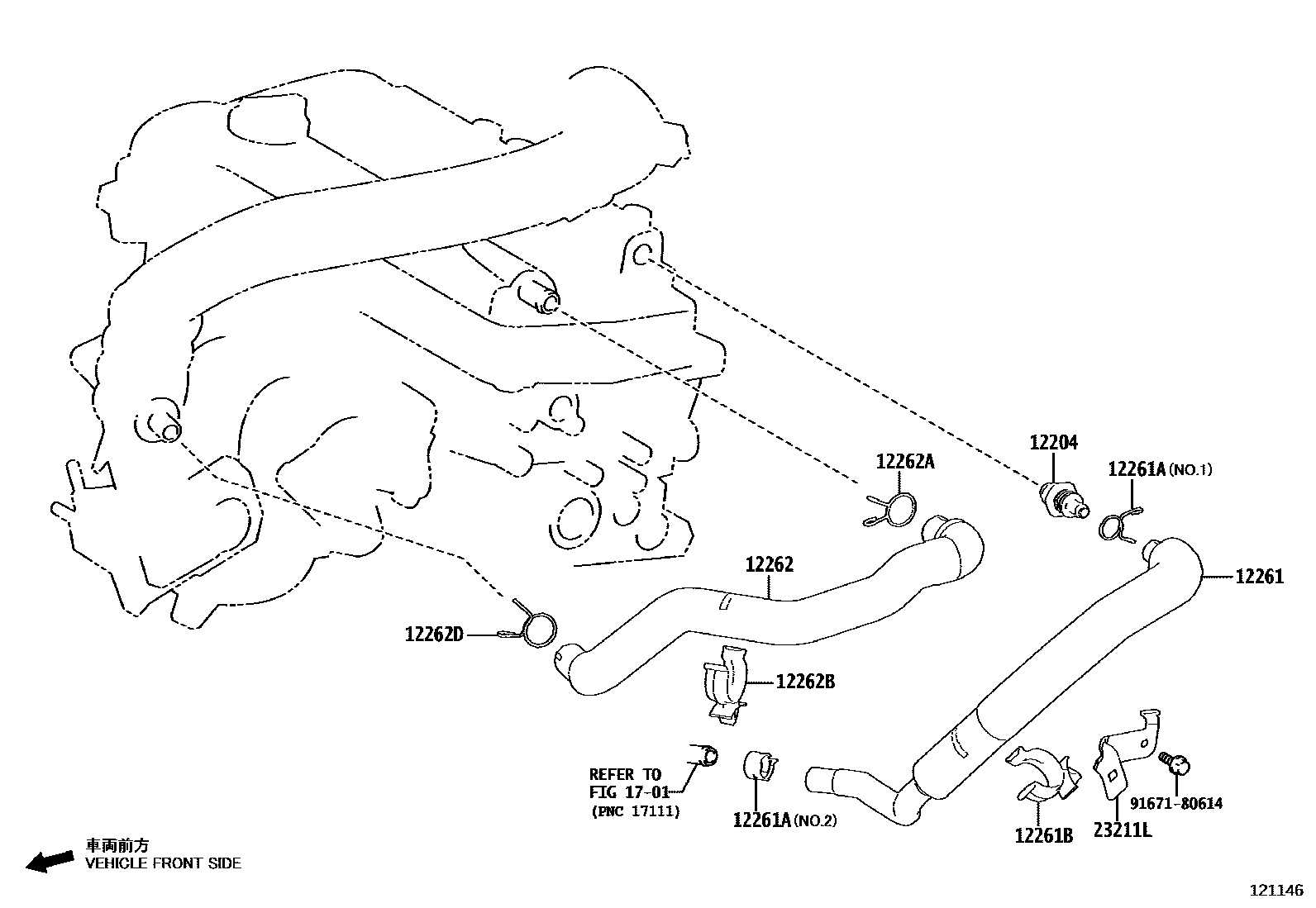

Toyota JPNTAXI — VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-21040i1NZFXP..NTP10¥800201710

12261HOSE, VENTILATION

main12261-21090i1NZFXP..NTP10¥2,710201710

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i1NZFXP..NTP10¥100201710

�m�n�D�P�F�C���X�g�Q��

main96136-41801i1NZFXP..NTP10¥160201710

�m�n�D�Q�F�C���X�g�Q��

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main12251-21020i1NZFXP..NTP10¥380201710

12262HOSE, VENTILATION, NO.2

main12262-21120i1NZFXP..NTP10¥2,330201710

12262ACLIP(FOR VENTILATION HOSE NO.2)

main16581-21050i1NZFXP..NTP10¥100201710

12262BCLAMP(FOR VENTILATION HOSE)

main12251-21020i1NZFXP..NTP10¥380201710

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i1NZFXP..NTP10¥130201710

1701

23211LBRACKET(FOR VENTILATION HOSE CLAMP)

main23211-21040i1NZFXP..NTP10¥200201710

9167180614

main91671-80614¥60

11 parts on this diagram · 1 diagram in section
