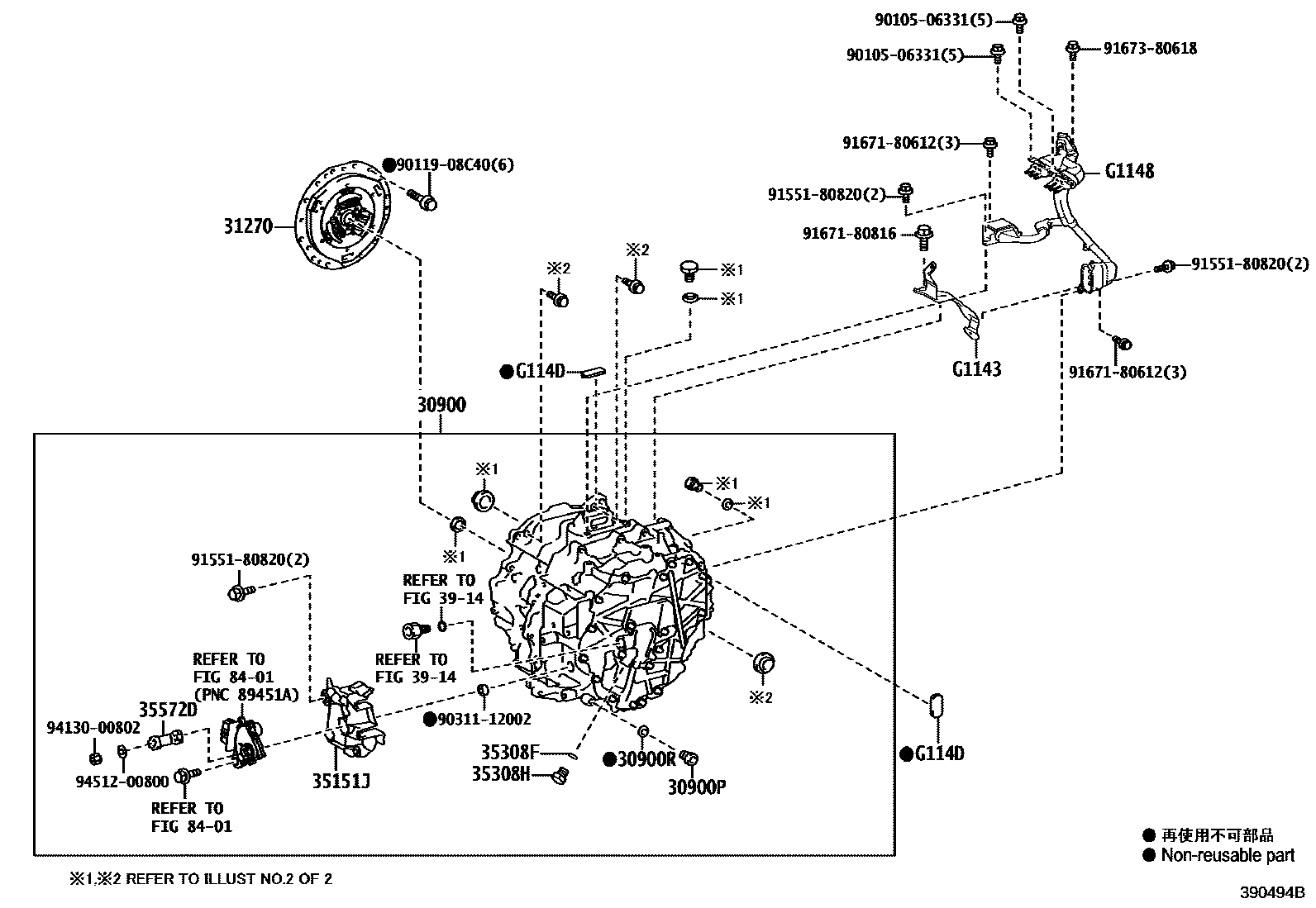

Toyota JPNTAXI — TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-15010iNTP10¥232,000201710

30900PPLUG, DRAIN(HEV)

main90341-18016iNTP10¥190201710

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iNTP10¥110201710

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-52010iNTP10¥22,100201710

35151JCOVER, AUTOMATIC TRANSMISSION CASE

main35151-52010iNTP10¥2,890201710

35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iNTP10¥170201710

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iNTP10¥120201710

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-52090iNTP10¥530201710

3914

8401

G1143BRACKET, MOTOR CABLE

mainG114315010iNTP10201710

G1148CABLE, MOTOR

mainG114815010iNTP10201710

G114DCAP, MOTOR CABLE TERMINAL

mainG114D47021iNTP10201710

9010506331

main90105-06331¥70

9011908C40

main90119-08C40¥80

9031112002

main90311-12002¥270

9155180820

main91551-80820¥80

9167180612

main91671-80612¥60

9167180816

main91671-80816¥80

9167380618

main91673-80618¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

22 parts on this diagram · 2 diagrams in section
