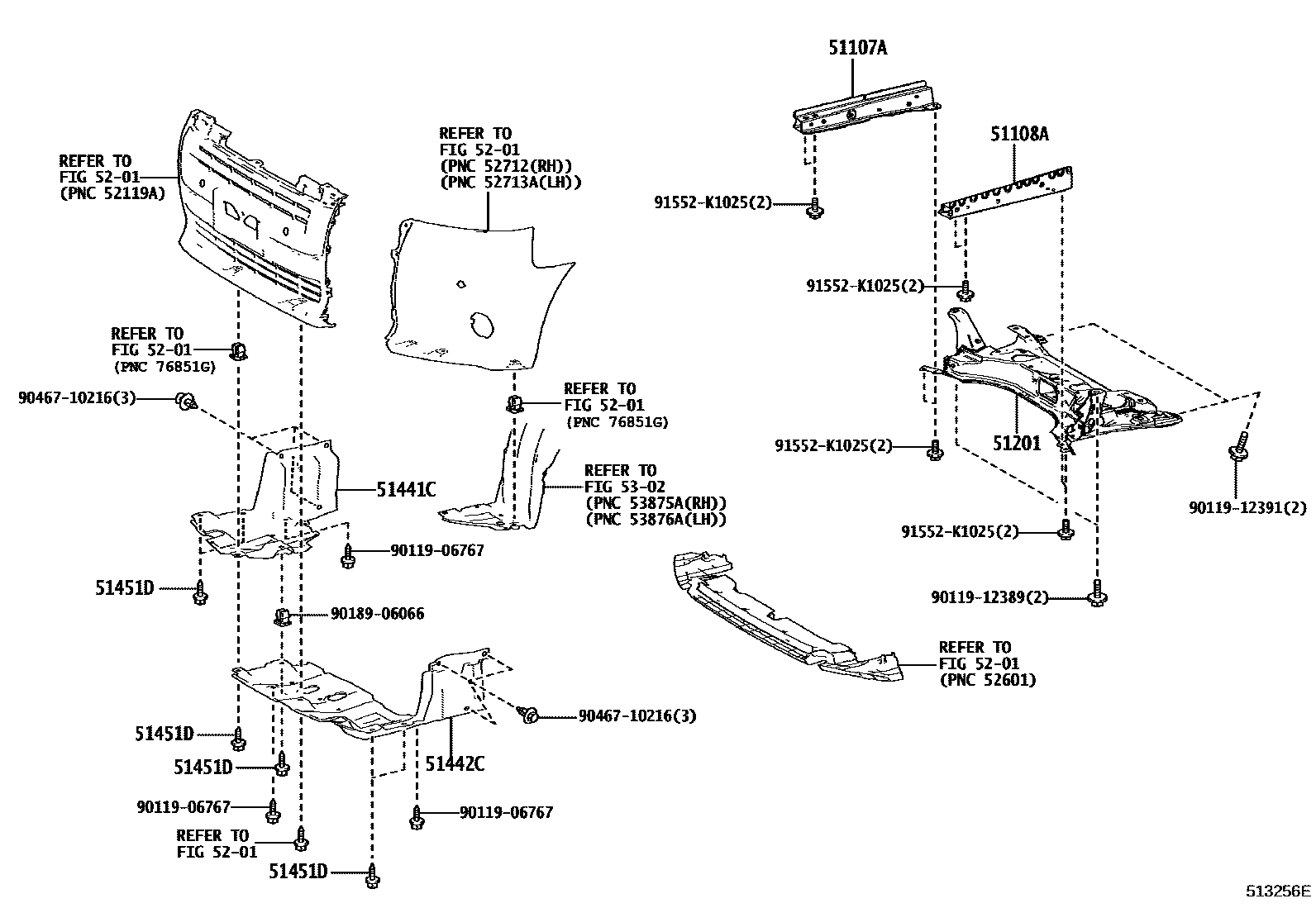

Toyota JPNTAXI — SUSPENSION CROSSMEMBER & UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-15010iNTP10¥6,600201710-202012

sub51107-15011¥5,100

main51107-15011iNTP10¥5,100202101

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-15010iNTP10¥6,600201710-202012

sub51108-15011¥5,100

main51108-15011iNTP10¥5,100202101

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-15010iNTP10¥43,600201710

51441CCOVER, ENGINE UNDER, RH

main51441-15010iNTP10¥3,160201710

51442CCOVER, ENGINE UNDER, LH

main51442-15010iNTP10¥5,300201710

51451DSCREW, NO.1

main90159-60431iNTP10¥70201710

5201

5302

9011906767

main90119-06767¥60

9011912389

main90119-12389¥190

9011912391

main90119-12391¥190

9018906066

main90189-06066¥80

9046710216

main90467-10216¥100

91552K1025

main91552-K1025¥100

14 parts on this diagram · 1 diagram in section
