Toyota JPNTAXI — STANDARD TOOL

0001 1 0002 1 0003 1

09110JACK ASSY

main09111-33050iNTP10¥5,900201710-202110

sub09111-33051¥5,900

main09111-33051iNTP10¥5,900202111

09113HANDLE, JACK

main09113-13040iNTP10¥540201710

09120BAG, TOOL

main09120-15010¥5,800

main09120-16030¥450

main09120-15040¥2,940

main09120-15050¥3,920

main09120-15070¥3,920

09120CBAG,TOOL, NO.2

main09120-15070iNTP10¥3,920202105

09130PLIERS

main99913-11500¥400

09135DRIVER, SCREW

main99915-10700¥460

09141SPANNER

main99914-11214¥400

main99914-10810¥240

09150WRENCH, HUB NUT BOX

main09150-40010iNTP10¥1,150201710

09184STOPPER, WHEEL

main09184-00010¥770

44890DCOMPRESSOR ASSY, AIR

main44890-52021iNTP10¥7,500201710-201903

sub44890-52022¥7,500

main44890-K0010iNTP10¥7,500201903-202108

sub44890-K0011¥7,500

main44890-K0011iNTP10¥7,500202109

51960HOOK ASSY, FRONT

main51961-12020iNTP10¥1,720201710

51960AHOOK ASSY, REAR

main51961-12020iNTP10¥1,720201710

C3350STEP ASSY, SIDE

mainC3350-15010¥7,000

C6048REPAIR SET, TIRE

main42683-52021iNTP10¥3,000201710-201903

�X�y�A�^�C���|���}�p�i�s�P�Q�T�^�V�O�c�P�U�j

main42683-K0010iNTP10¥3,000201903

�X�y�A�^�C���|���}�p�i�s�P�Q�T�^�V�O�c�P�U�j

C6048ASEALANT, REPAIR TIRE

mainC604852021iNTP10201710-201903

mainC6048K0010iNTP10201903

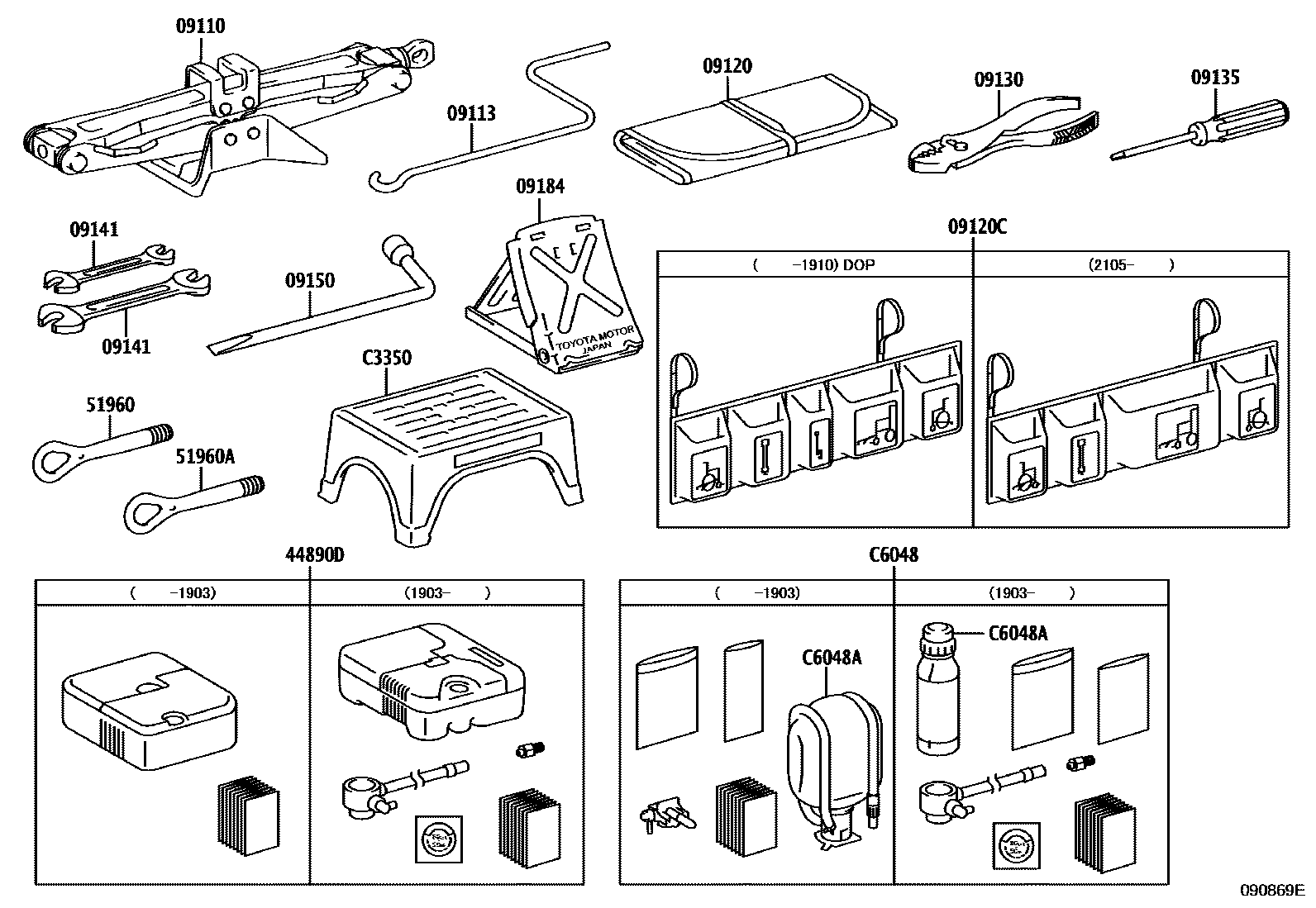

15 parts on this diagram · 3 diagrams in section
