Toyota JPNTAXI — SPEAKER

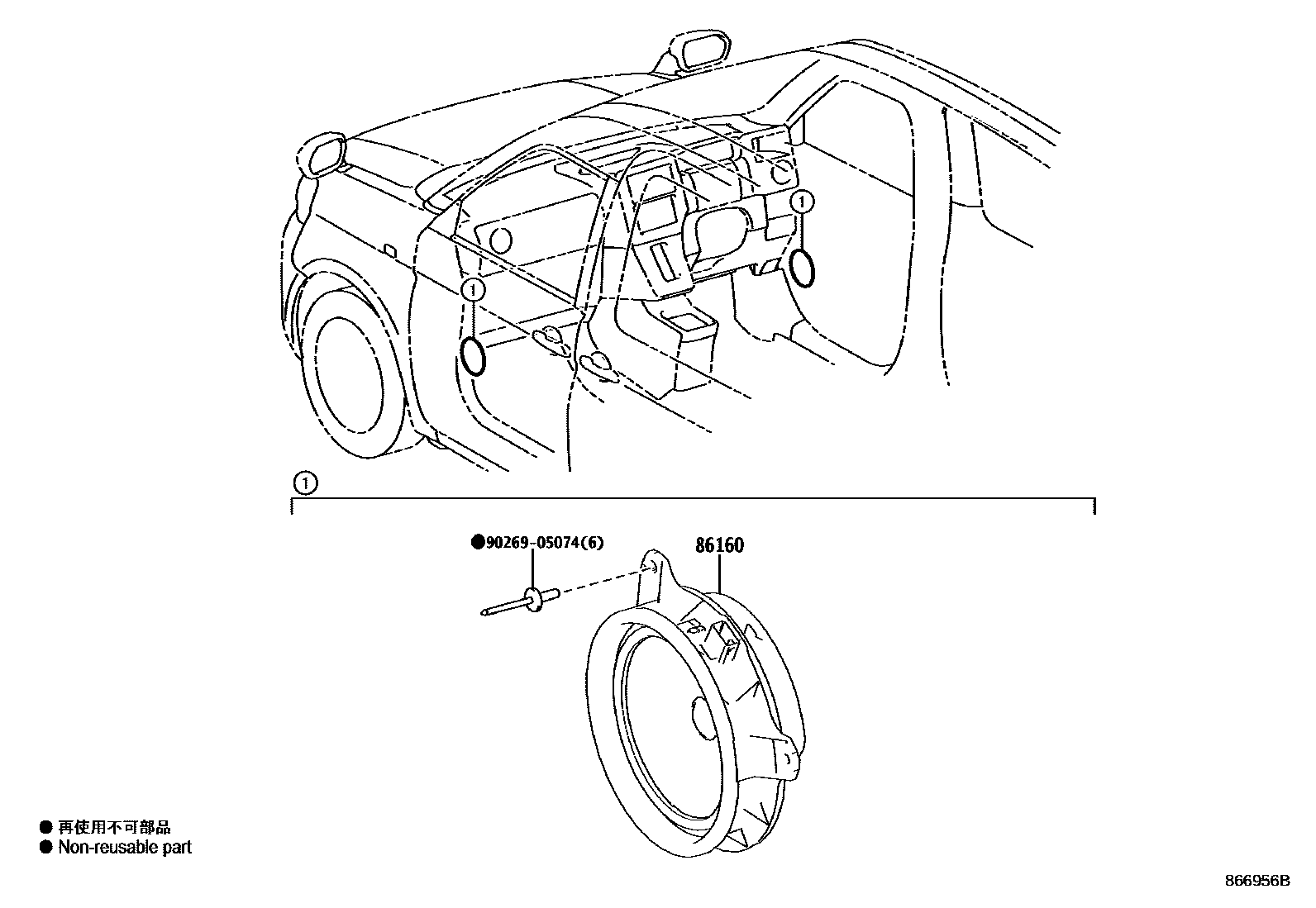

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-28820i¥7,000201710-202001

main86160-30E00i¥6,300202001

9026905074

main90269-05074¥70

2 parts on this diagram · 1 diagram in section
