Toyota JPNTAXI — REAR SEAT & SEAT TRACK

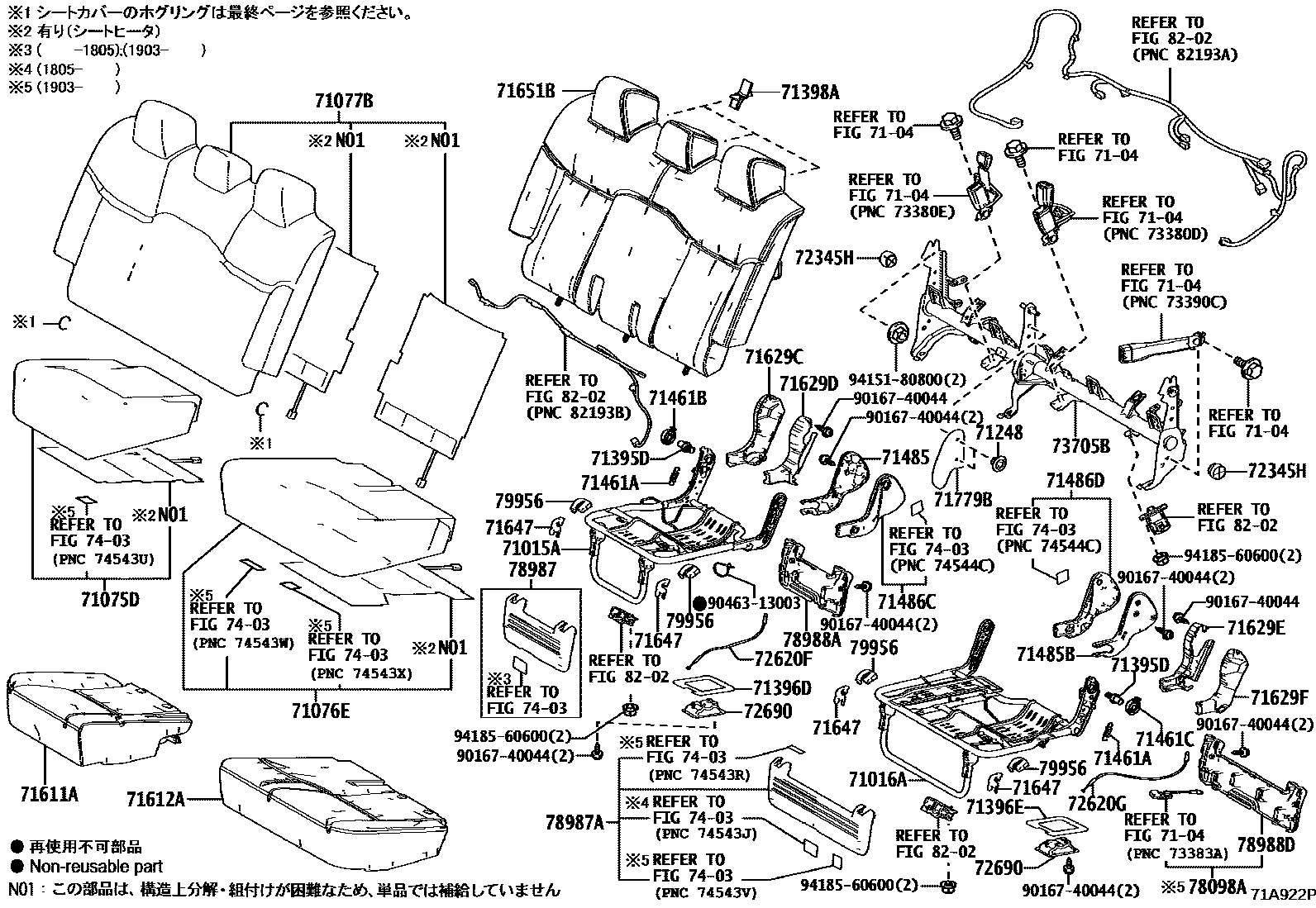

Parts diagram
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-15010i¥15,700201710-202407
sub71015-15011¥14,200
main71015-15011i¥14,200202408
main71015-15020i¥14,900201710-202407
sub71015-15021¥13,500
main71015-15021i¥13,500202408
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-15010i¥18,500201710-202407
sub71016-15011¥16,800
main71016-15011i¥16,800202408
main71016-15020i¥18,500201710-202407
sub71016-15021¥16,800
main71016-15021i¥16,800202408
7104
71075DCOVER SUB-ASSY, REAR SEAT CUSHION, RH
main71075-15110-E3i201710-201903
KURO KOHAKU,TRIM4#
main71075-15111-E3i201903-202105
KURO KOHAKU,TRIM4#
main71075-15120-E2i201710-201903
KOHAKU,TRIM4#
main71075-15121-E2i201903-202105
KOHAKU,TRIM4#
main71075-15140-E0i202105-202205
KOHAKU,TRIM4#
sub71075-15141¥16,000
main71075-15141-E0i202205
KOHAKU,TRIM4#
main71075-15150-E0i202105-202205
KURO KOHAKU,TRIM4#
sub71075-15151¥30,200
main71075-15151-E0i202205-202502
KUROKOHAKU,TRIM4#
71076ECOVER SUB-ASSY, REAR SEAT CUSHION, LH
main71076-15010-E3i201710-201903
KURO HOKAKU,TRIM4#
main71076-15011-E3i201903-202105
KURO KOHAKU,TRIM4#
main71076-15020-E2i201710-201902
KOHAKU,TRIM4#
main71076-15021-E2i201903-202105
KOHAKU,TRIM4#
main71076-15040-E0i202105-202205
KOHAKU,TRIM4#
sub71076-15041¥21,300
main71076-15041-E0i202205
KOHAKU,TRIM4#
main71076-15050-E0i202105-202205
KURO KOHAKU,TRIM4#
sub71076-15051¥36,700
main71076-15051-E0i202205-202502
KUROKOHAKU,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-15110-E4i201710-201903
KURO KOHAKU,TRIM4#
main71077-15111-E4i201903-202105
KURO KOHAKU,TRIM4#
sub71077-15112¥62,500
main71077-15111-E5i202105-202205
KURO KOHAKU,TRIM4#
sub71077-15112¥62,500
main71077-15112-E5i202205-202502
KURO KOHAKU,TRIM4#
main71077-15120-E2i201710-201903
KOHAKU,TRIM4#
main71077-15121-E2i201903-202105
KOHAKU,TRIM4#
main71077-15140-E0i202105-202205
KOHAKU,TRIM4#
main71077-15141-E1i202205
KOHAKU,TRIM4#
71248RETAINER, REAR SEAT CUSHION HINGE, NO.1
main71248-15010-C0i201710
BLACK,TRIM4#
71395DPLATE, RR SEAT CUSHION SUPPORT
main71395-15010i¥1,190201710-201909
71396DPLATE, REAR SEAT CUSHION COVER FINISH, RH
main71396-15010i¥540201710
71396EPLATE, REAR SEAT CUSHION COVER FINISH, LH
main71396-15010i¥540201710
71398AHOLDER, REAR SEATBACK
main71398-62010i¥220201710
71461ASPRING, REAR SEAT CUSHION, NO.1
main71461-15010i¥90201710-201909
71461BSPRING, REAR SEAT CUSHION, RH
main71462-15020i¥630201710-201909
71461CSPRING, REAR SEAT CUSHION, LH
main71462-15010i¥700201710-201909
71485COVER, REAR SEAT HINGE
main71485-15010-C1i201710-201909
BLACK,TRIM4#
71485BCOVER, REAR SEAT HINGE
main71485-15020-C1i201710-201909
BLACK,TRIM4#
71486CCOVER, REAR SEAT HINGE, LH
main71486-15010-C1i201710-201909
BLACK,TRIM4#
71486DCOVER, REAR SEAT HINGE, RH
main71486-15020-C1i201710-201909
BLACK,TRIM4#
71611APAD, REAR SEAT CUSHION, RH
main71611-15020i¥13,100201710-201909
71612APAD, REAR SEAT CUSHION, LH
main71612-15020i¥16,300201710-201909
71629CCOVER, REAR SEAT CUSHION HINGE, OUTER RH
main71629-15010-C1i201710-201909
BLACK,TRIM4#
71629DCOVER, REAR SEAT CUSHION HINGE, INNER RH
main71639-15010-C1i201710-201909
BLACK,TRIM4#
71629ECOVER, REAR SEAT CUSHION HINGE, INNER LH
main71629-15020-C1i201710-201903
BLACK,TRIM4#
71629FCOVER, REAR SEAT CUSHION HINGE, OUTER LH
main71639-15020-C1i201710-201909
BLACK,TRIM4#
71647PROTECTOR, REAR SEAT CUSHION EDGE
main71647-15010i¥200201710-201909
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-15020i¥24,600201710-201909
main71507-15030i¥24,600201710-201909
71779BPLATE, REAR SEAT
main71779-15010i¥300201710-201909
72345HCAP, SEAT STAND FRAME
main72345-15010i¥390201710-201909
72620FCABLE ASSY, REAR SEAT LOCK, RH
main72620-15010i¥1,250201710-201909
72620GCABLE ASSY, REAR SEAT LOCK, LH
main72620-15020i¥990201710-201909
72690LEVER ASSY, SEAT CUSHION LOCK RELEASE
main72690-28050-C1i201710-201909
BLACK,TRIM4#
sub72690-28050¥1,430
73705BBRACKET SUB-ASSY, CROSS ANCHOR
main73705-15010i¥31,800201710-201902
sub73705-15011¥24,000
main73705-15011i¥24,000201903
main73705-15020i¥30,300201710-201902
sub73705-15021¥22,800
main73705-15021i¥22,800201903
7403
78098ACOVER SUB-ASSY, REAR SEAT FOOTREST, LH
main78098-15010-C0i201903
BLACK,TRIM4#
78987COVER, REAR SEAT FOOTREST, NO.1
main78987-15010-C1i201710-201805
BLACK,TRIM4#
sub78987-15011¥3,350
sub74543-15010¥260
main78987-15011-C1i201805-201903
BLACK,TRIM4#
main78987-15012-C1i201903
BLACK,TRIM4#
78987ACOVER, REAR SEAT FOOTREST, NO.3
main78987-15030-C1i201710-201804
BLACK,TRIM4#
sub78987-15031¥3,850
main78987-15031-C1i201805-201903
BLACK,TRIM4#
main78987-15032-C1i201903
BLACK,TRIM4#
78988ACOVER, REAR SEAT FOOTREST, NO.2
main78988-15010-C1i201710-201909
BLACK,TRIM4#
78988DCOVER, REAR SEAT FOOTREST, NO.4
main78988-15030-C1i201710-201903
BLACK,TRIM4#
sub78988-15031¥2,910
main78988-15031-C1i201903
BLACK,TRIM4#
79956COVER, REAR SEAT LEG BRACKET
main79956-15010-C1i201710-201909
BLACK,TRIM4#
8202
9016740044
main90167-40044¥70
9046313003
main90463-13003¥180
9415180800
main94151-80800¥80
9418560600
main94185-60600¥70

44 parts on this diagram · 3 diagrams in section
