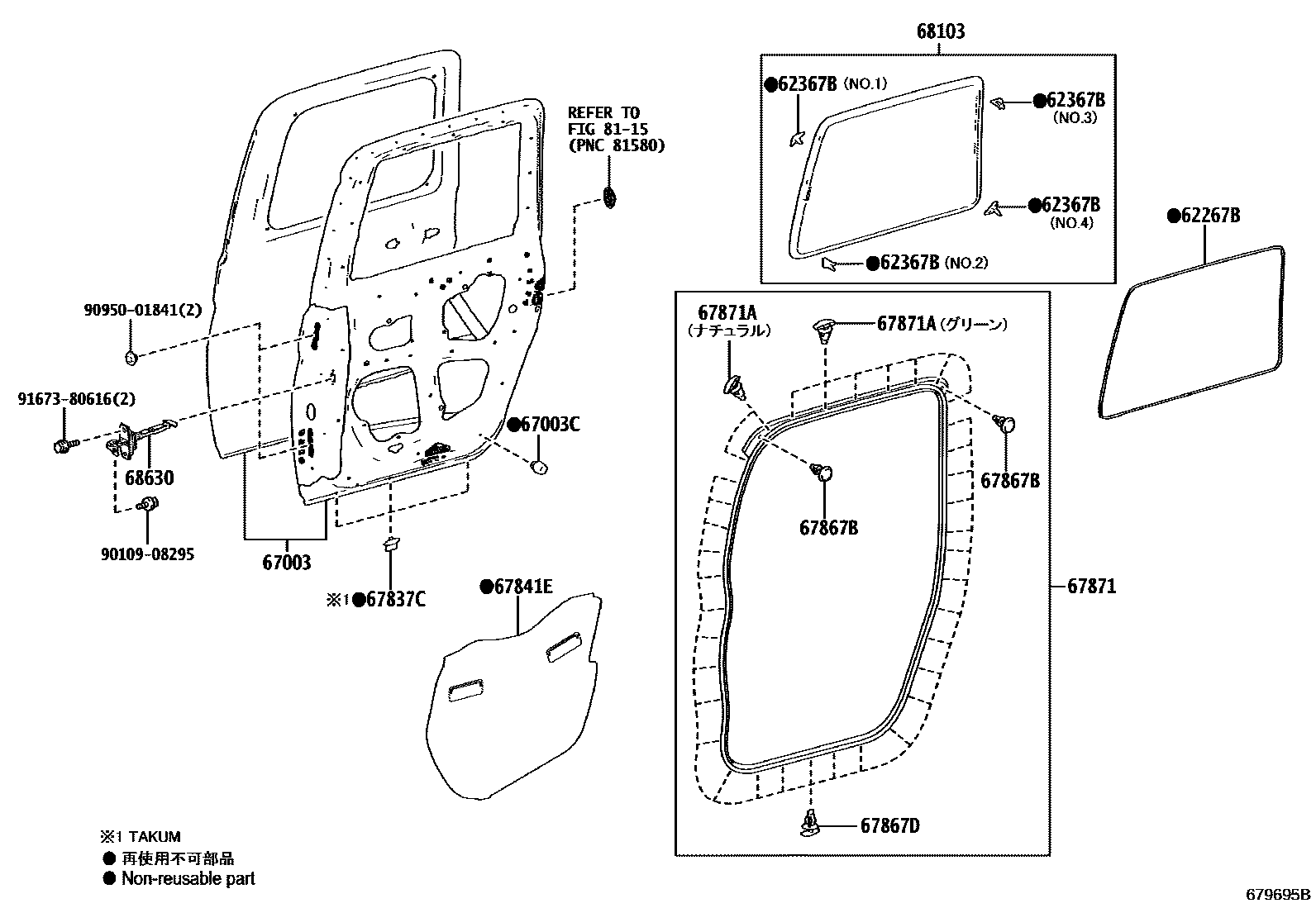

Toyota JPNTAXI — REAR DOOR PANEL & GLASS

0001 1�������(������) 0002 1�������(�������) 0003 1������(������) 0004 1������(�������)

62267BDAM, SIDE WINDOW ADHESIVE

main56117-64010iNTP10¥1,480201710

62367BCLIP, DOOR WINDOW GLASS, REAR RH

main62775-15090iNTP10¥170201710-202101

main62775-15100iNTP10..NAGOM¥170201710-202101

main62775-15110iNTP10¥170201710-202101

main62775-15120iNTP10¥170201710-202101

main62775-15190iNTP10..TAKUM¥170201710-202101

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-15030iNTP10¥41,700201710

67003CCUSHION, REAR DOOR PANEL

main90541-09124iNTP10¥100201710

main90541-10038iNTP10¥100201710

67837CSEAL, REAR DOOR DUST PROOF

main67837-47060iNTP10..TAKUM¥80202111

main67837-48050iNTP10..TAKUM¥80201710-202110

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-15010iNTP10¥610201710

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-06084iNTP10¥80201710

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNTP10¥100201710

67871WEATHERSTRIP, REAR DOOR, RH

main67871-15050iNTP10¥4,550201710

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-52010iNTP10¥100201710

main67867-52040iNTP10¥100201710

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-15010iNTP10..NAGOM¥21,500201710

main68130-15020iNTP10..TAKUM¥36,800201710

68630CHECK ASSY, REAR DOOR

main68630-15010iNTP10¥2,330201710

8115

9010908295

main90109-08295¥80

9095001841

main90950-01841¥110

9167380616

main91673-80616¥60

16 parts on this diagram · 4 diagrams in section
