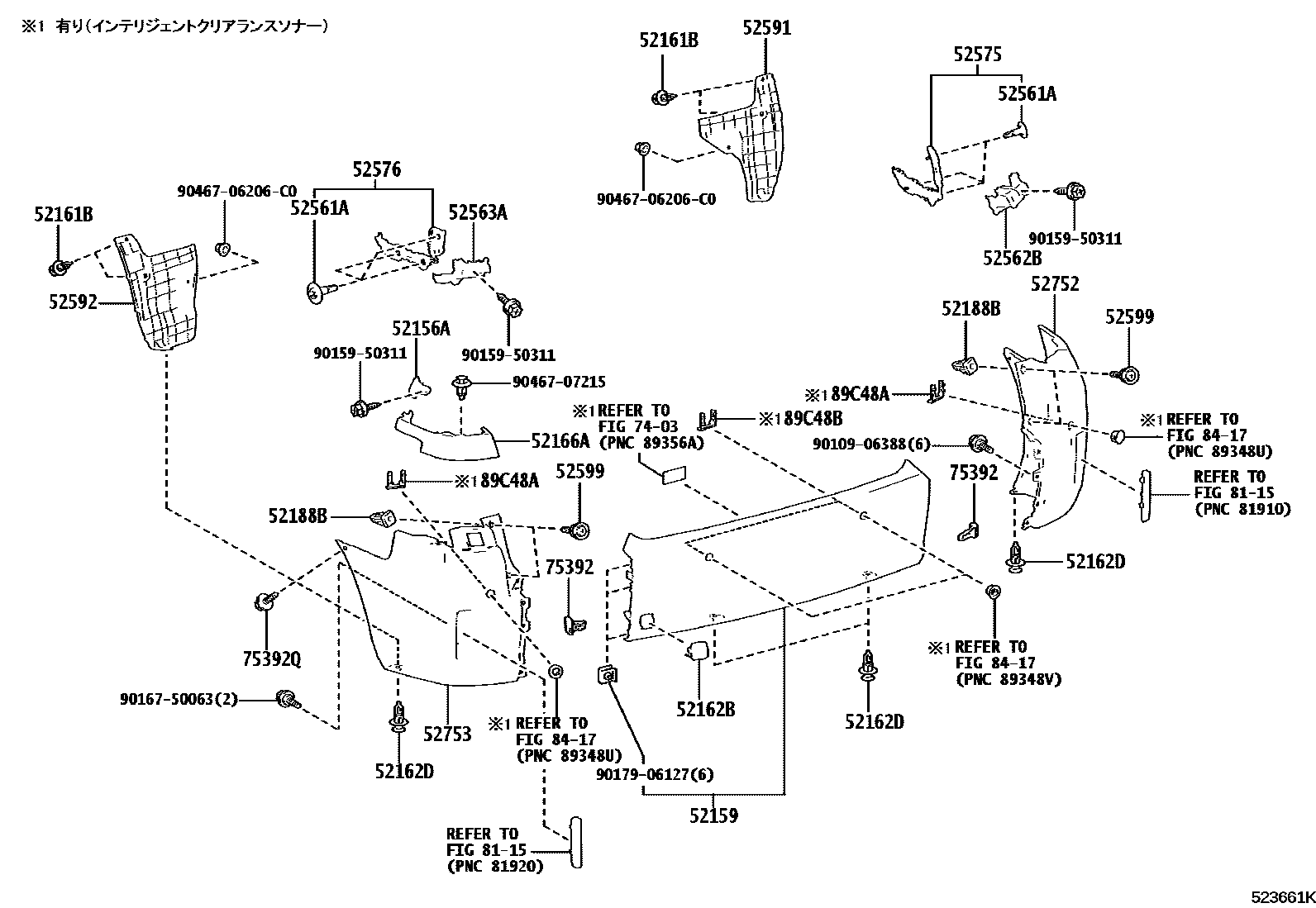

Toyota JPNTAXI — REAR BUMPER & BUMPER STAY

0001 1 0002 1

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-15010iNTP10¥510201710

52159COVER, REAR BUMPER

main52159-15010iNTP10..NAGOM¥14,000201710-202402

main52159-15030-A0iNTP10..TAKUM201710-202402

SUPER WHITE 2,040

main52159-15030-C0iNTP10..TAKUM201710-202402

BLACK,202

main52159-15030-J1iNTP10..TAKUM201710-202402

KOIAI,8Y4

main52159-15900iNTP10..NAGOM¥16,500202402

main52159-15901-A0iNTP10..TAKUM202402

SUPER WHITE 2,040

main52159-15901-C0iNTP10..TAKUM202402

BLACK,202

main52159-15901-J0iNTP10..TAKUM202402

KOIAI,8Y4

52161BPIECE, REAR BUMPER

main52161-16010iNTP10¥120201710

52162BPLATE, REAR BUMPER, NO.1

main52162-15010iNTP10..NAGOM¥370201710

main52162-15020-A0iNTP10..TAKUM201710

SUPER WHITE 2,040

main52162-15020-C0iNTP10..TAKUM201710

BLACK,202

main52162-15020-J1iNTP10..TAKUM201710

KOIAI,8Y4

52162DPIECE, REAR BUMPER

main52161-16010iNTP10¥120201710

52166ACOVER, REAR BUMPER, UPR LH

main52166-15030-A0iNTP10..TAKUM201710

SUPER WHITE 2,040

main52166-15030-C0iNTP10..TAKUM201710

BLACK,202

main52166-15030-J1iNTP10..TAKUM201710

KOIAI,8Y4

main52166-15040iNTP10..NAGOM¥2,190201710

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040iNTP10¥80201710

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237iNTP10¥80201710

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-15010iNTP10¥2,660201710

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-15010iNTP10¥2,450201710

52575RETAINER, REAR BUMPER SIDE, RH

main52575-15010iNTP10¥2,450201710

52576RETAINER, REAR BUMPER SIDE, LH

main52576-15010iNTP10¥2,330201710

52591SEAL, REAR BUMPER SIDE, RH

main52591-15010iNTP10¥1,380201710

52592SEAL, REAR BUMPER SIDE, LH

main52592-15010iNTP10¥1,520201710

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iNTP10¥130201710

52752MOULDING, REAR BUMPER SIDE, RH

main52752-15010iNTP10..NAGOM¥11,400201710-202402

main52752-15030-A0iNTP10..TAKUM201710-202402

SUPER WHITE 2,040

main52752-15030-C0iNTP10..TAKUM201710-202402

BLACK,202

main52752-15030-J1iNTP10..TAKUM201710-202402

KOIAI,8Y4

main52752-15900iNTP10..NAGOM¥12,000202402

main52752-15901-A0iNTP10..TAKUM202402

SUPER WHITE 2,040

main52752-15901-C0iNTP10..TAKUM202402

BLACK,202

main52752-15901-J0iNTP10..TAKUM202402

KOIAI,8Y4

52753MOULDING, REAR BUMPER SIDE, LH

main52753-15010iNTP10..NAGOM¥11,400201710-202402

main52753-15030-A0iNTP10..TAKUM201710-202402

SUPER WHITE 2,040

main52753-15030-C0iNTP10..TAKUM201710-202402

BLACK,202

main52753-15030-J1iNTP10..TAKUM201710-202402

KOIAI,8Y4

main52753-15900iNTP10..NAGOM¥12,000202402

main52753-15901-A0iNTP10..TAKUM202402

SUPER WHITE 2,040

main52753-15901-C0iNTP10..TAKUM202402

BLACK,202

main52753-15901-J0iNTP10..TAKUM202402

KOIAI,8Y4

7403

75392RETAINER, OUTSIDE MOULDING

main75392-35220iNTP10¥130201710

75392QRETAINER, OUTSIDE MOULDING, NO.2

main75392-42030iNTP10¥280201710

8115

8417

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-30410-A1iNTP10..TAKUM202402

main89348-30410-C0iNTP10..TAKUM202402

main89348-30410-C2iNTP10..NAGOM202402

main89348-30420-A1iNTP10..TAKUM202402

main89348-30420-C0iNTP10..TAKUM202402

main89348-30420-C2iNTP10..NAGOM202402

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-78120-A4iNTP10..TAKUM202402

SUPER WHITE 2,040

main89348-78120-C2iNTP10..NAGOM202402

DUMMY-MAT BLACK

main89348-78120-C3iNTP10..TAKUM202402

BLACK,202 ,8Y4

9010906388

main90109-06388¥70

9015950311

main90159-50311¥70

9016750063

main90167-50063¥60

9017906127

main90179-06127¥90

9046706206C0

main90467-06206C0

9046707215

main90467-07215¥80

30 parts on this diagram · 2 diagrams in section
