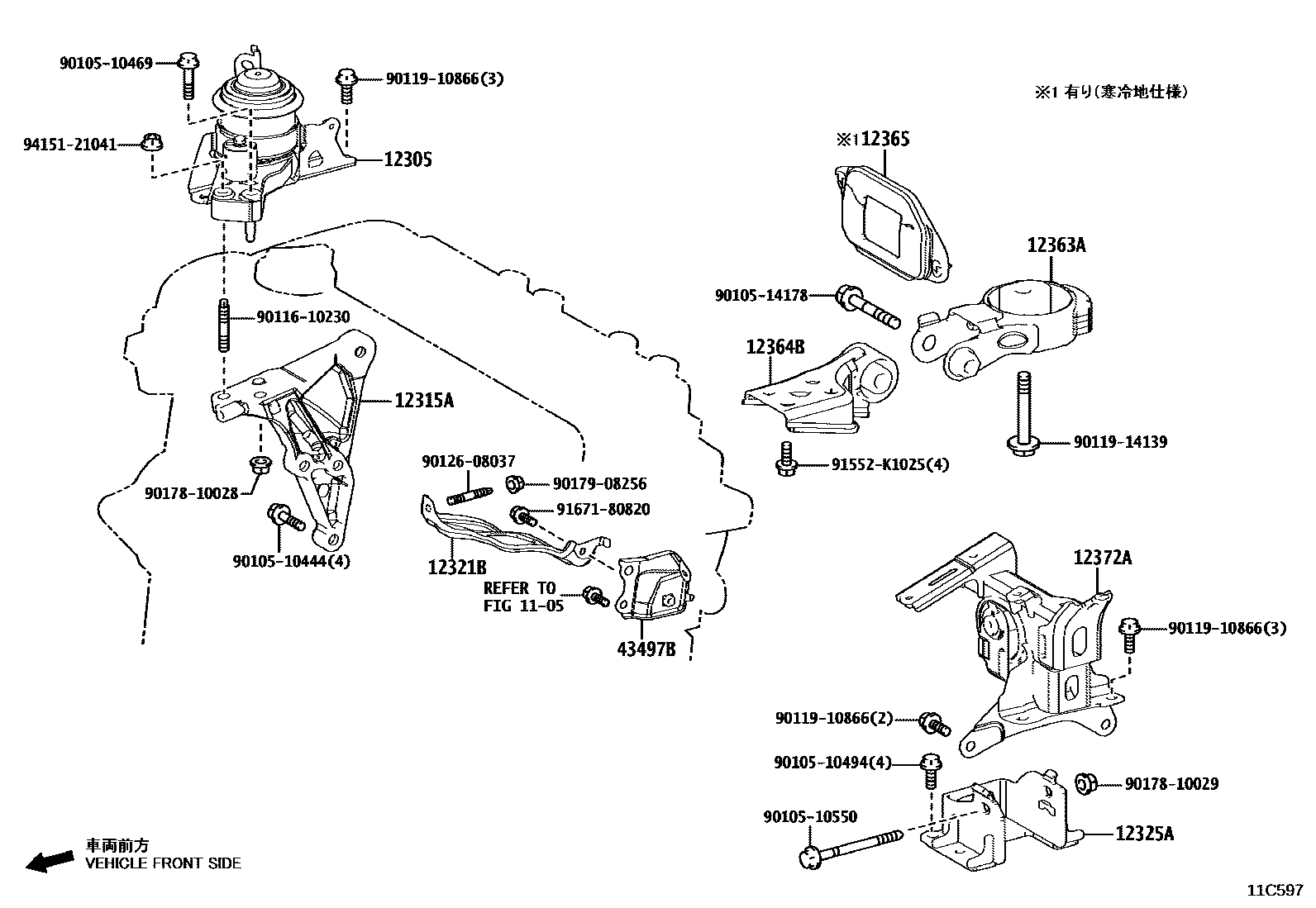

Toyota JPNTAXI — MOUNTING

1105

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21570i1NZFXP..NTP10¥12,000201710

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-21060i1NZFXP..NTP10¥3,440201710

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43498-52090i1NZFXP..NTP10¥1,380201710

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21290i1NZFXP..NTP10¥2,630201710

12363AROD, ENGINE MOVING CONTROL

main12363-21170i1NZFXP..NTP10¥4,460201710

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-21150i1NZFXP..NTP10¥3,410201710

12365COVER, ENGINE MOVING CONTROL ROD

main12365-21010¥810

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21400i1NZFXP..NTP10¥7,400201710

43497BBRACKET, DRIVE SHAFT HEAT INSULATOR

main43497-52050iNTP10¥760201710

9010510444

main90105-10444¥160

9010510469

main90105-10469¥120

9010510494

main90105-10494¥100

9010510550

main90105-10550¥240

9010514178

main90105-14178¥310

9011610230

main90116-10230¥190

9011910866

main90119-10866¥100

9011914139

main90119-14139¥360

9012608037

main90126-08037¥340

9017810028

main90178-10028¥120

9017810029

main90178-10029¥100

9017908256

main90179-08256¥80

91552K1025

main91552-K1025¥100

9167180820

main91671-80820¥80

9415121041

main94151-21041¥100

25 parts on this diagram · 1 diagram in section
