Toyota JPNTAXI — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-28130iNTP10¥8,200201710-201711

sub87810-28140¥5,100

main87810-28140iNTP10¥5,100201712

87904SPRING SUB-ASSY, OUTER MIRROR, RH

main87904-15010iNTP10¥1,440201710

87905BSPRING SUB-ASSY, OUTER MIRROR, LH

main87905-15010iNTP10¥1,440201710

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87901-15010iNTP10..NAGOM¥13,700201710-202402

sub87901-15070¥12,400

main87901-15020iNTP10..TAKUM¥14,900201710-202402

main87901-15050iNTP10..TAKUM¥13,500202402

���b�L

main87901-15070iNTP10..NAGOM¥12,400202402

�h���s�v

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-15010iNTP10¥1,410201710

87915COVER, OUTER MIRROR, RH

main8791A-15010iNTP10..NAGOM¥1,980201710

main8791A-15020iNTP10..TAKUM¥2,790201710

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-15010iNTP10..NAGOM¥2,330201710

main87915-15010iNTP10..TAKUM¥2,330202402

main87915-15020iNTP10..TAKUM¥2,820201710-202402

87917CSCREW, OUTER MIRROR

main87917-15010iNTP10¥50201710

8791BHANGER SUB-ASSY, OUTER MIRROR, RH

main8791B-15010iNTP10¥540201710

87931OUTER MIRROR, RH

main87931-15010iNTP10¥2,280201710-202402

sub87931-15070¥2,070

main87931-15070iNTP10¥2,070202402

87931BFRAME, OUTER MIRROR, RH

main87931-15020iNTP10¥3,220201710

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87906-15010iNTP10..NAGOM¥13,700201710-202402

sub87906-15070¥12,400

main87906-15020iNTP10..TAKUM¥14,900201710-202402

main87906-15050iNTP10..TAKUM¥13,500202402

���b�L

main87906-15070iNTP10..NAGOM¥12,400202402

�h���s�v

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-15010iNTP10¥1,410201710

87945COVER, OUTER MIRROR, LH

main8794A-15010iNTP10..NAGOM¥1,980201710

main8794A-15020iNTP10..TAKUM¥2,790201710

87945CCOVER, OUTER MIRROR, LOWER LH

main87945-15010iNTP10..NAGOM¥2,260201710

main87945-15010iNTP10..TAKUM¥2,260202402

main87945-15020iNTP10..TAKUM¥2,820201710-202402

8794BHANGER SUB-ASSY, OUTER MIRROR, LH

main8794B-15010iNTP10¥540201710

87961MIRROR OUTER, LH

main87961-15010iNTP10¥2,280201710-202402

sub87961-15070¥2,070

main87961-15070iNTP10¥2,070202402

87961AFRAME, OUTER MIRROR, LH

main87961-15020iNTP10¥3,220201710

87967HOLDER, MIRROR, OUTER RH

main87967-15010iNTP10..NAGOM¥2,390201710

main87967-15010iNTP10..TAKUM¥2,390202402

main87967-15020iNTP10..TAKUM¥3,010201710-202402

87968HOLDER, MIRROR, OUTER LH

main87968-15010iNTP10..TAKUM¥2,400202402

main87968-15010iNTP10..NAGOM¥2,400201710

main87968-15020iNTP10..TAKUM¥3,030201710-202402

9017906146

main90179-06146¥100

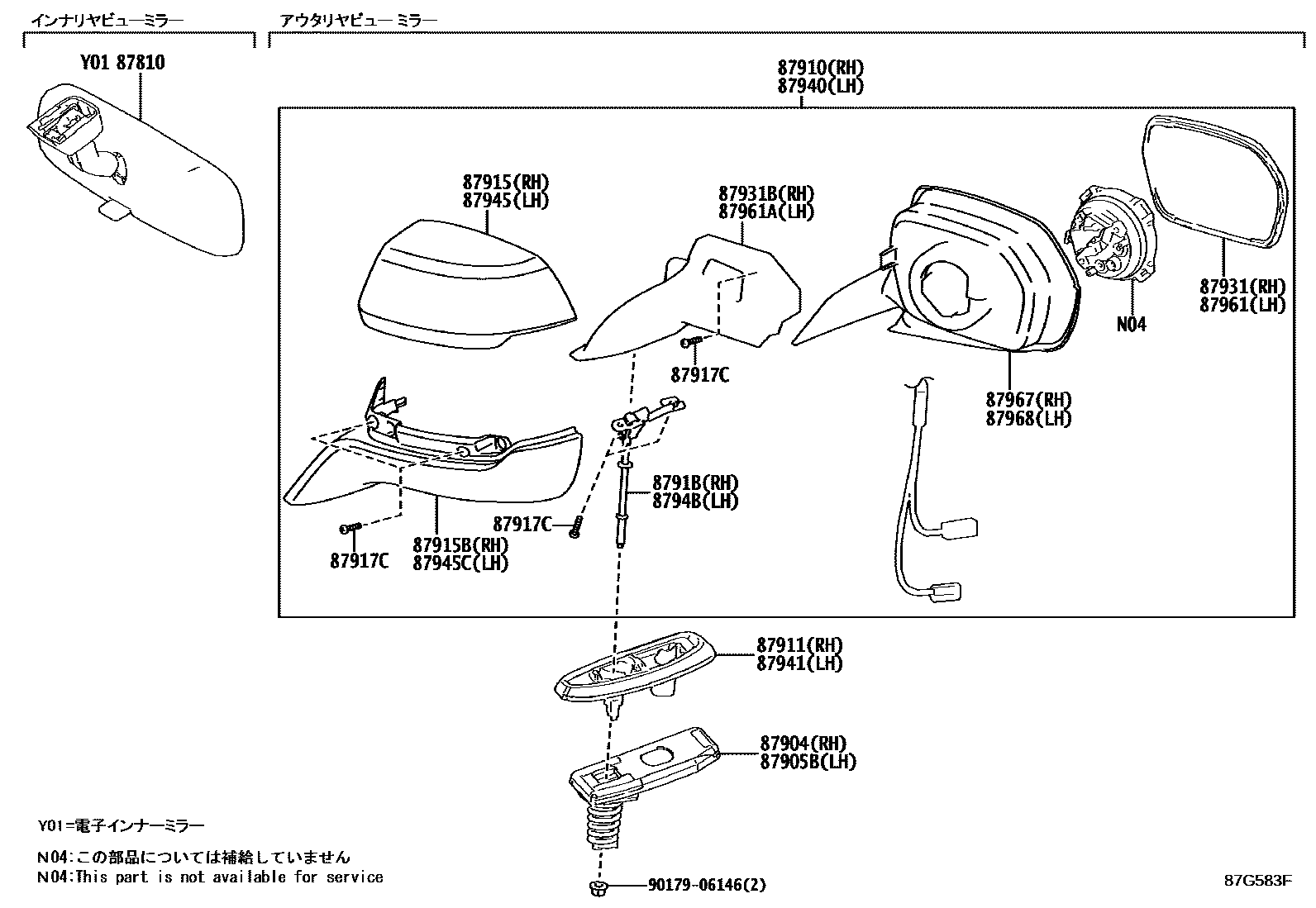

21 parts on this diagram · 1 diagram in section
