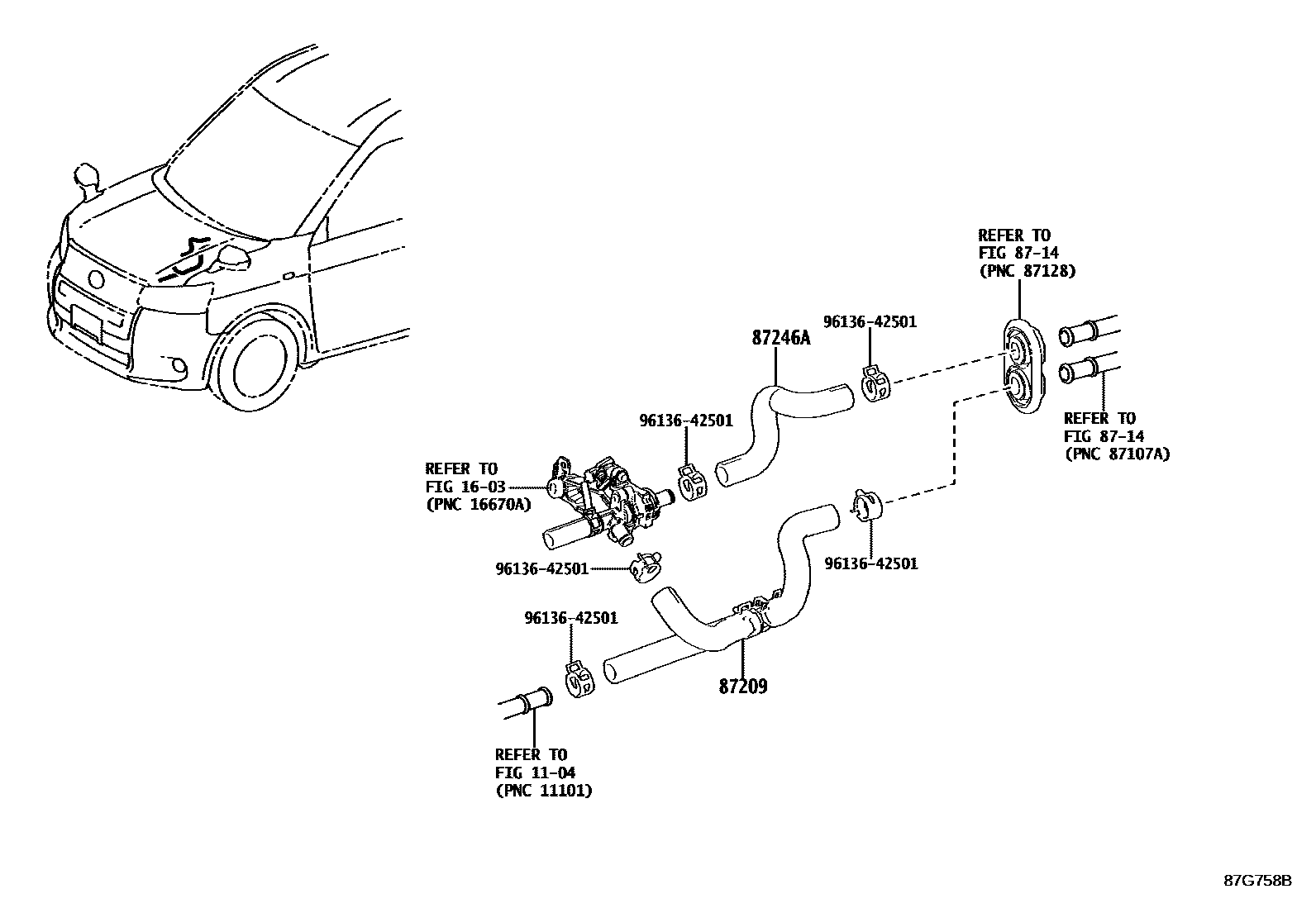

Toyota JPNTAXI — HEATING & AIR CONDITIONING - WATER PIPING

1104

1603

8714

87209HOSE SUB-ASSY, WATER

main87209-15010iNTP10¥2,560201710

87246AHOSE, HEATER WATER, OUTLET A

main87245-15020iNTP10¥630201710

9613642501

main96136-42501¥200

6 parts on this diagram · 1 diagram in section
