Toyota JPNTAXI — HEATING & AIR CONDITIONING - COMPRESSOR

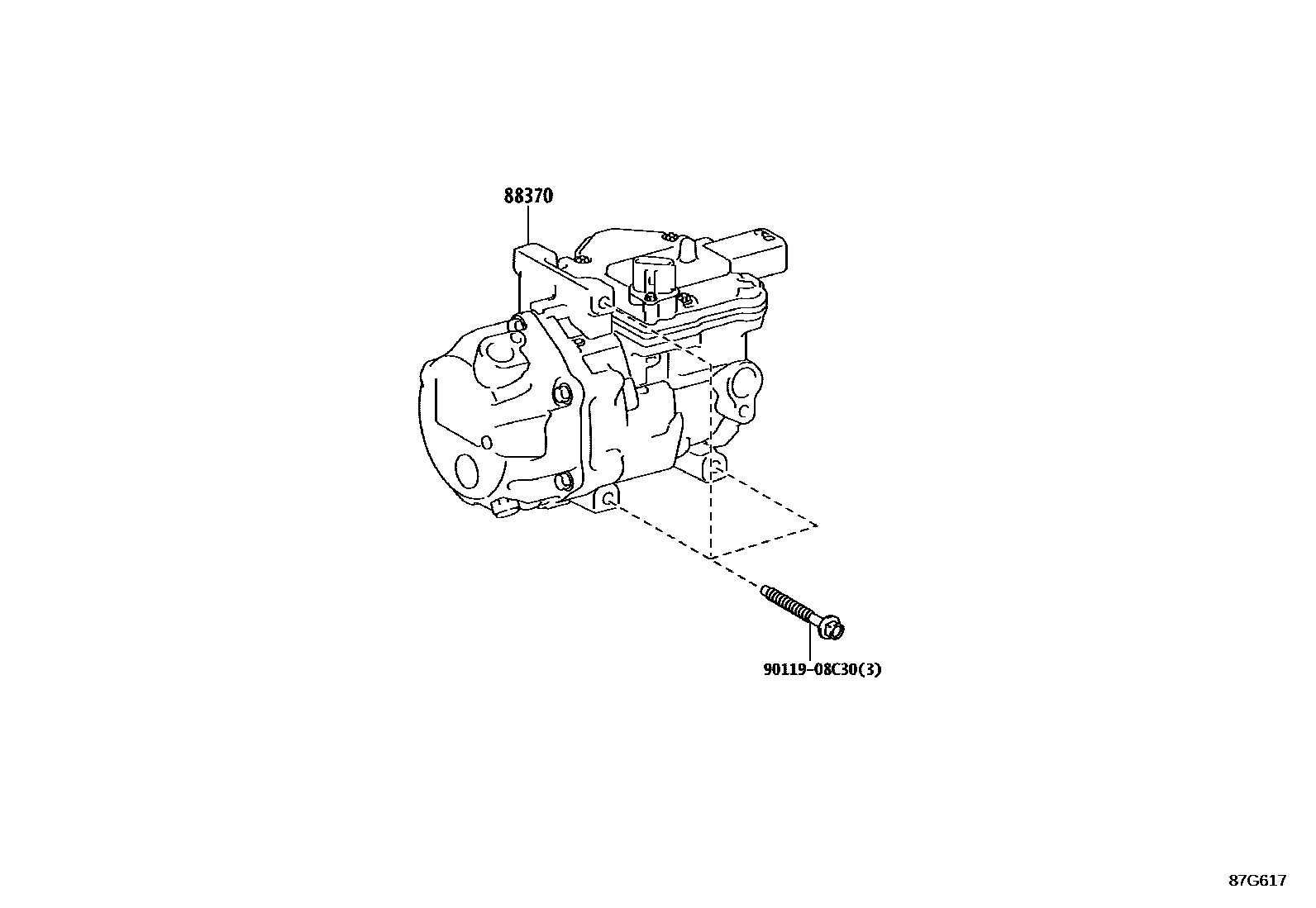

Parts diagram

88370COMPRESSOR ASSY, W/MOTOR

main88370-15010i201710

9011908C30

main90119-08C30¥210

2 parts on this diagram · 1 diagram in section
